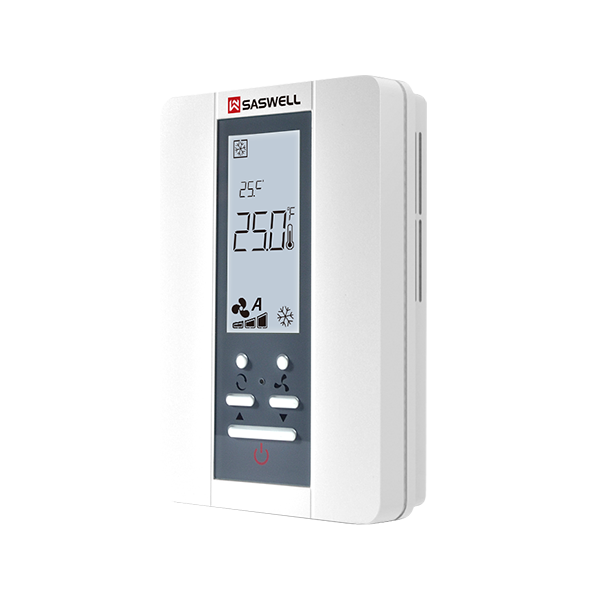

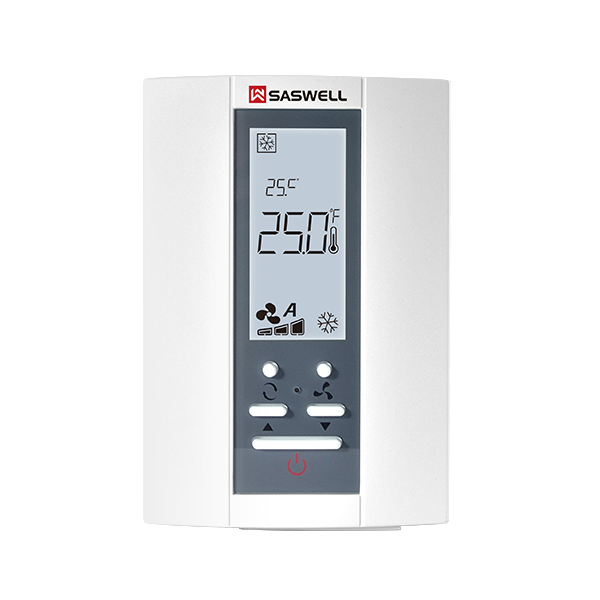

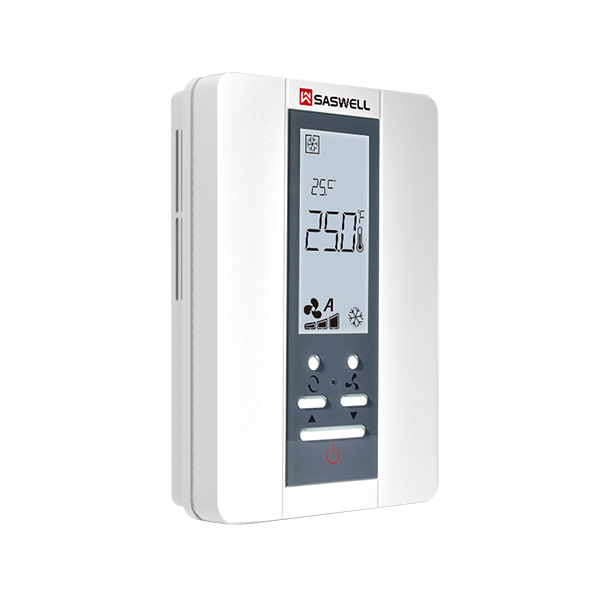

FAN COIL THERMOSTAT T15FCT

T15FCT

FAN COIL THERMOSTAT T15FCT

Get a quote

New vertical design, crosswise installation or vertical installation

Auto fan with adjustable 3-fan speed

External sensor, Remote control

2 pipe or 4 pipe heating and cooling

Permanent user setting retention during power loss, no batteries are required

RS485 communication function

Home Product Commercial Thermostats Fan Coil Thermostats

Product Description

Application: Heat/cool, 3 speed fan, 2 pipe fan coil unit

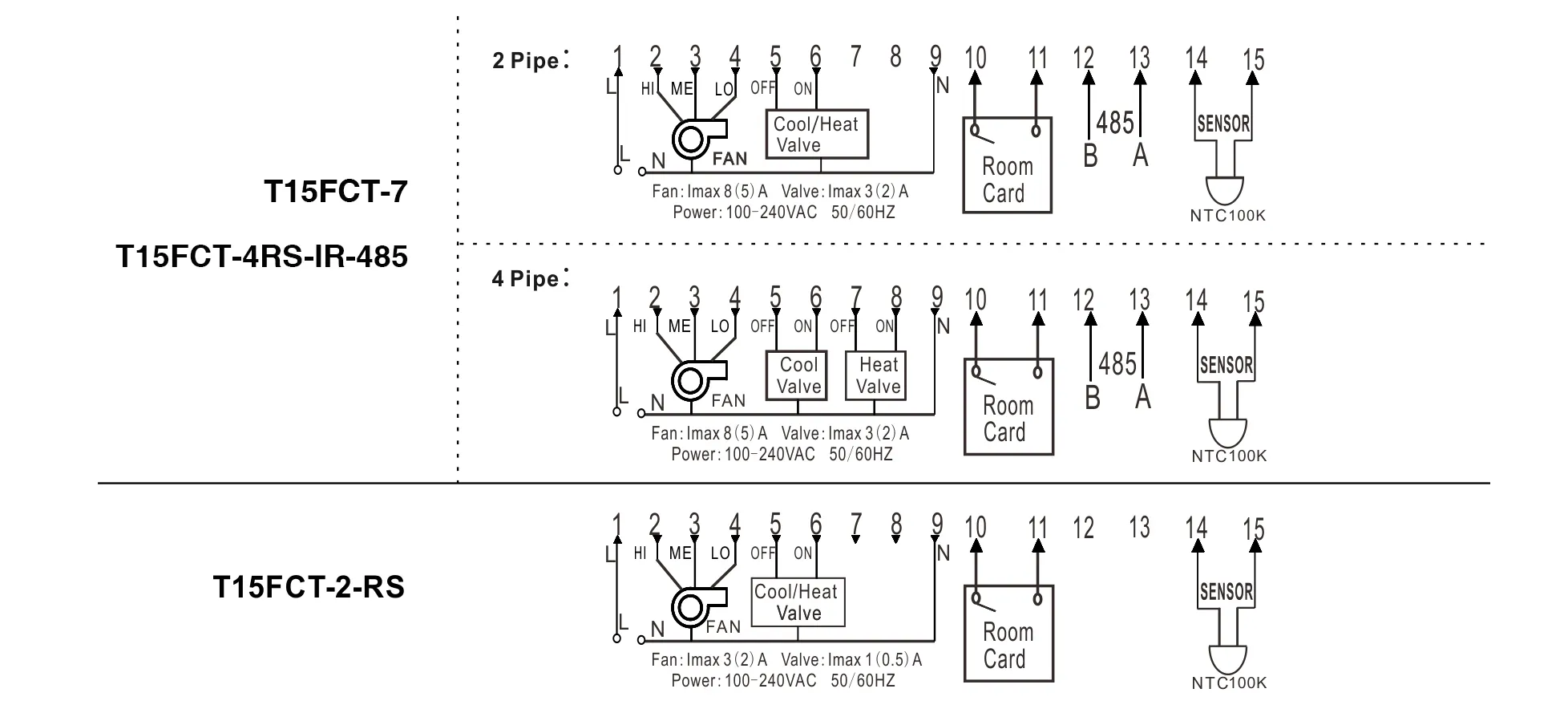

Product Selector

Model No.

Heat/cool

Cool only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

T15FCT-7

√

2/4

3

√

√

√

220VAC

download

T15FCT-4RS-IR-485

√

2/4

3

√

√

√

220VAC

download

T15FCT-2-RS

√

2

3

√

√

220VAC

download

Product Parameters

Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Accuracy: ±0.5°C(1 °F)
Set point Temperature Range: 5℃to 50℃C
Dimensions: 120.9mm×82.9mm×28mm

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
