Water underfloor heating thermostat with heat pump control SAS931X manufacturer,China Water underfloor heating thermostat with heat pump control SAS931X

SAS931XWCH

Water Underfloor Heating System With Heat Pump Control

Get a quote

Meet cooling control requirements of 95% common heat pump systems.

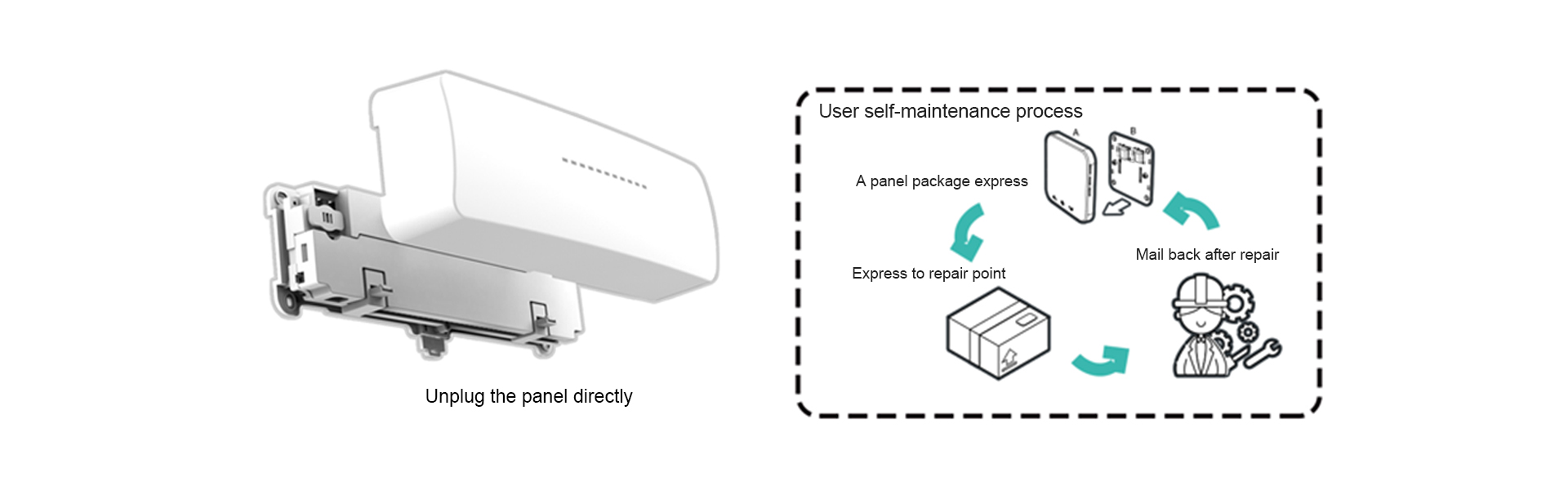

Magnetic panel design, flexible disassembly

Only master control network can realize APP room temperature control

Cover heating control requirements of the water-floor heating system and boiler system

Home Product Residential Thermostats Hydronic Thermostats

Product Feature

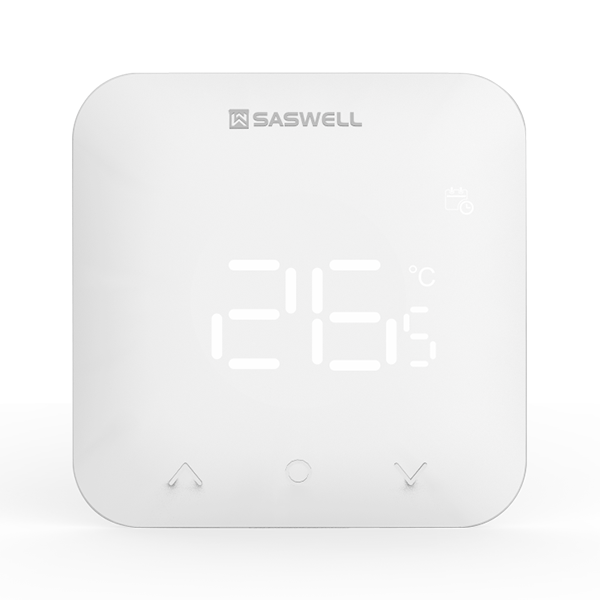

Water underfloor heating thermostat with heat pump control SAS931X. Auto, cool and heat mode suitable for heat pump system.

Product Selector

Model No.

Heat/cool

Heat only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS931WCH-XT-WIFI(TY)

√

12-18V(no polarity)

download

Product Parameters

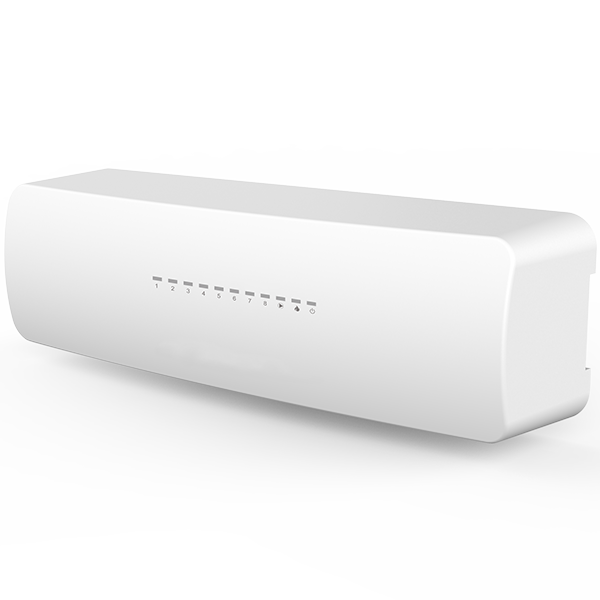

Wiring control centre (SCU211CH-BUS)

Power source: 100-240VAC 50 / 60Hz (maximum current 10A)

Storage environment temperature and humidity: -10 ~ 60°C, 0 ~ 90% RH (non-condensing)

Working environment temperature and humidity: 0 ~ 50 °C, 0 ~ 80% RH (non-condensing)

Size: 298 X 88 X 66mm

IP rating: IP40

Thermostat（SAS931X）

Power supply and signal input: DC12 ~ 18V carrier non-polarity input

(power supply wiring control centre, maximum current 100mA)

Storage environment temperature and humidity: -10 ~ 60°C, 0 ~ 90% RH (non-condensing)

Working environment temperature and humidity: 0 ~ 50°C, 0 ~ 80% RH (non-condensing)

Temperature display range: 0 ~ 50°C

Display accuracy: 0.1°C

Size: 86x86x13mm

Protection level: IP21

WIFI antenna emission frequency(master controller): 2.4GMHz

WIFI wireless transmission distance(master controller): 60M in the open area

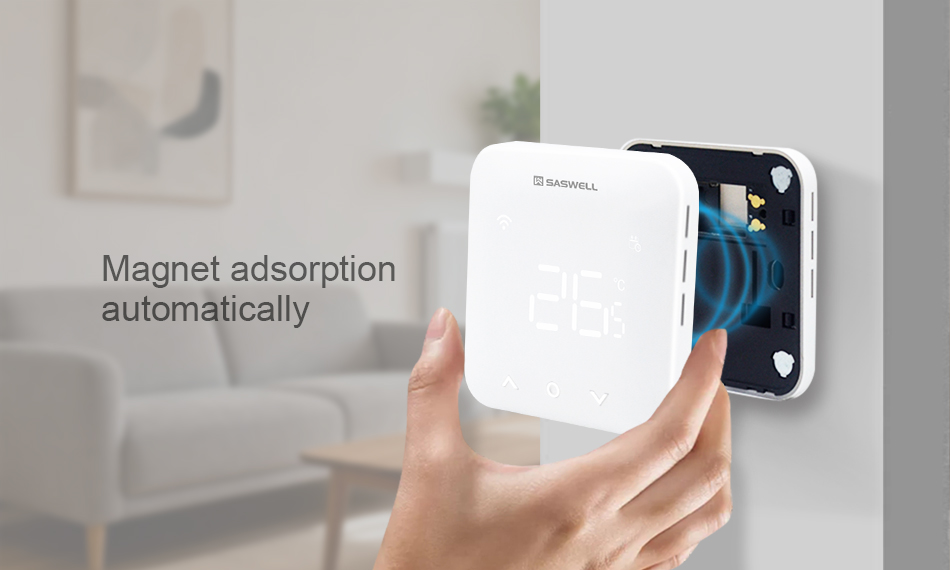

Easy to install

The thermostat uses a magnetic mounting method, requiring no tools and allowing for quick installation.
Voice remote control

Control your home temperature just with your voice.

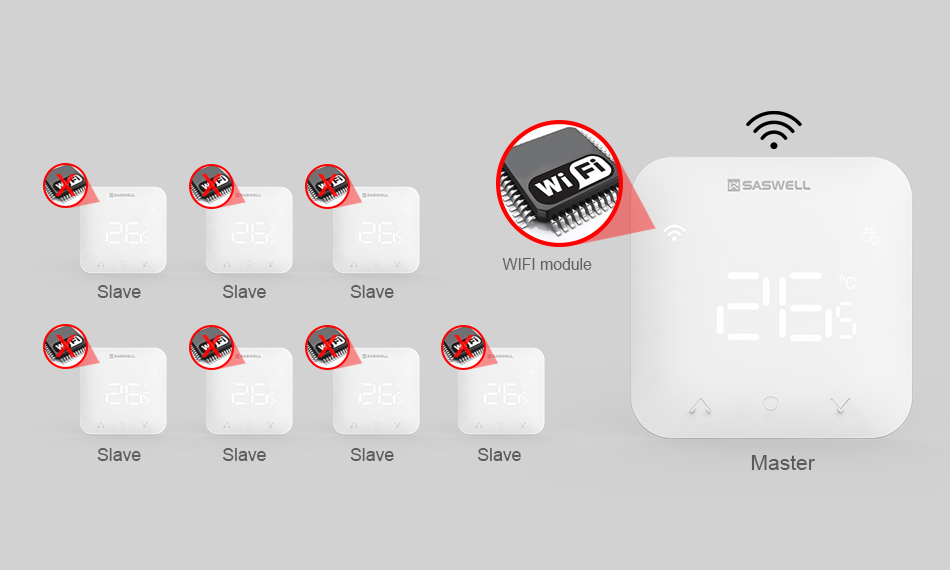

Easy commissioning with WIFI

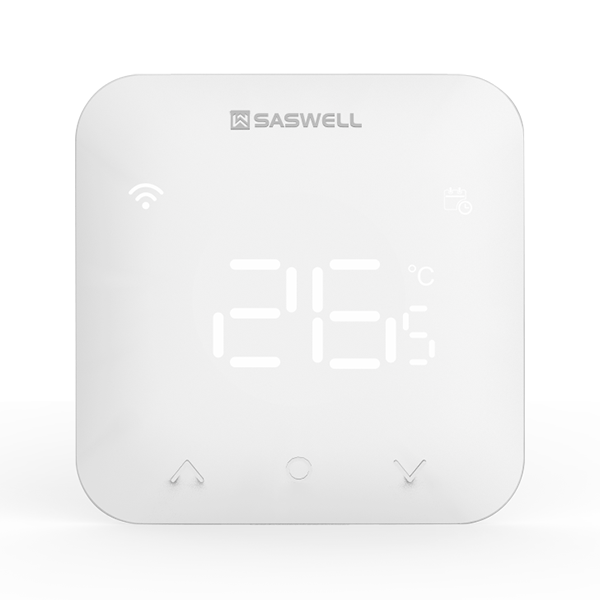

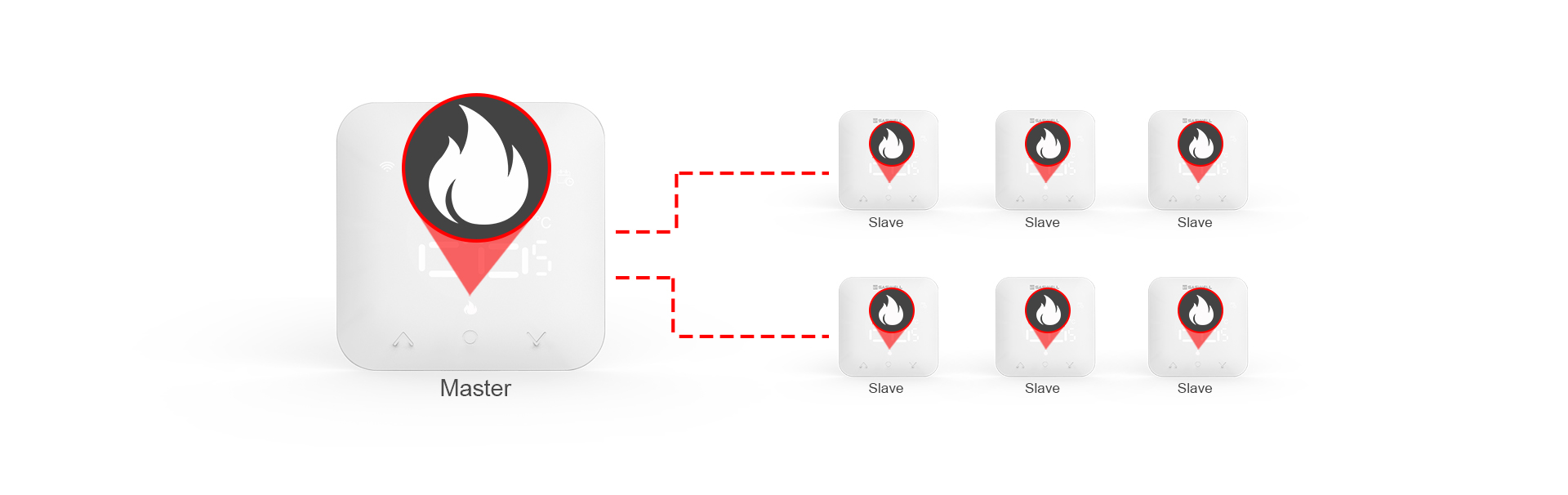

Only master thermostat has WIFI module inside. Once end user commission the master thermostat with WIFI, all slave thermostats can access to WIFI as well.

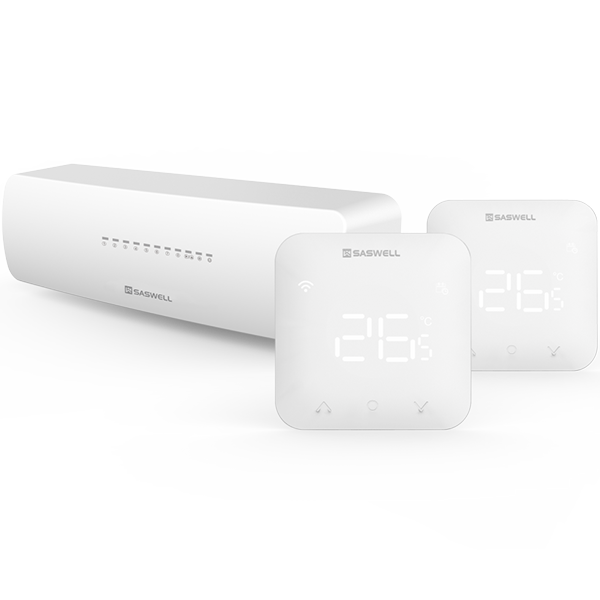

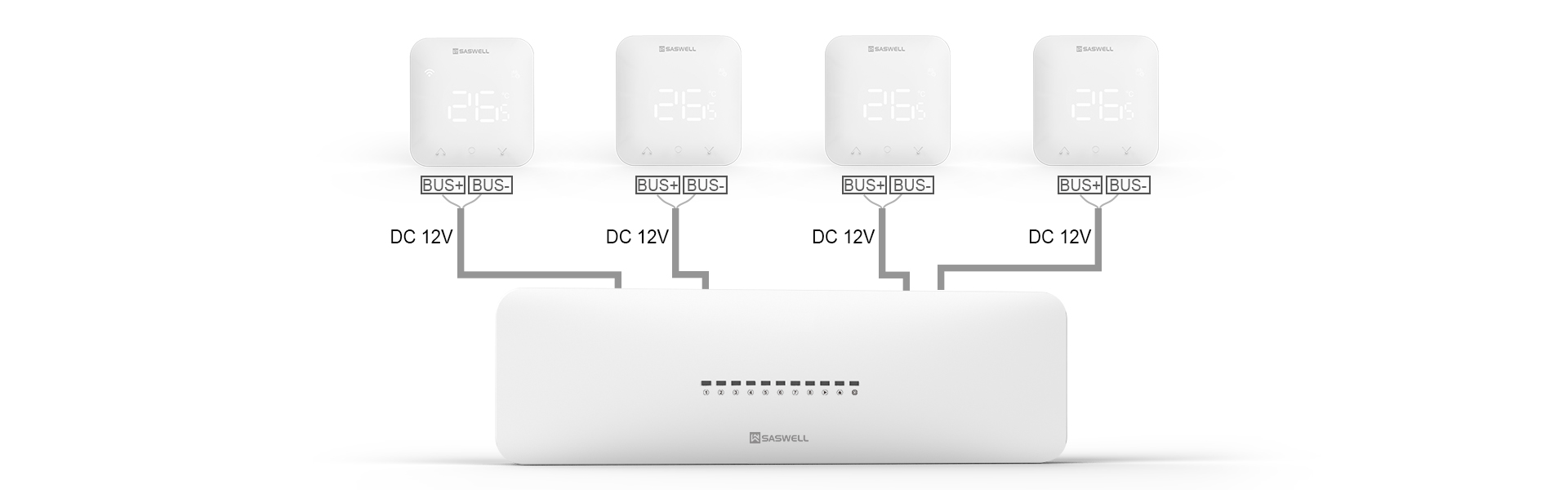

Connection between Thermostat and Wiring Center

The Wiring Center is powered by Line voltage and the thermostat is powered by 12VAC low-voltage which comes from the wiring center. Only 2 wires are needed to connect the wiring center and the thermostat. The 2 wires are no polarity.

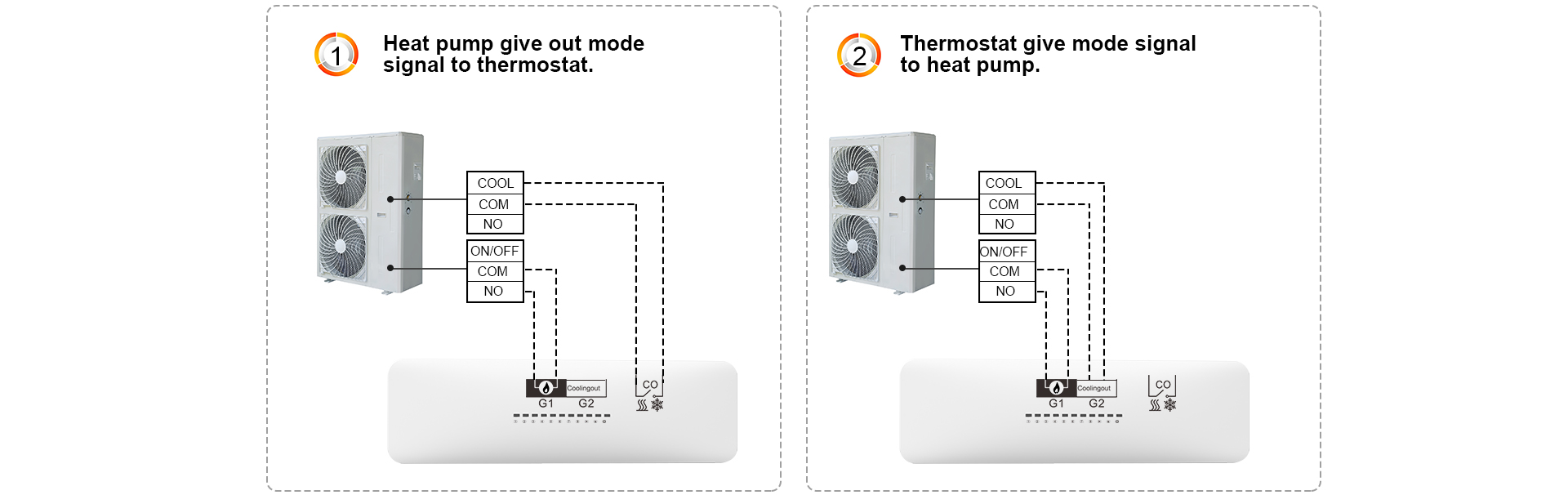

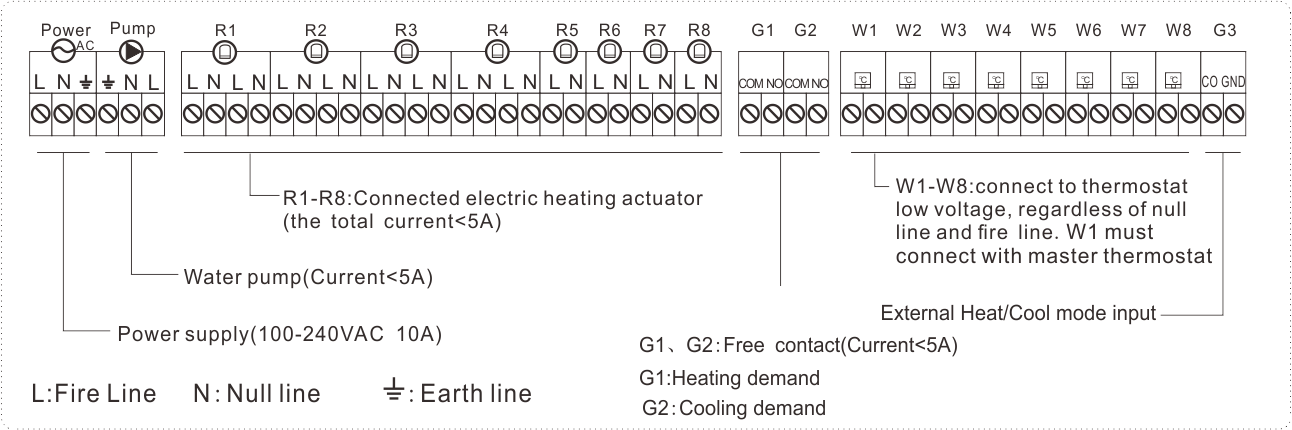

Functional Wiring Diagram

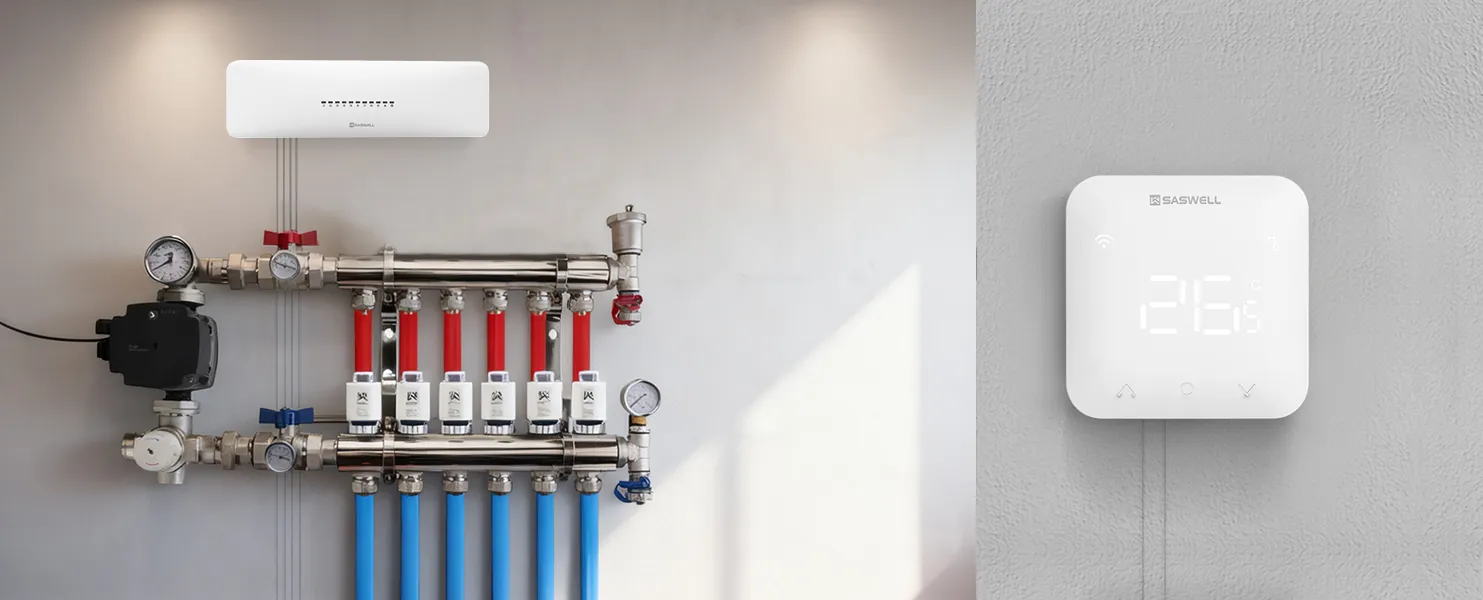

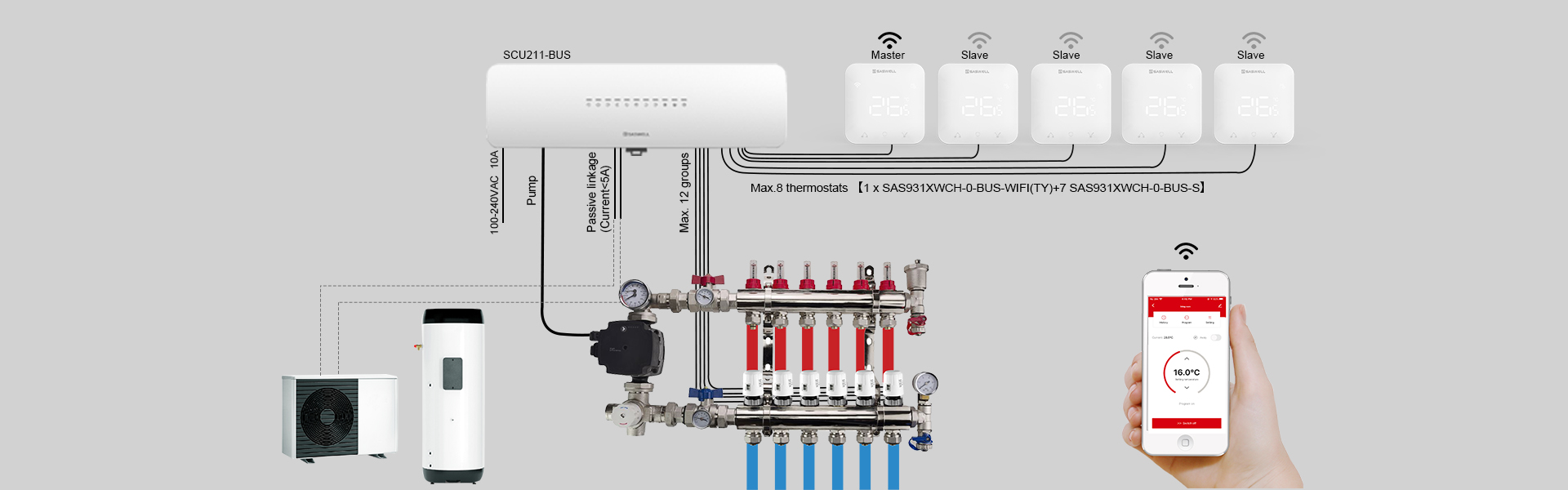

Cover heating control requirements of the water-floor heating system and boiler system

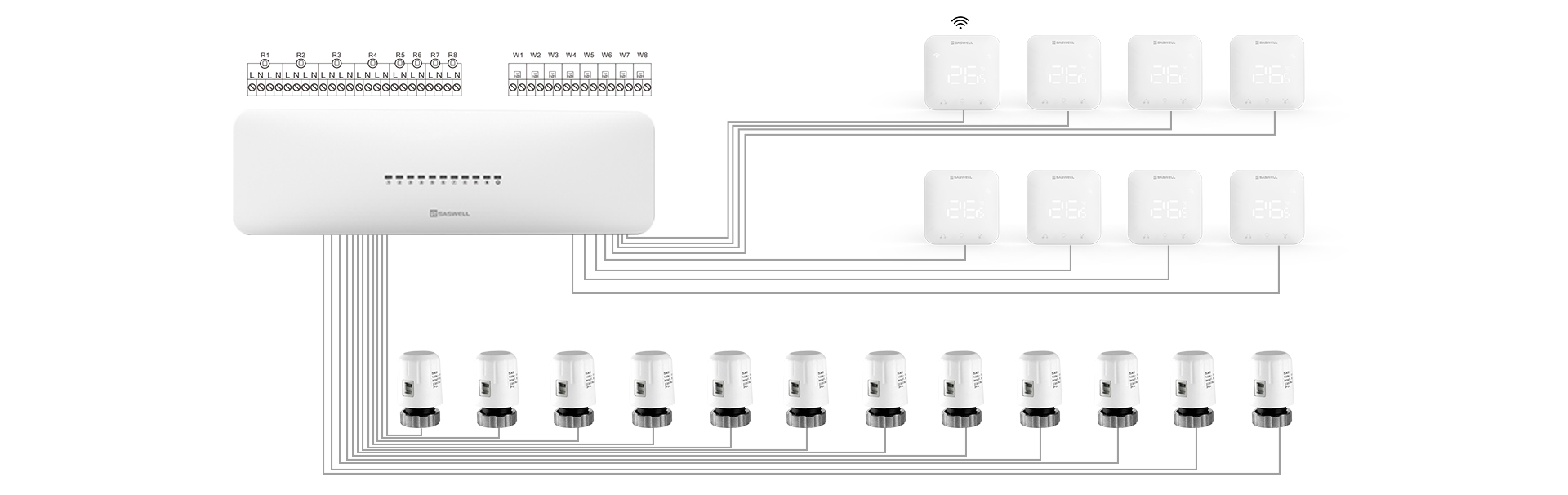

Contrlo more with wiring center

One wiring center can wiring Maximum 8 thermostats. Each of the first 4 thermostat can control 2 Actuators, 8 thermostat can control maximum 12 Loops.
