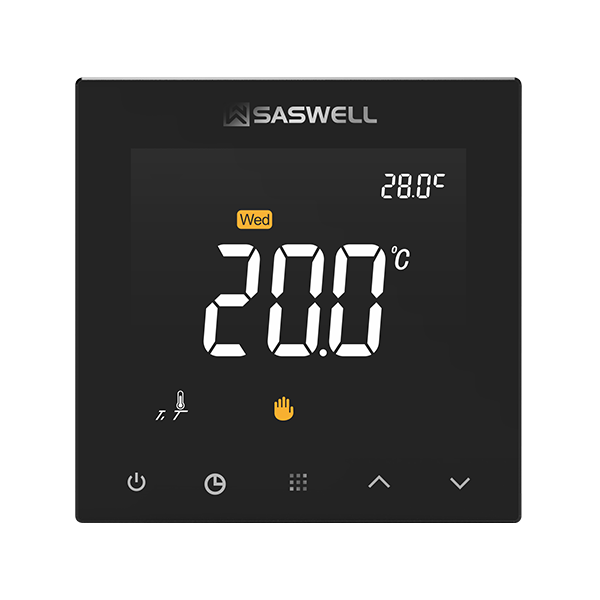

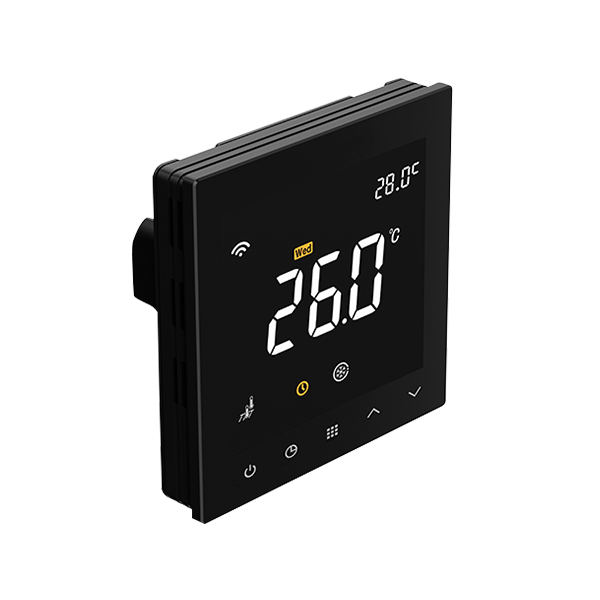

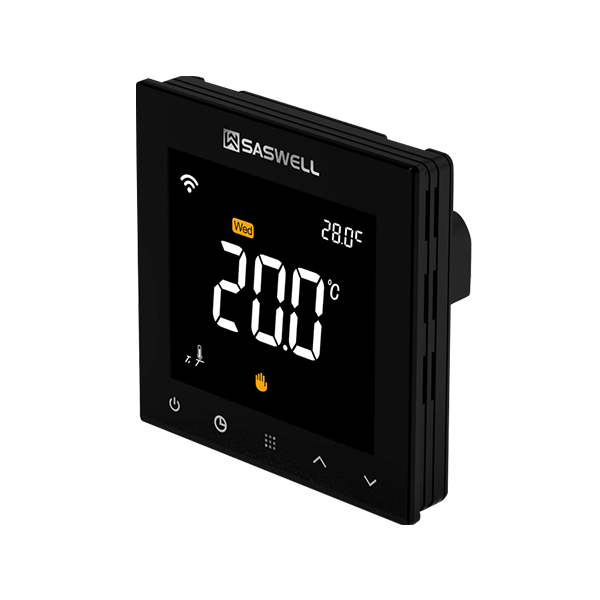

SAS922WHL
WIFI wired thermostat
Get a quote

4-inch high-definition color display screen with touch buttons for easy operation

Large diameter terminal for easy wiring and connection

Fits domestic 86-type, UK, and EU round boxes

Support external sensors for precise temperature control

HomeProductResidentialThermostatsHydronic Thermostats
Product Feature

 Thermostat for Water Floor Heating is a programmable thermostat designed for water floor heating system.



Product Selector
Model No. Heat/cool Heat only Pipe Passive and linkage output Programmable Window card Room card External Sensor Modbus RTU WIFI Power Manual
SAS922WHL-7W-S
√
√
 √

√

220VAC download
SAS922WHL-7W-WIFI(TY)
√
√
 √

√
√ 220VAC download
Product Parameters

Power source: 100-240VAC50/60Hz

Maximum load electric current: 3A/250VAC

Room temperature setting range: 5℃- 35℃

External sensor control range : 5 ℃-70 ℃ (not standard)

Accuracy: 0.1℃

Working environment temperature: 0℃- 50℃

The storage temperature: -10℃- 60℃

Dimensions: 88mm X 88mm X 13mm

External sensor: NTC100K or NTC10K (optional)



FAQ
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
What is the MOQ if I want to place the order to you ?
You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
