Under Floor Heating Wireless System Compatible With Both Boilers And Heat Pumps manufacturer,China Under Floor Heating Wireless System Compatible With Both Boilers And Heat Pumps

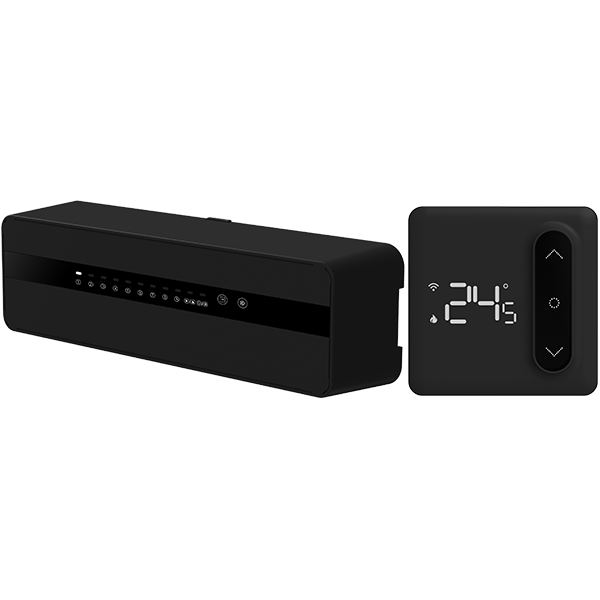

SAS936B+SCU217

Wireless UFH System Compatible With Heat Pump

Get a quote

Meet cooling control requirements of 95% common heat pump systems

Cover heating control requirements for boiler and floor heating systems

Flexible networking for single and multiple floors

Connect with maximum 8 wireless thermostats and control up to 8 zone loops

Equipped with modbus protocol, can be integrated with BMS systems

Supports room-by-room temperature control

Home Product Residential Thermostats Hydronic Thermostats

Product Feature

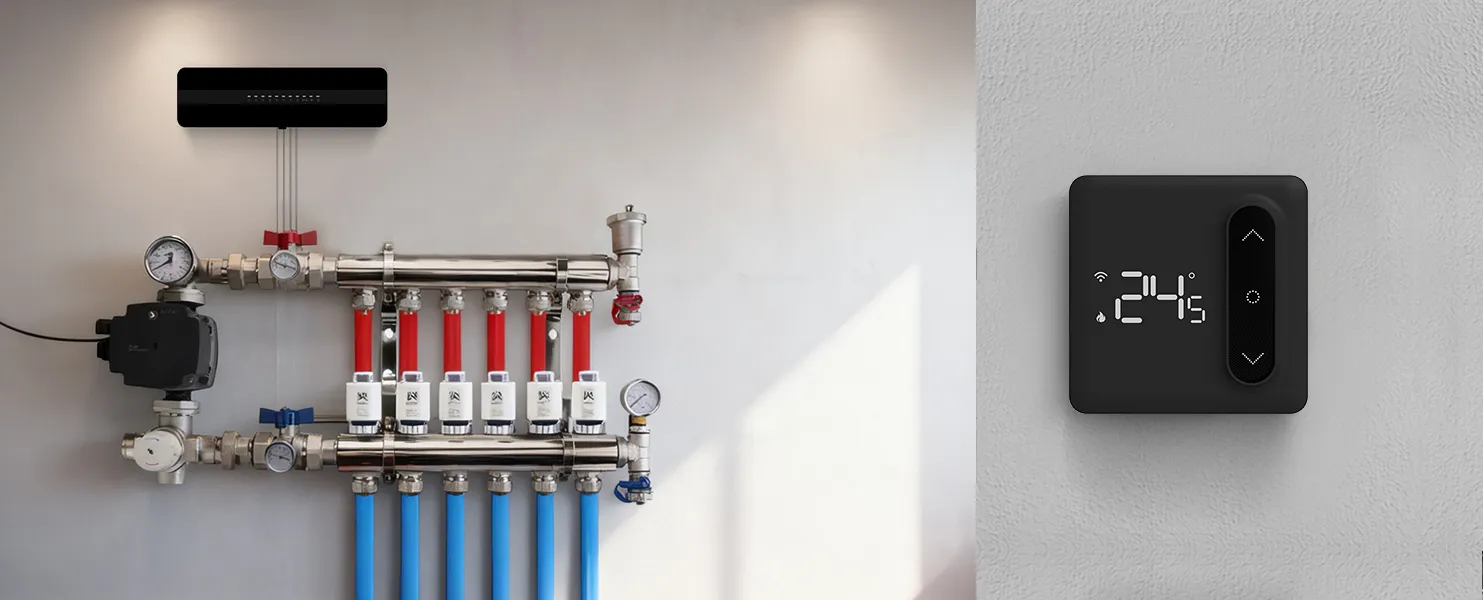

Our underfloor heating system seamlessly integrates with both boilers and heat pumps, providing consistent and efficient heat distribution. It offers reliable performance and easy installation, making it a versatile solution for modern, energy-conscious homes.

Product Selector

Model No.	Heat/cool	Heat only	Pipe	Speed fan	Programmable	Window card	Room card	External Sensor	Modbus RTU	WIFI	Manual
SAS936BWCHB-7-DFZ(N)+SCU217DE-485(N)	√				√			√	√	√	download

Product Parameters

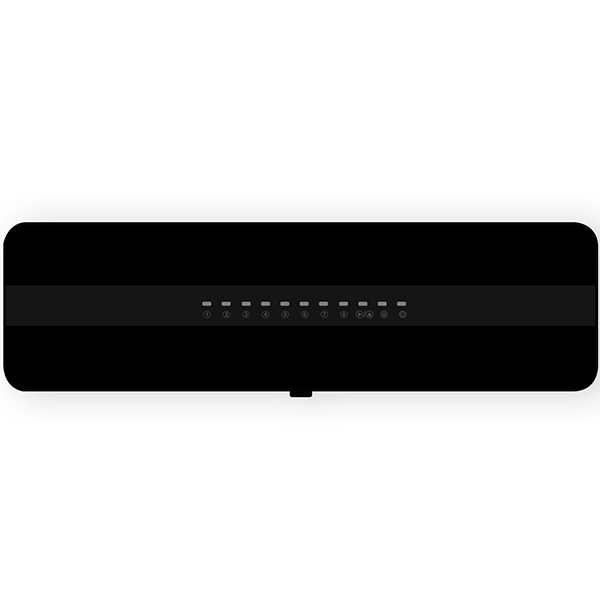

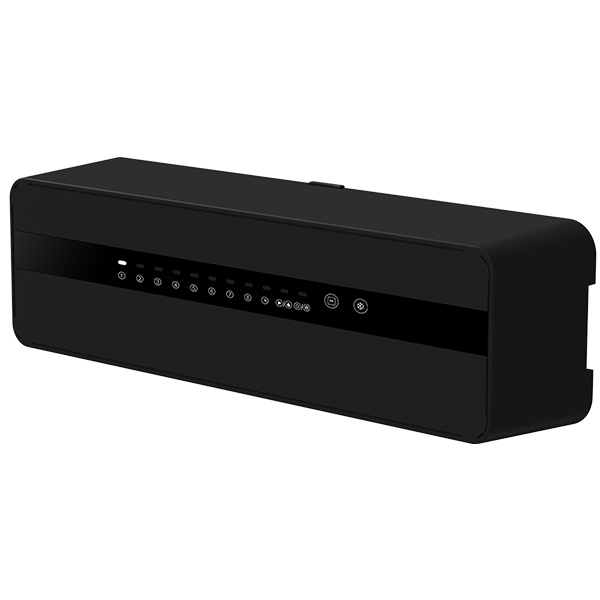

Wiring centre

Power source:100-240VAC 50/60Hz

max current:10A

Load current output:250VAC 8(5)A

Dimensions:298 x 88 x 64mm

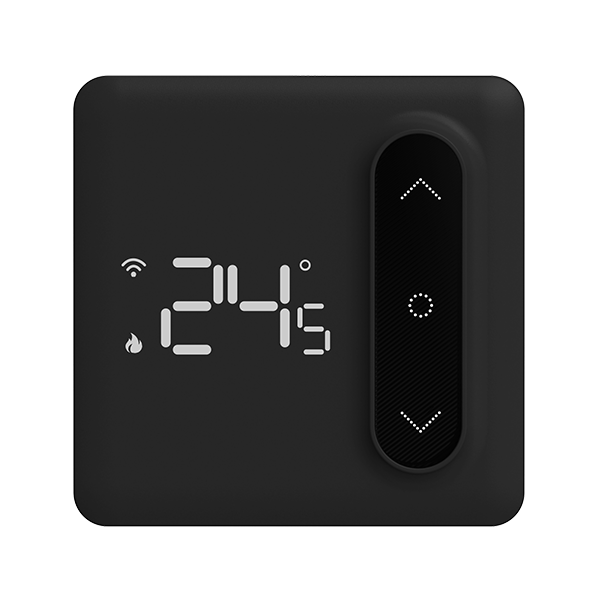

Thermostat

Power supply: 2x1.5V AA alkaline batteries(LR6)

Battery life:1 year

Temperature display: 0~50°C

Temperature setting range: 5~50°C

Temperature display accuracy: 0.1°C

RF wireless transmit range: 100m in open air

Zigbee wireless transmit range: 30m in open air

Dimensions:100*100*19.6mm

Remote control

User can control the thermostat via smart phone all over the world.
Voice remote control

Control the temperature just with your voice. Work with amazon Alexa and Google assistant.
Touch control

LED fashion design, easy touch control.
Heat/cool switch

Quickly switch cooling and heating modes via the app or wiring center.

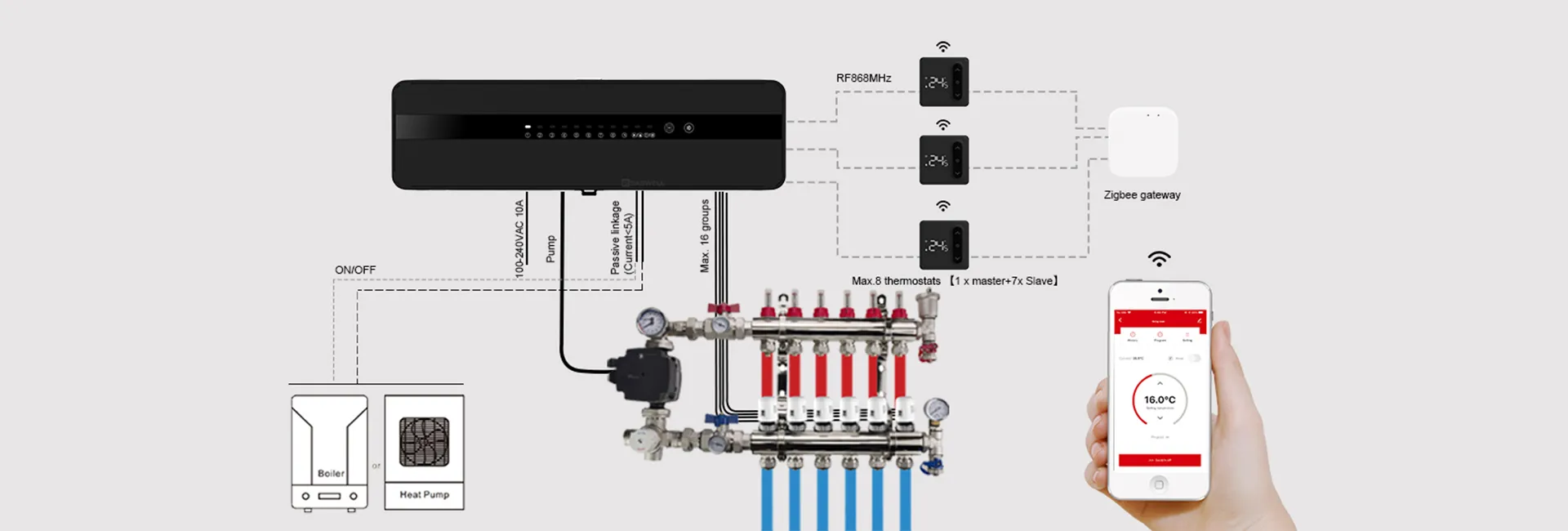

Functional wiring diagram

This kit will bring heat in winter and cool in summer via hydraulic heat pump UFH system. Due to all devices communicate with each other wirelessly, It is the best solution for upgrading existing underfloor heating installations, without the need for wiring.

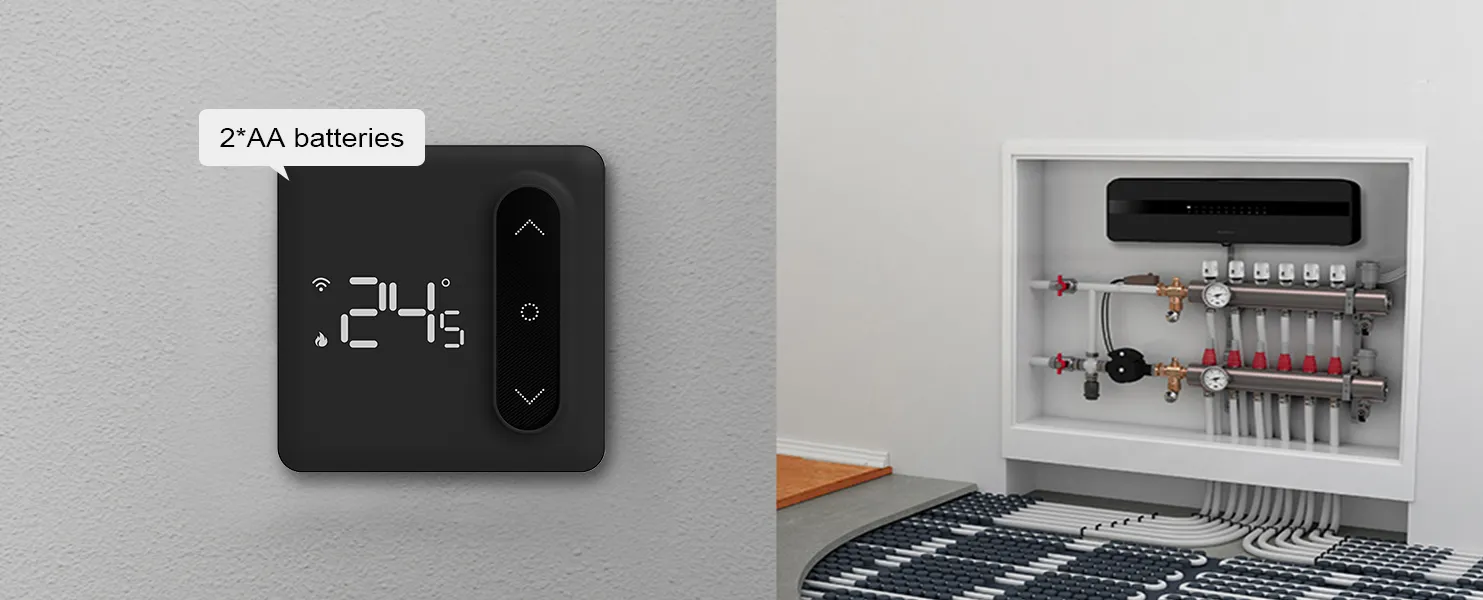

Power by battery for the thermostat

The thermostat is powered by batteries, allowing for flexible installation, and uses wireless connectivity, which is beneficial for upgrading the hydronic heating system.
