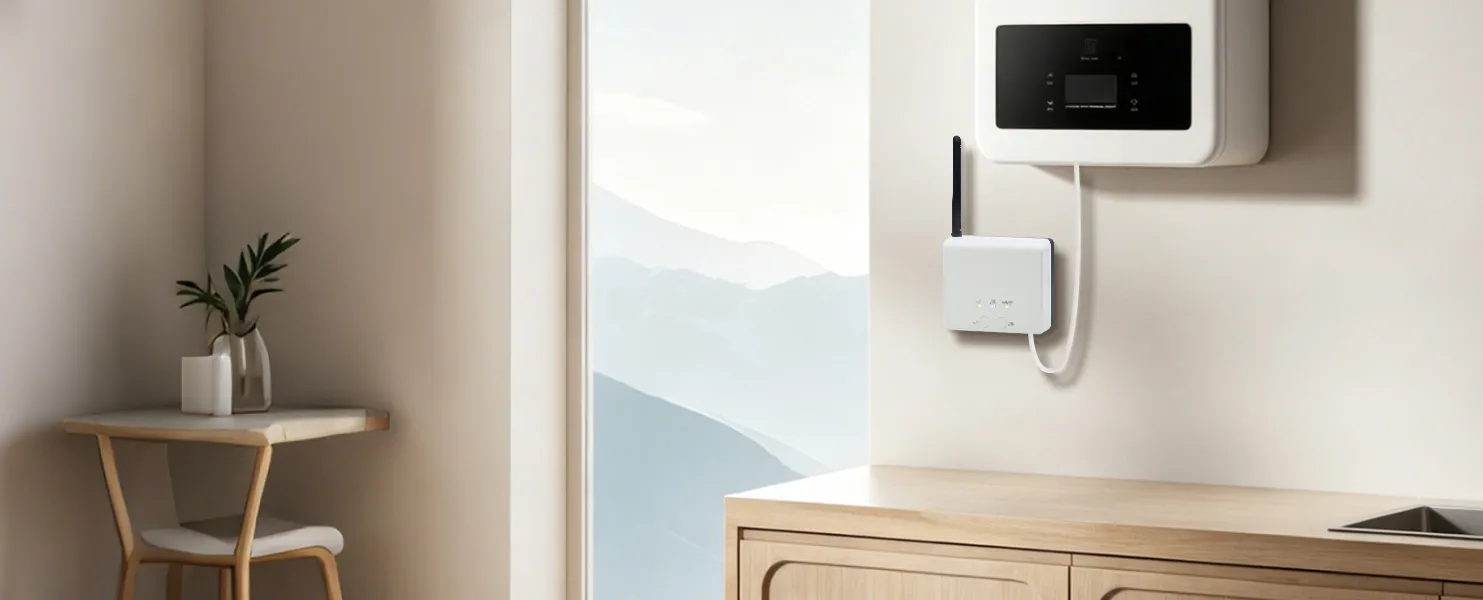

SAS2016DE2 Dual Channel Wireless Receiver for Boiler Control

SAS2016DE2 features two independent relay channels — one for Central Heating (CH) and one for Domestic Hot Water (DHW). This allows the smart system to manage heating and hot water schedules separately, providing flexibility for UK S-Plan and Y-Plan systems where independent control of CH and DHW is required.

SAS2016DE2 is equipped with a built-in 2.4GHz Wi-Fi module and RF 868MHz communication, with TCP/IP and MQTT protocol support at the hardware level. This provides OEM partners and system integrators with a ready-to-use connectivity layer — allowing partners to integrate the receiver into their own gateway and cloud infrastructure without being locked into a specific platform.

Equipped with 10(6)A 250VAC relays, SAS2016DE2 provides reliable switching for both active and passive linkage outputs. This ensures compatibility with a wide range of boiler systems and provides robust performance even under heavy load conditions.

Designed for global deployment, SAS2016DE2 accepts 100-240VAC 50/60Hz input without the need for voltage selection or external adapters. This simplifies inventory management for OEM and distribution partners serving multiple regions.

SAS2016DE2 provides both passive (volt-free) and active (live) linkage outputs, offering maximum flexibility for integration with different boiler control circuits. This makes it particularly suitable for UK S-Plan (two 2-port valves) and Y-Plan (single 3-port valve) systems where independent CH and DHW scheduling is required.

SAS2016DE2 supports RF 868MHz, TCP/IP and MQTT communication protocols, enabling seamless integration with building management systems and third-party platforms. This standardization allows partners to incorporate the receiver into their existing system architecture with minimal development effort.
