Air-conditioner Thermostat SAS908PIT-V2-S1-F3

Main Features
Modulating Thermostat, 3 speed fan , 0~10VAC output, Wall mount, Duct Sensor option, Big LCD With Percentage display.
Product Details

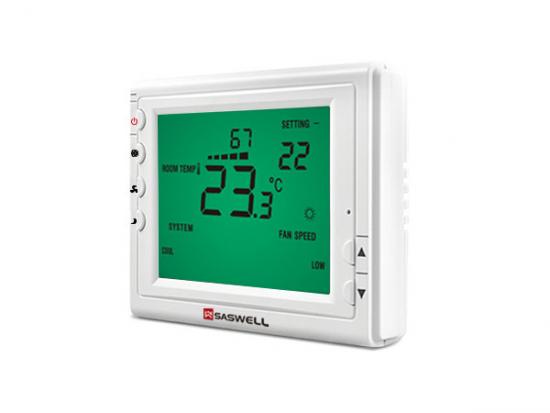

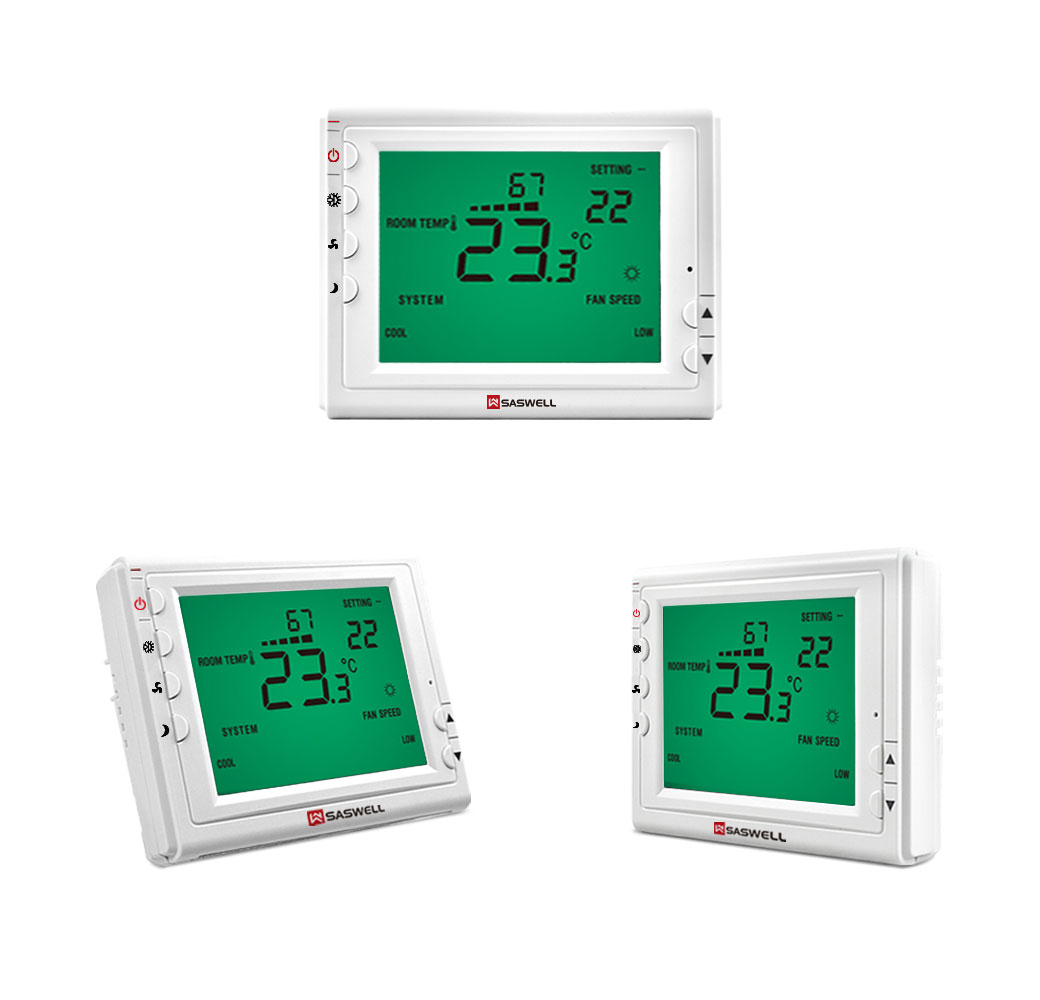

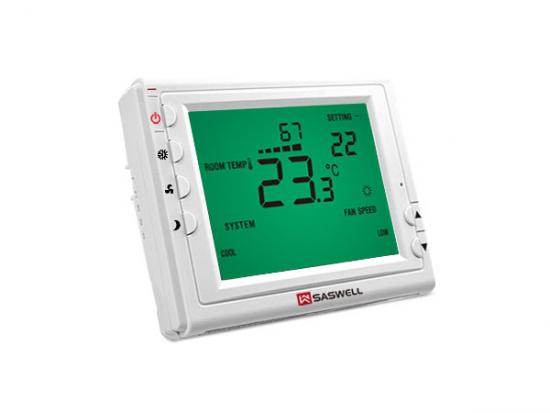

Air Conditioner Thermostat SAS908PIT-V2-S1-F3

Air Conditioner Thermostat

Input Voltage

18-30VAC, 50/60 Hz

Fan Relay Amps inductive

5(3)A

Heat Relay Amps inductive

1(0.5)A

Modulating output Voltage

0 to 20mA or 0 to 10VDC

Room temperature setting range

 5℃ to 35℃ (41℉ to 95℉)

Accuracy

±0.2℉or ±0.1℃

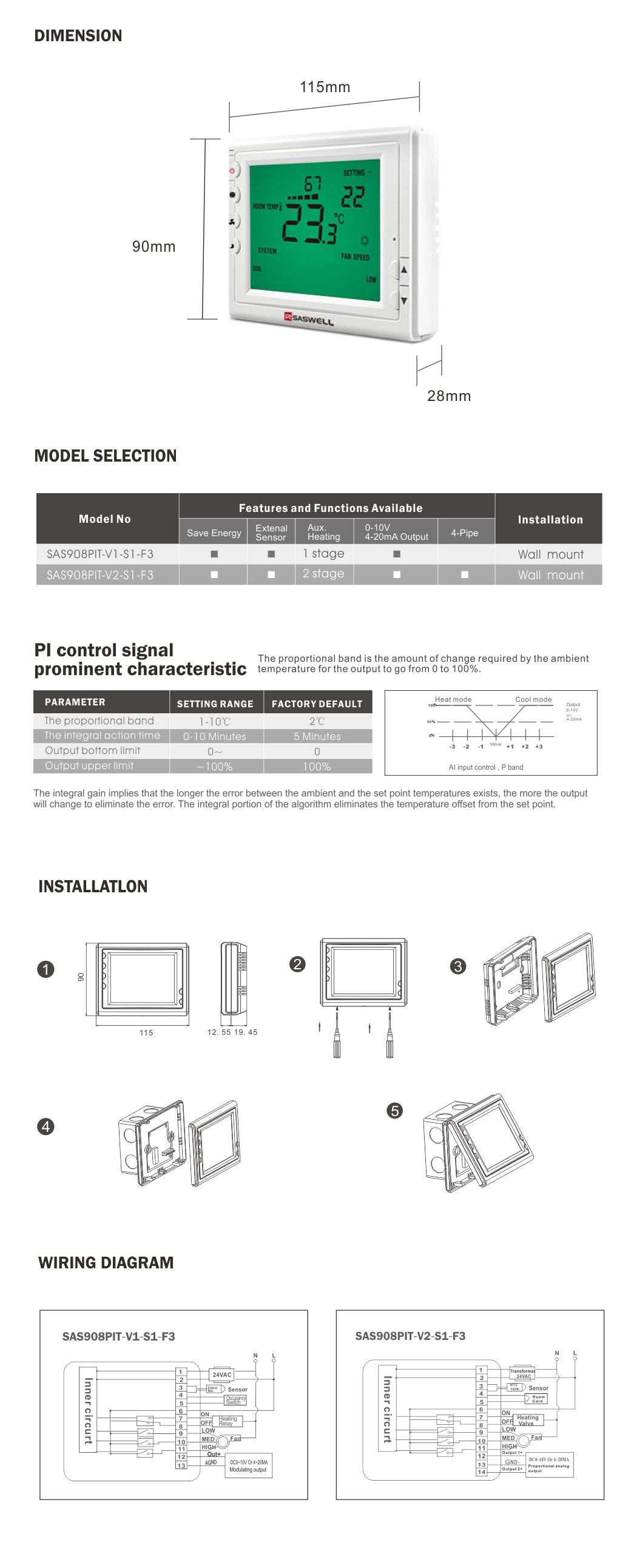

Dimensions

115mm×90mm×28mm

Air Conditioner Thermostat
