SAS922PIT

PI Modulating Fan Coil Thermostat 0-10V Modbus BMS Integration

PI Modulating Control for Precise 0-10V Temperature Management

Modbus RTU Thermostat for Seamless BMS Integration

Optimized Energy Saving Performance in Fan Coil Systems

0-10VDC or 0-20mA Analog Output for Continuous Valve Regulation

3-Speed Auto Fan Control and EC Motor Modulating Option

Remote and External Sensor Functionality for Centralized HVAC Control

Product Description
The SAS922PIT Modulating Thermostat is engineered for 2-pipe Fan Coil Units (FCU), utilizing advanced Proportional-Integral (PI) control to output a precise 0-10VDC analog signal. This enables continuous regulation of valves, drastically surpassing the efficiency and comfort of traditional ON/OFF or simple P control. The superior PI Modulating algorithm ensures the elimination of temperature offset, delivering a highly responsive and accurate temperature control solution. By incorporating Modbus RTU communication, the SAS922PIT integrates effortlessly into Building Management Systems (BMS) for centralized control and data monitoring. It is the superior choice for maximizing operational efficiency and realizing significant Energy Saving in commercial, hotel, and high-end residential environments. This functionality makes it the ideal BMS Compatible Thermostat for FCU systems.
Key Functions

Product Selector

Model No. Heat/cool Cool only Pipe Speed fan Programmable Window card Room card External Sensor Modbus RTU WIFI Power Manual
SAS922PIT-CO-F3-485
2 3 220VAC download
SAS922PIT-EC-485
2 EC motor 220VAC download
SAS922PIT-2-F3-485
2 3 220VAC download
SAS922PIT-ECH-485
2 EC motor 220VAC download
Product Parameters
Power Supply: 100-240VAC 50/60Hz
Fan Relay Amps inductive: 8(5)A
Heat/Cool Relay Amps inductive: 3(2)A
Room Temperature Setting Range: 5°C to 35°C
Dimensions: 88mm×88mm×15mm

Product Application Scenarios

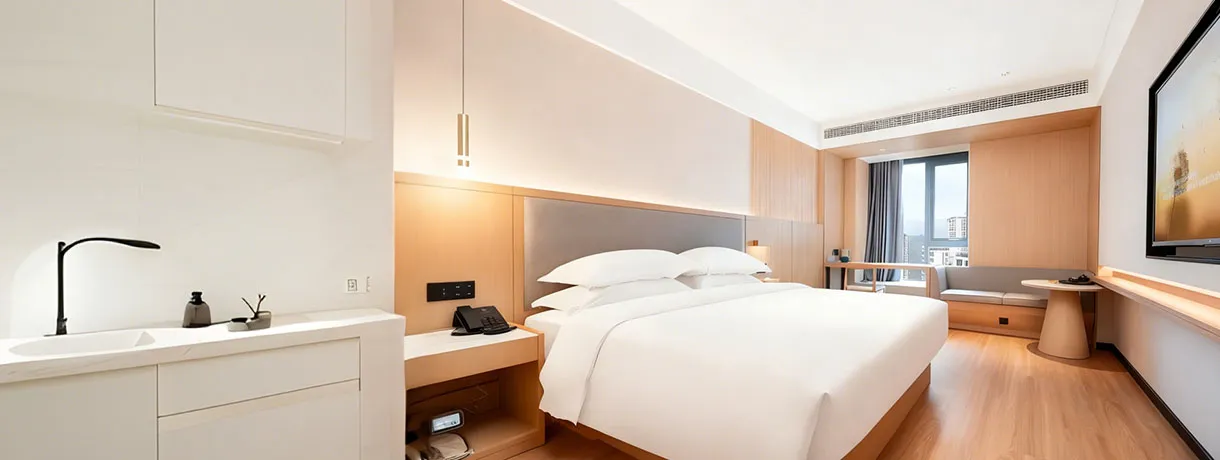

This Modulating Thermostat is designed for professional venues demanding high energy efficiency and superior comfort. It is the ideal terminal HVAC control solution for luxury hotels, Grade A office buildings, commercial complexes, and precision environments like laboratories, museums, and high-end residential projects requiring precise Fan Coil systems and Modbus BMS integration.
Hospital
Office-Building

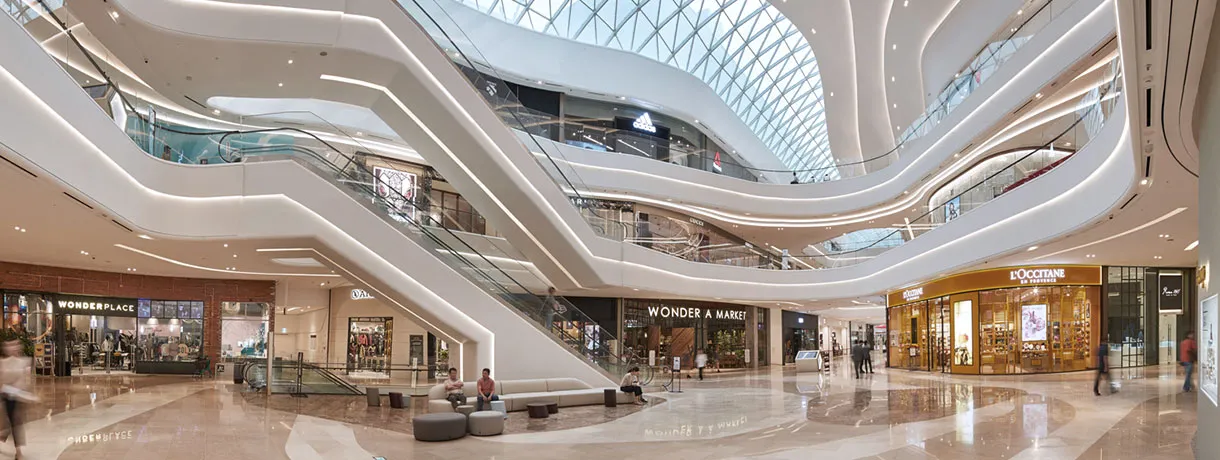

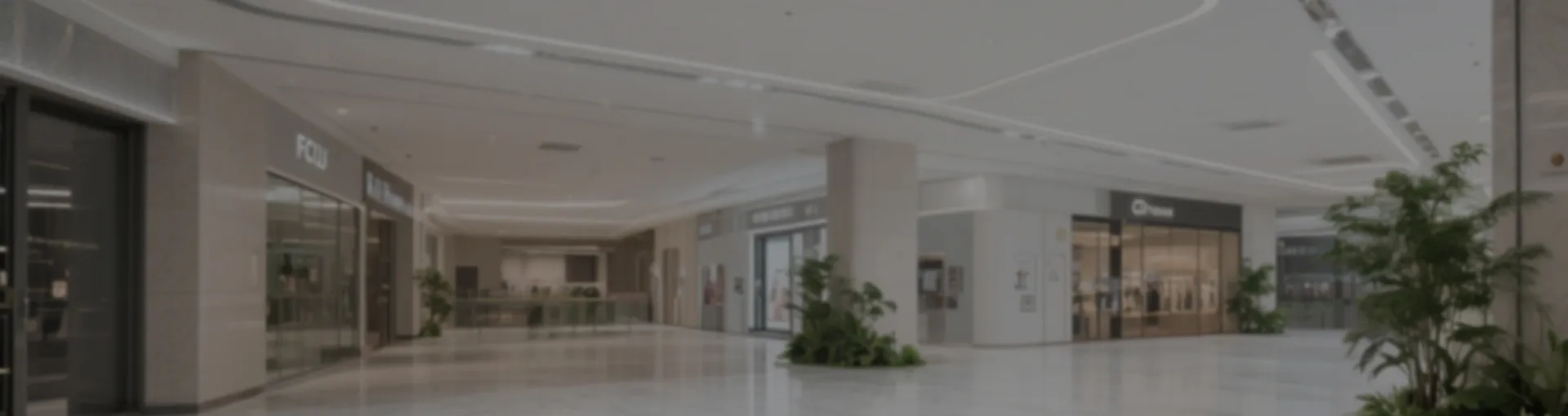

Shopping-Mall

Partnership & OEM/ODM Support

Partner with us to leverage our two decades of expertise in HVAC automation control and supply chain excellence. We are committed to being your solid backing, offering full-cycle support, from rapid Product Customization to dedicated global after-sales service, empowering your success with BMS compatible and Energy Saving solutions in the competitive global market.
PI Modulating Thermostat
Fan Coil Thermostat
0-10V
Modbus
BMS Integration
PI Modulating Control
Energy Saving Fan Coil
EC Motor Modulating
BMS Compatible Thermostat
HVAC Precision Environments
centralized control
