SAS920FCT LoRaWAN fan coil thermostat with energy metering for office building scene

SAS920FCT LoRaWAN Fan Coil Thermostat with Energy Metering

Key Functions

Accurate Consumption Tracking – Real-Time Energy Metering Integration

Wireless Flexibility – Long-Range LoRaWAN Connectivity

Flush-Mount Convenience – In-Wall Junction Box Compatibility

Precise Comfort Control – Standard Hydronic Valve Regulation

Industrial Reliability – Robust Long-Term Operational Stability

Data-Driven Management – Centralized Utility Monitoring Support

Product Overview

The SAS920FCT with Energy Metering combines real-time consumption tracking with long-range LoRaWAN connectivity. Designed for flush-mount installation on surface-mounted FCUs, it supports standard hydronic valve regulation for precise comfort control. LoRaWAN enables cable-free data transmission to centralized monitoring systems. Part of the FCT Series Fan Coil Thermostats collection, it serves both the On-Unit OEM Solution and the Energy Metering and Billing Solution. Industrial-grade design ensures long-term stability.

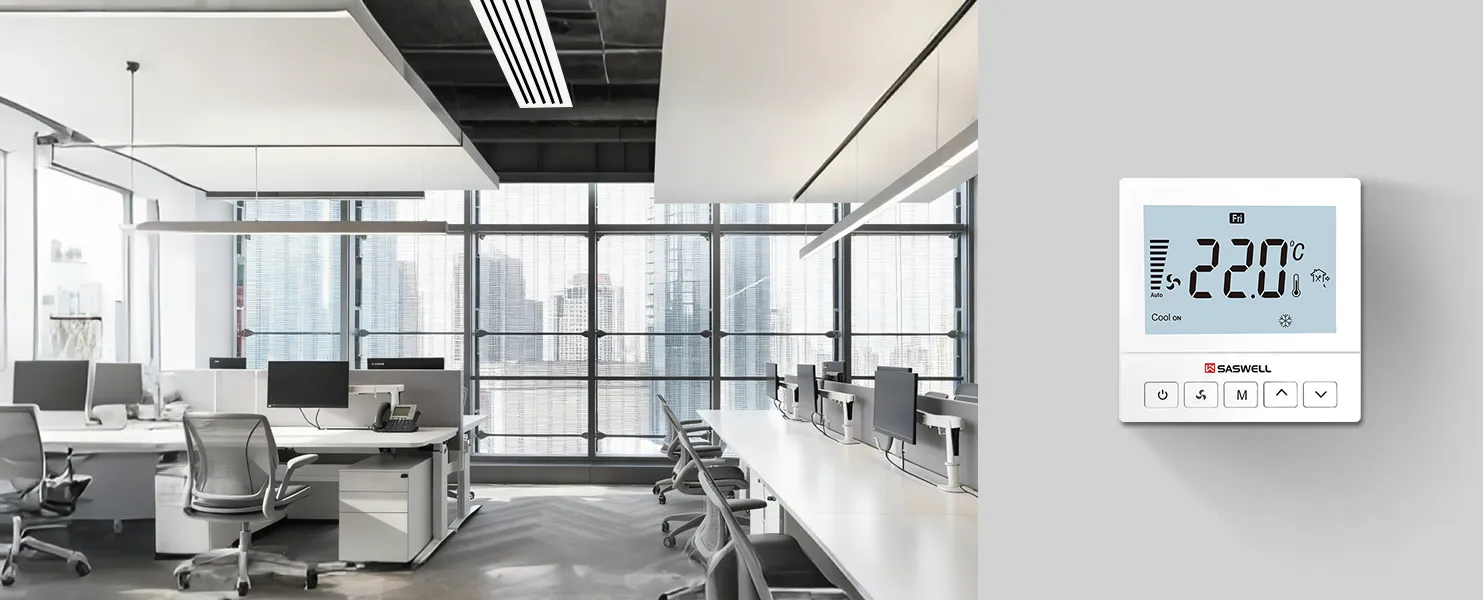

SAS920FCT LoRaWAN fan coil thermostat with energy metering for fan coil unit systems

Product Features


Product Parameters

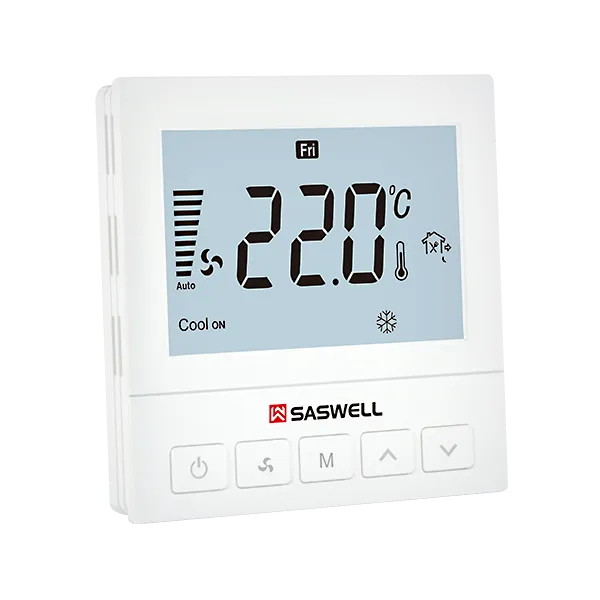

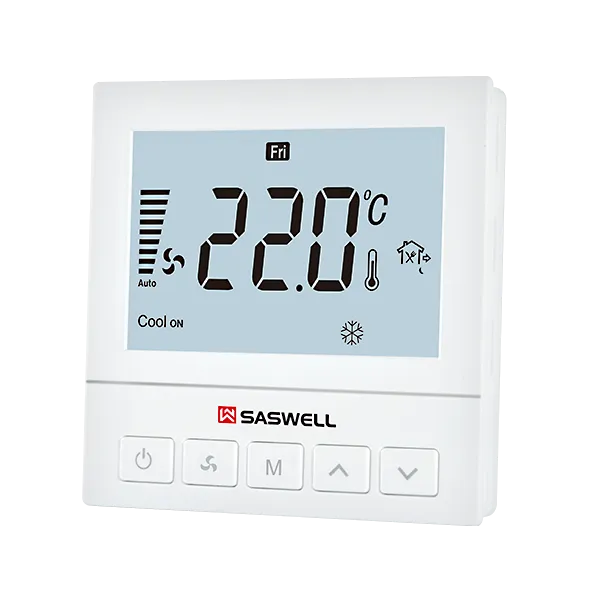

Front view of SAS920FCT LoRaWAN fan coil thermostat with energy metering
SAS920FCT LoRaWAN Fan Coil Thermostat with Energy Metering

Power Supply: 100-240VAC 50/60Hz

Fan Relay Amps Inductive: 8(5)A

Heat/Cool Relay Amps Inductive: 3(2)A

Room Temperature Setting Range: 5°C to 35°C

Dimensions: 88mm x 88mm x 15mm

Wiring diagram for SAS920FCT LoRaWAN fan coil thermostat with energy metering

Product Dimensions

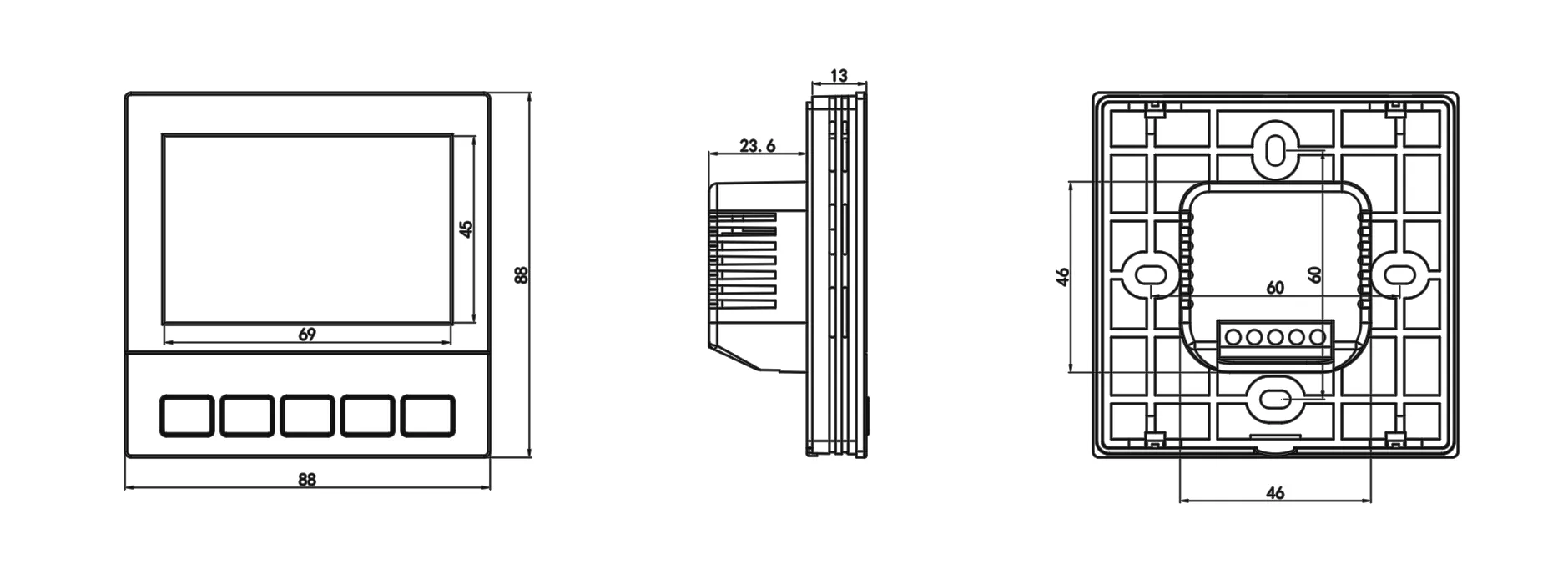

Product dimension drawing for SAS920FCT LoRaWAN fan coil thermostat with energy metering

Product Installation

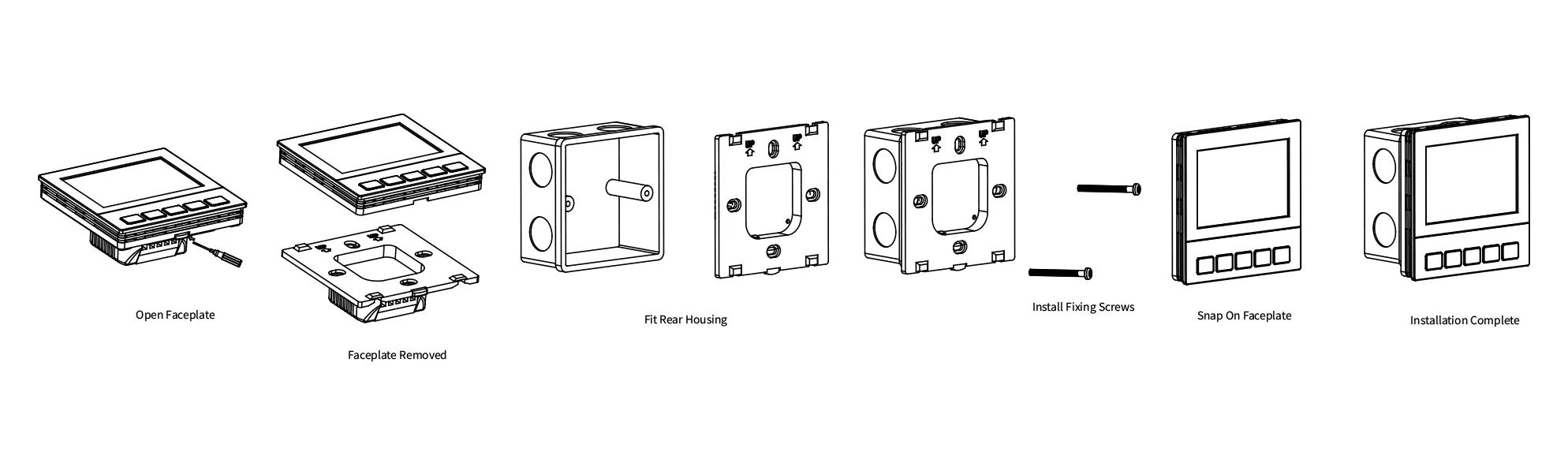

Installation guide for SAS920FCT LoRaWAN fan coil thermostat with energy metering

Product Application Scenarios

The SAS920FCT is purpose-built for multi-family retrofits, mixed-use buildings, and commercial properties requiring wireless energy sub-metering. LoRaWAN eliminates costly rewiring, while built-in metering enables fair tenant billing. For OEMs, it integrates seamlessly into the On-Unit FCU Integrated Solution as a factory-ready body-mounted control. For property managers, it serves as the primary hardware enabler for the Energy Metering and Billing Solution in wireless retrofit deployments.
SAS920FCT LoRaWAN fan coil thermostat with energy metering for residential project applications
Multi-family Retrofits
SAS920FCT LoRaWAN fan coil thermostat with energy metering for shopping mall applications
Mixed-use Buildings
SAS920FCT LoRaWAN fan coil thermostat with energy metering for office building applications
Commercial Properties
