SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee for office building scene

SAS965FCT 0-10V Modulating EC Fan Coil Thermostat with Tuya Zigbee

Key Functions

Precise Climate Control – 0-10V Modulating Valve and EC Fan Support

Smart Ecosystem Integration – Tuya Zigbee Wireless Connectivity

Intuitive On-Unit Operation – 4-Inch Color Touchscreen Display

Broad System Compatibility – 2-Pipe and 4-Pipe FCU Support

Future-Proof Maintenance – OTA Firmware Upgrades

Brand-Ready Differentiation – Rapid UI Customization Service

Product Overview

The SAS965FCT with Tuya Zigbee combines 0-10V valve and EC fan control with smart connectivity. Designed for on-unit mounting on surface-mounted FCUs, it delivers ±0.5°C accuracy via continuous modulation. The 4-inch touchscreen enables local control, while Tuya Zigbee supports automation integration. Part of the FCT Series Fan Coil Thermostats collection, it serves both the On-Unit OEM Solution and the Energy Metering and Billing Solution. OTA updates and 7-day UI customization ensure long-term adaptability.

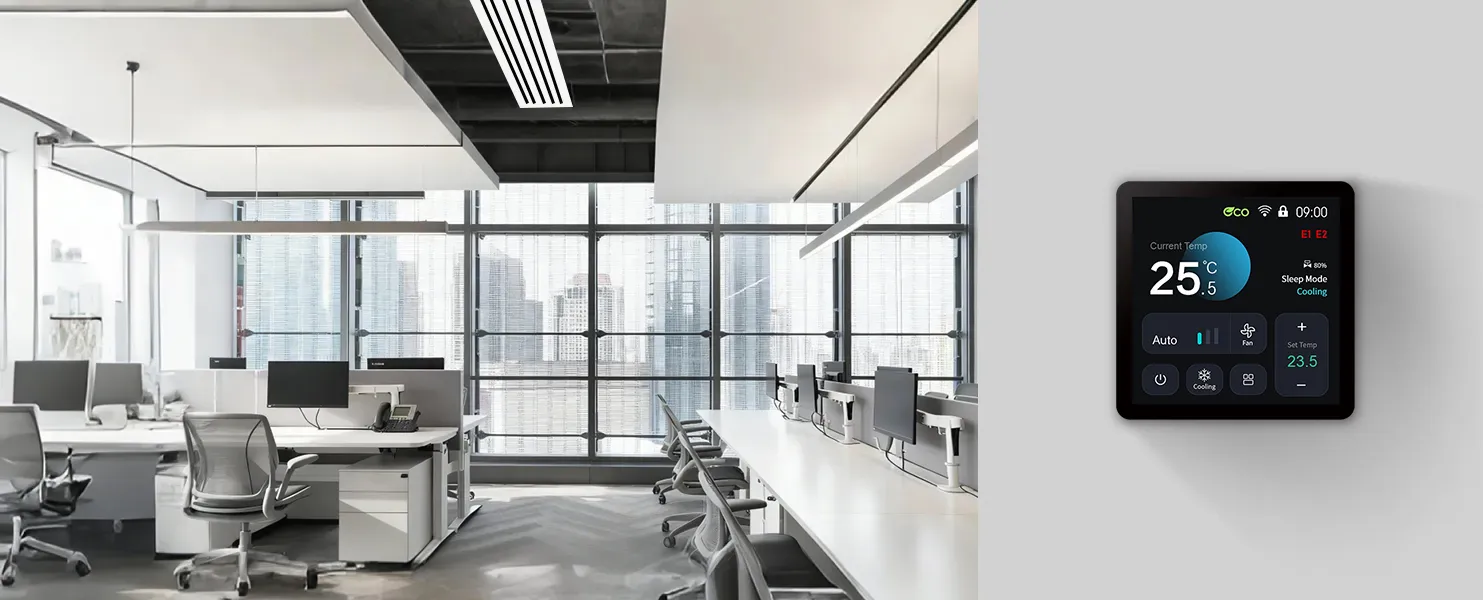

SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee for fan coil unit systems

Product Features


Product Parameters

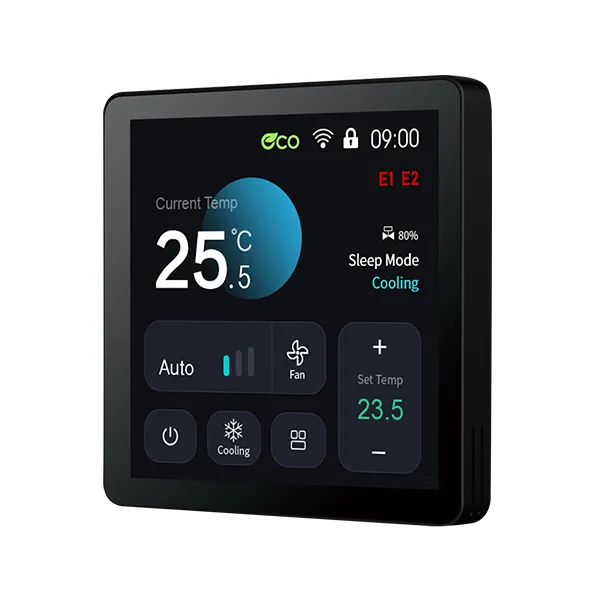

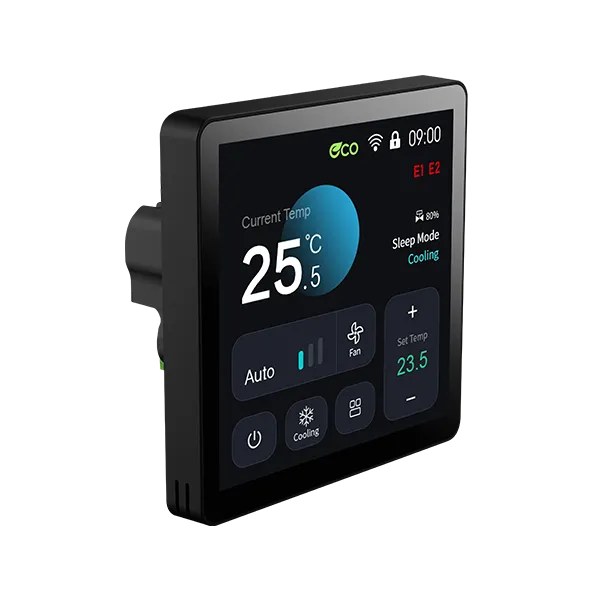

SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee product front view
SAS965FCT - 0-10V Modulating EC Fan Coil Thermostat with Tuya Zigbee

Power supply: 100~240VAC 50/60Hz

Standby Power Consumption: ≤2W

Display accuracy: 0.1°C

Temperature setting step: 0.5°C

Communication: Modbus 485 / 2.4G WIFI

Displayed temperature range: 0~70°C

Operating temperature range: 0~50°C

Temperature setting range: 5~35°C

Dimensions: 86x86x12mm

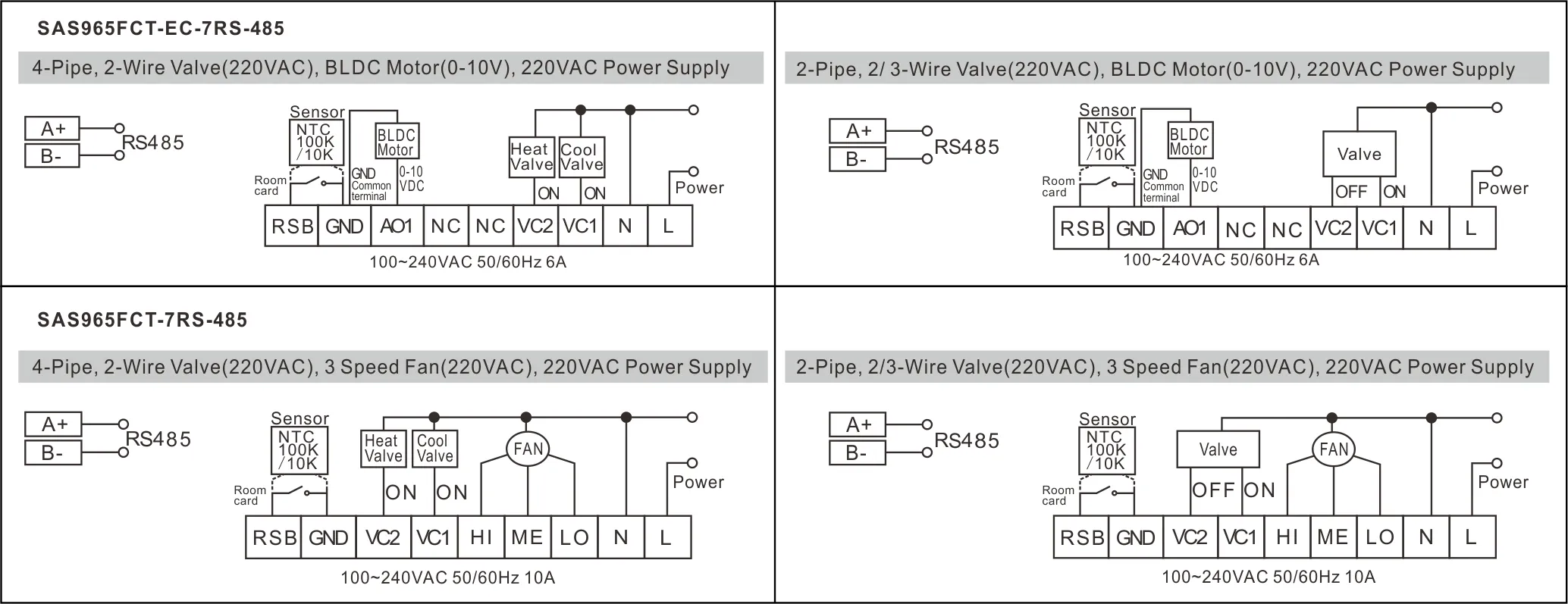

Wiring diagram for SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee

Product Dimensions

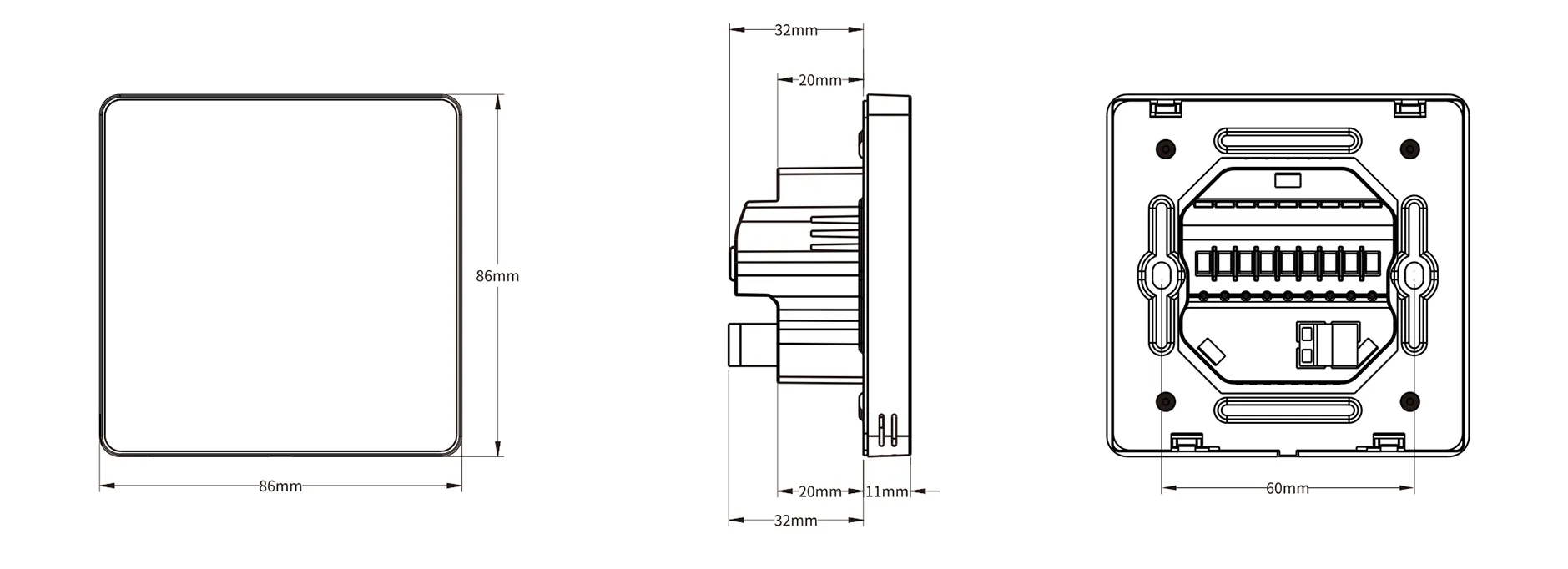

Product dimension drawing for SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee

Product Installation

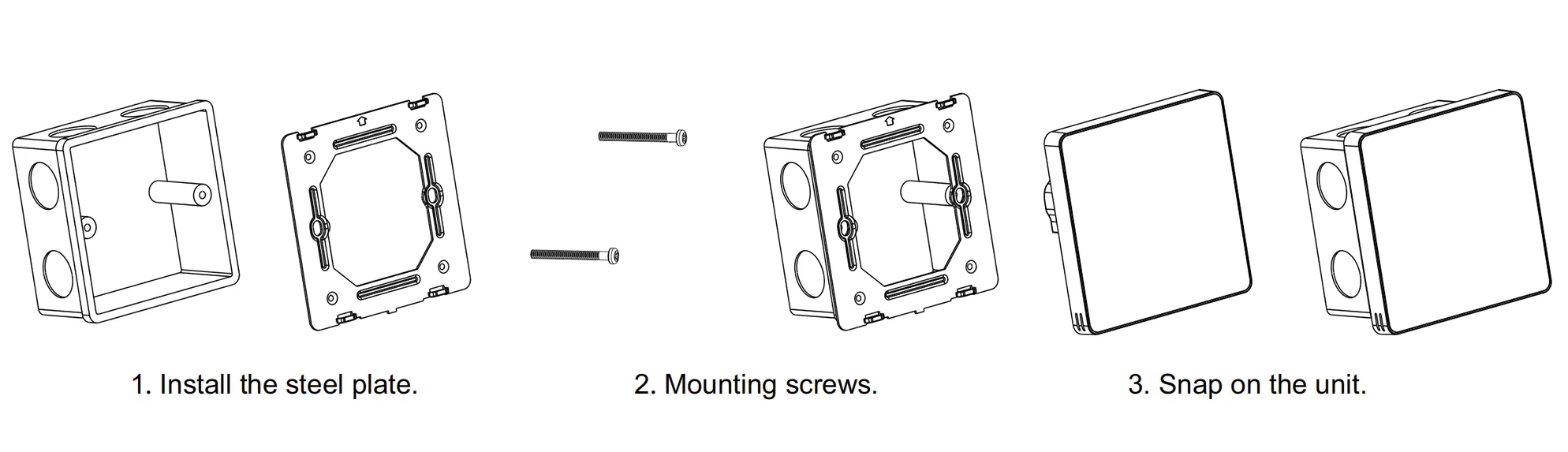

Installation guide for SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee

Product Application Scenarios

The SAS965FCT is ideal for surface-mounted FCUs in high-end residential, hospitality, and commercial projects, including boutique hotels, luxury apartments, Class A offices, and premium healthcare. Its 0-10V modulating logic and EC fan support make it the top choice for zero-fluctuation comfort and energy efficiency. As a core FCT Series product, it fully supports the On-Unit FCU Integrated Solution for OEMs and the Energy Metering and Billing Solution for tenant sub-billing.
SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee for luxury residential applications
Luxury Apartments
SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee for premium hospital applications
Premium Healthcare
SAS965FCT 0-10V modulating EC fan coil thermostat with Tuya Zigbee for boutique hotel applications
Boutique Hotel
