SAS922BFCH FCU & UFH 2-in-1 Radiant Thermostat

Get a Quote

Key Functions

50% Cost Savings – 2-in-1 FCU+UFH Control

Minimizing Seasonal Callbacks – Hardware-Level Mode Switching

Preventing Pump Idling – 3-Speed Fan & Valve Interlock Logic

Protecting Premium Flooring – External Sensor Overheating Protection

Preventing Condensation Damage – Real-Time Dew-Point Protection

Tamper-Proof Settings – Installer Menu with Parameter Lock

Home HP Hydronic Thermostat SAS922BFCH FCU & UFH 2-in-1 Radiant Thermostat

Product Overview

The SAS922BFCH FCU & UFH 2-in-1 Radiant Thermostat is designed for mixed-terminal systems, seamlessly bridging fan coil units (FCU) and underfloor heating (UFH). Part of the WCH Series Radiant Thermostats, it executes hardware-level logic to manage 2-pipe heat pump changeovers, eliminating thermal conflicts between air and floor loops. By unifying both terminals into a single panel, it removes the need for redundant wall interfaces while providing active dew-point protection and multi-zone control during cooling operations.

Recommended reading: WCH series radiant thermostats

Product Features

Integrated FCU & UFH 2-in-1 Control

Unifies underfloor heating and fan coil unit control into a single hardware platform. Cuts room terminal procurement costs by 50% and slashes field wiring labor for system integrators.
Hardware-Level Mode Switching

Provides a direct physical interface for cooling and heating selection. Prevents conflicting configuration errors and user-induced service calls.
3-Speed Fan & Valve Interlock Logic

Hardcodes onboard fan relays to cycle in synchronicity with motorized hydronic valves. Eliminates ghost energy consumption and pump dead-heading once zone demand is satisfied.

External Sensor Overheating Protection

Supports a dedicated external NTC probe to enforce floor-surface temperature limits. Interrupts heating cycles to protect upscale flooring against warping and cracking.
Precision Dew-Point Logic

Monitors indoor temperature and humidity; automatically adjusts or closes chilled water valve near dew point to prevent condensation on fan coil units or radiant floor surfaces during cooling operation. Optional external humidity sensor.
Installer Menu with Parameter Lock

Isolates deadbands, calibration offsets, and setpoint limits within a password-protected menu. Secures engineered hydronic balance settings against unauthorized tampering.

Product Parameters

SAS922BFCH FCU & UFH 2-in-1 Radiant Thermostat

● Power supply voltage: 85~250VAC, 50/60Hz

● Room temperature display range: 0°C~50°C

● Room humidity display range: 5~95%

● Dew point temperature measurement range: 0~50°C

● External temperature measurement range: 0°C~60°C

● Set temperature display range: Cooling 20°C~30°C, Heating 16°C~26°C

● Room temperature display accuracy: 0.1°C

● External temperature sensor type: NTC 10K

● Storage and transportation environment: Temperature -20°C~70°C; Humidity 5~95%

● Installation dimensions: 86*86mm

● Product dimensions: 86x86x12mm

● Protection class: IP21

Request Free Sample

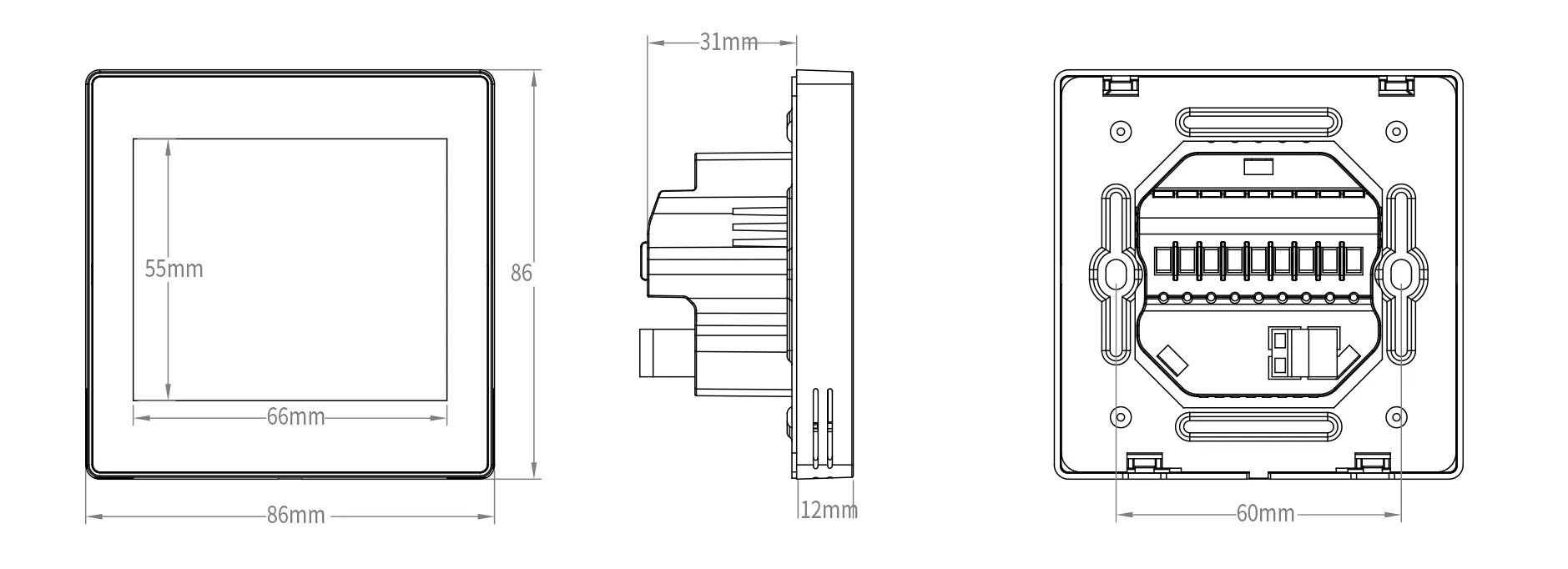

Product Dimensions

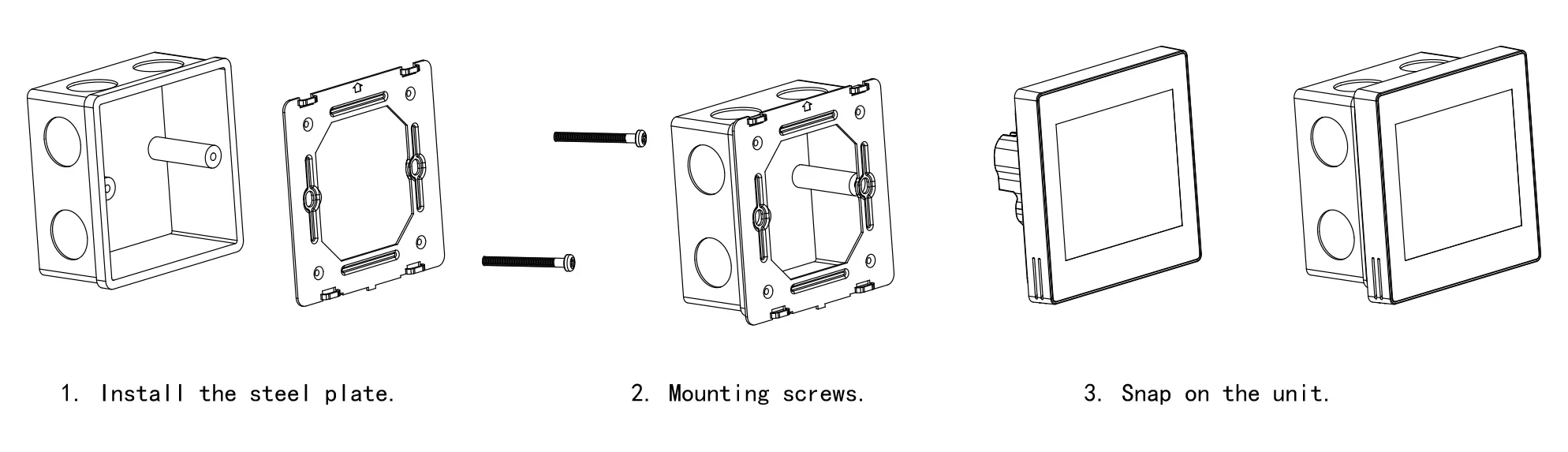

Product Installation

Product Application Scenarios

SAS922BFCH is designed for residential and light commercial projects with combined fan coil and underfloor heating/cooling systems. It applies to 2-pipe or 4-pipe hydronic configurations in villas, apartments, and hotels, synchronizing air and radiant terminals under a single interface per zone. The SAS922BFCH is the core control platform within the Hybrid Radiant + FCU Control Solution, responsible for integrated fan coil and underfloor heating management with intelligent changeover logic

Villa

Apartments

Hotel

Contact Now

FAQ

The SAS965FCH features standard RS485 Modbus RTU connectivity. Connect the RS485 A/B terminals to your BMS network, and configure the Modbus parameters (baud rate, parity, slave ID) through the thermostat settings menu. Refer to the Modbus integration guide for register mapping.

Wi-Fi setup is accessible from the network settings menu. Select your 2.4GHz Wi-Fi network, enter credentials, and the thermostat will connect. The connection status is displayed on the home screen. Remote access via Tuya/Smart Life is available once connected.

UI customization (boot logo, color theme, layout) is available through our OEM/ODM service channel. Submit your brand assets and requirements — we deliver customized firmware within 7 days for verified B2B partners.

480×480 pixels on a 4-inch capacitive touchscreen with clear iconography and switchable light/dark themes. Designed for easy readability and intuitive operation.

The SAS965FCH supports Modbus RTU and optional Wi-Fi. Zigbee is available on the SAS922BFCH (Hybrid) platform. Please select the appropriate model for your connectivity requirements.

The capacitive touchscreen is factory-calibrated and should not require recalibration under normal use. If calibration is needed, access the installer menu and follow the on-screen calibration steps.
