Low-Voltage 2-Wire Wired UFH Control System for Heat Pump (8-Zone)

SAS931XWCH

Low-Voltage 2-Wire Wired UFH Control System for Heat Pump

Get a quote

Low-voltage 2-wire connection for simplified wiring

Magnetic panel design for quick installation

Compatible with HP cooling and boiler heating

Max 8 zones for precise temperature management

Master WIFI enables full system App control

Modular design for fast after-sales replacement

Home Product Residential Thermostats HP Hydronic Thermostat

Product Feature

The SAS931XWCH Wired UFH System is the stable, high-efficiency solution for multi-zone hydronic control. It significantly simplifies new build wiring by utilizing a unique low-voltage 2-wire non-polarity connection and a magnetic panel design for quick installation. Fully compatible with heat pump cooling/boiler heating, and controlling up to 8 UFH zones, this kit combines the high stability of wired control with remarkable installation convenience, making it ideal for high-standard residential projects.

Key Functions

2-Wire Low-Voltage Bus

Thermostat uses low-voltage DC12-18V power, requiring only two non-polarity wires between the thermostat and the wiring centre.
Magnetic Panel Design

Thermostat uses a magnetic mounting method, allowing for quick, tool-free installation and flexible disassembly for maintenance.
8-Zone UFH Control

Wiring centre manages up to 8 thermostats and 12 loops, achieving precise room-by-room temperature control.

HP Heating/Cooling

Supports Auto, Cool, and Heat modes, integrating with heat pump logic to meet dual heating and cooling demands.
Master WIFI Sharing

Only the master thermostat requires Wi-Fi commissioning, automatically synchronizing network access to all slave thermostats for App control.
Modular Plug-in Design (Subtitle)

Wiring centre uses a modular plug-in design, enabling fast fault identification and minimizing costly on-site component replacement time.

Product Selector

Model No.

Heat/cool

Heat only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS931WCH-XT-WIFI(TY)

√

12-18V(no polarity)

download

Product Parameters

Wiring control centre (SCU211CH-BUS)

Power source: 100-240VAC 50 / 60Hz (maximum current 10A)

Storage environment temperature and humidity: -10 ~ 60°C, 0 ~ 90% RH (non-condensing)

Working environment temperature and humidity: 0 ~ 50 °C, 0 ~ 80% RH (non-condensing)

Size: 298 X 88 X 66mm

IP rating: IP40

Thermostat（SAS931X）

Power supply and signal input: DC12 ~ 18V carrier non-polarity input

(power supply wiring control centre, maximum current 100mA)

Storage environment temperature and humidity: -10 ~ 60°C, 0 ~ 90% RH (non-condensing)

Working environment temperature and humidity: 0 ~ 50°C, 0 ~ 80% RH (non-condensing)

Temperature display range: 0 ~ 50°C

Display accuracy: 0.1°C

Size: 86x86x13mm

Protection level: IP21

WIFI antenna emission frequency(master controller): 2.4GMHz

WIFI wireless transmission distance(master controller): 60M in the open area

Easy to install

The thermostat uses a magnetic mounting method, requiring no tools and allowing for quick installation.
Voice remote control

Control your home temperature just with your voice.
Easy commissioning with WIFI

Only master thermostat has WIFI module inside. Once end user commission the master thermostat with WIFI, all slave thermostats can access to WIFI as well.

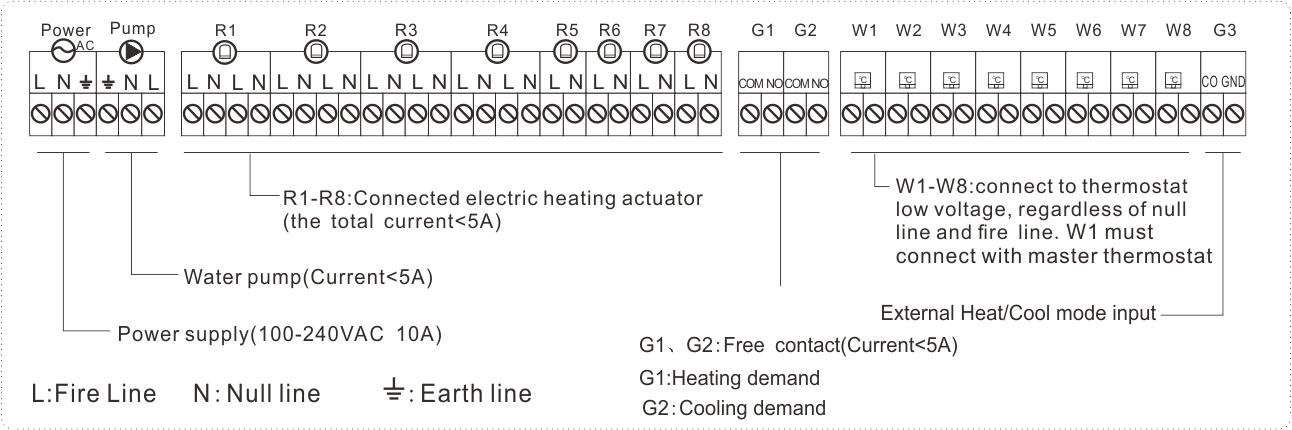

Connection between Thermostat and Wiring Center

The Wiring Center is powered by Line voltage and the thermostat is powered by 12VAC low-voltage which comes from the wiring center. Only 2 wires are needed to connect the wiring center and the thermostat. The 2 wires are no polarity.

Easy installation of 2-wire thermostat reducing wiring complexity

System Structure and Integration

This wired UFH system is a multi-zone control solution designed for heat pump and boiler systems, centered around the SCU211-BUS Wiring Centre. The centre connects up to 8 thermostats (1 Master + 7 Slave) and manages a maximum of 12 UFH groups. Thermostats utilize a unique low-voltage 2-wire BUS connection (12-18V non-polarity) to the wiring centre, which greatly simplifies wiring while maintaining the stability of a wired system. The master thermostat features a built-in WIFI module, enabling all slave thermostats to automatically synchronize for App remote control, offering stable and convenient multi-zone smart management for new residences.

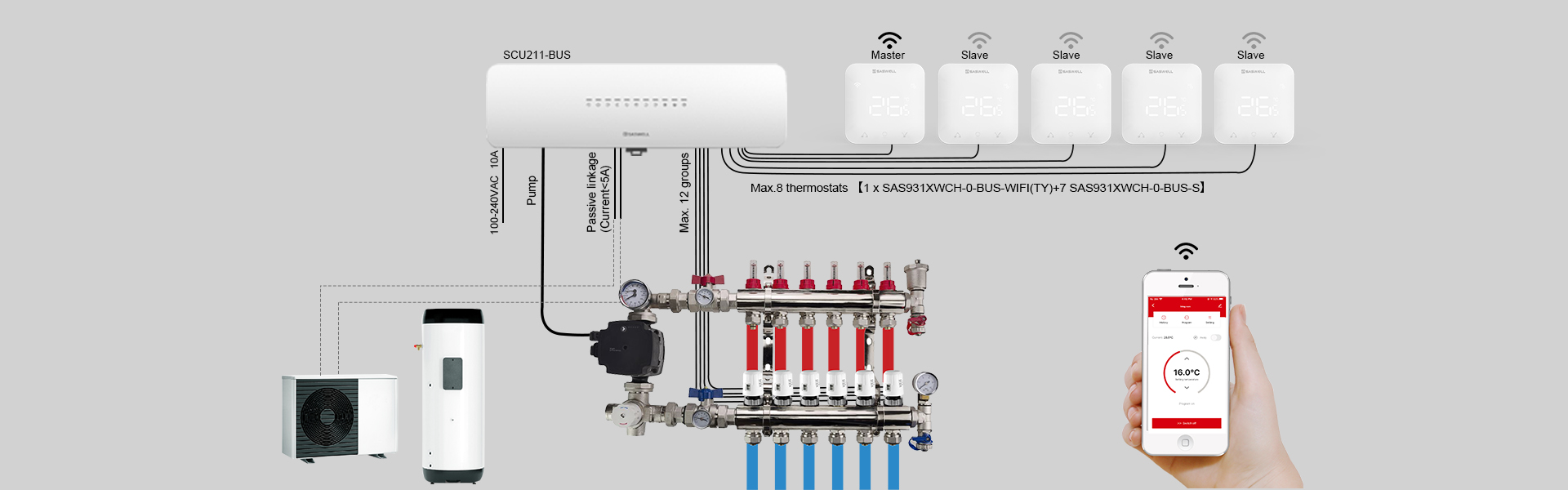

SASWELL Low-Voltage 2-Wire UFH Control System schematic diagram for Heat Pump

Contrlo more with wiring center

One wiring center can wiring Maximum 8 thermostats. Each of the first 4 thermostat can control 2 Actuators, 8 thermostat can control maximum 12 Loops.

Support Heat/Cool changeover

Heat/Cool changeover can be set by Master or Heat pump.

Auto-Sync Function

Heat or Cool mode could be set by master thermostat or heat pump. All slave thermostat will automatically be Sync with the master setting.

Connect to heat pump

The wiring between the wiring center and the heat pump varies depending on the control logic.

Save after sale cost

Modular plug-in design,find fault in 3 minutes,replace in 1 second

Product Application Scenarios

The SAS931XWCH Wired System is the ideal choice for high-stability UFH control in new builds and system upgrades.It is perfectly suited for villas and premium apartments where floor heating is the primary terminal and system stability is paramount. Its low-voltage 2-wire cabling advantage significantly boosts installation efficiency in new projects while simplifying high-voltage connections. The magnetic panel design meets the high aesthetic and convenient maintenance requirements of fine decoration projects. Its heat pump compatibility and App remote control capability make it a reliable core component for modern, high-efficiency UFH control.
