Elevate Interior Design – High-Contrast LCD & Physical Buttons
Cut Energy Waste – 7-Day Programming
Scale to 8 Zones – 8-Zone Independent Control
Protect Flooring – Intelligent Dual-Sensor Protection
Simplify Integration – Native WiFi, Zigbee & Z-Wave
Reduce SKU Complexity – Universal Multi-Zone & Boiler Interlock

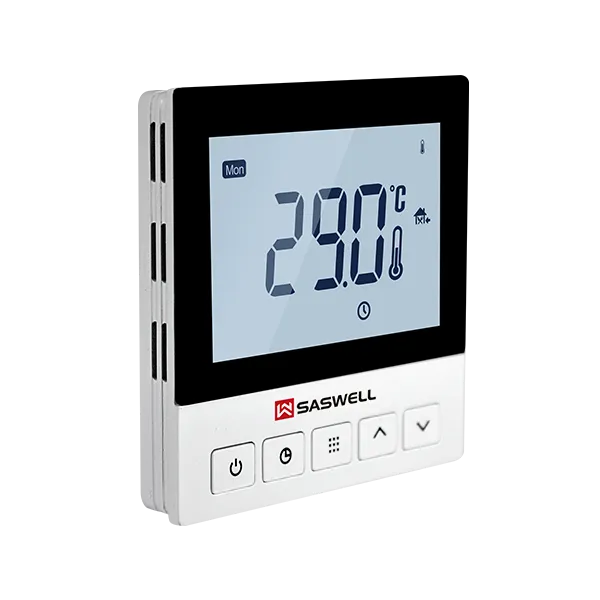

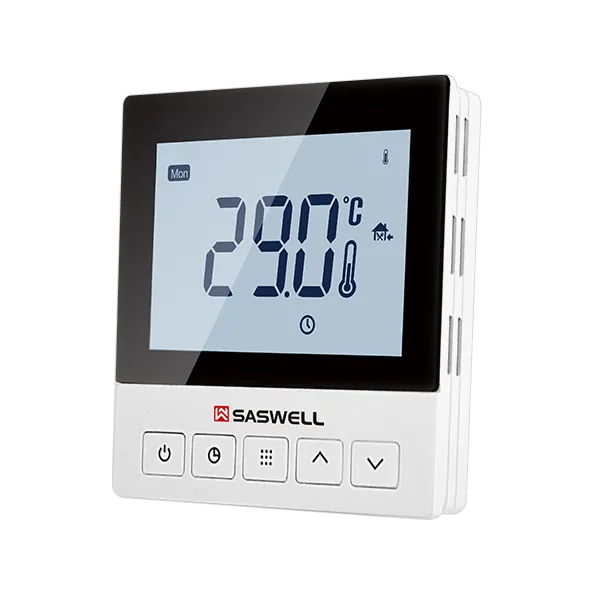

High-Contrast LCD & Physical Buttons
High-contrast LCD and tactile physical buttons create a sleek, modern contrast design that elevates any contemporary interior. Oversized digits ensure easy reading from across the room.
7-Day Programming
Independent 7-day scheduling (4 or 6 configurable segments per day) automatically lowers setpoints during unoccupied hours — cutting energy waste and supporting green building compliance.
8-Zone Independent Control
When paired with a wiring centre, this thermostat enables up to 8 independent heating zones. Each room maintains its own schedule — delivering tailored comfort and significant energy savings.
Intelligent Dual-Sensor Protection
Supports room sensor, external floor sensor, or both. Strict floor temperature limits prevent wood warping or tile cracking — dramatically reducing post-installation callback costs.
Native WiFi, Zigbee & Z-Wave
Built-in WiFi plus optional modular Zigbee and Z-Wave readiness allows seamless integration into existing smart home networks — slashing development cycles and integration costs for OEM partners.

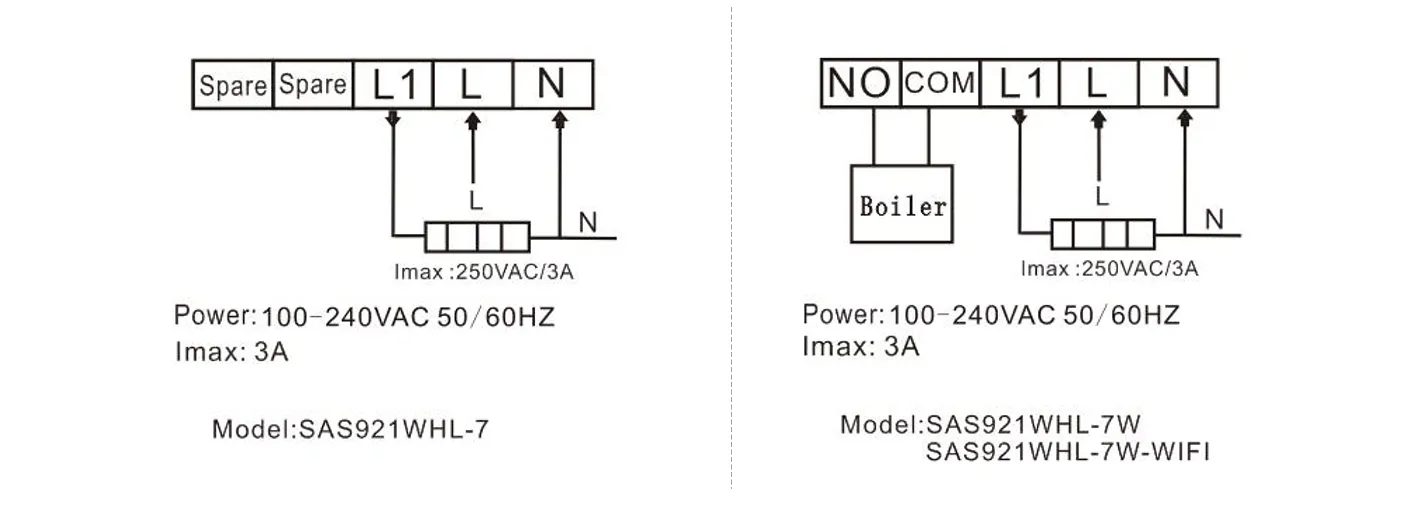

Universal Multi-Zone & Boiler Interlock
Supports both multi-zone underfloor manifolds and single-zone boiler retrofits. Built-in interlock ensures the boiler runs only when a zone calls for heat — optimizing energy use.
Power source: 100-240VAC 50/60Hz
Maximum load electric current: 250VAC 3(2)A
Room temperature setting range: 5℃ to 90℃
Floor temperature control range: 5℃ to 99℃
Accuracy: ±0.5℃

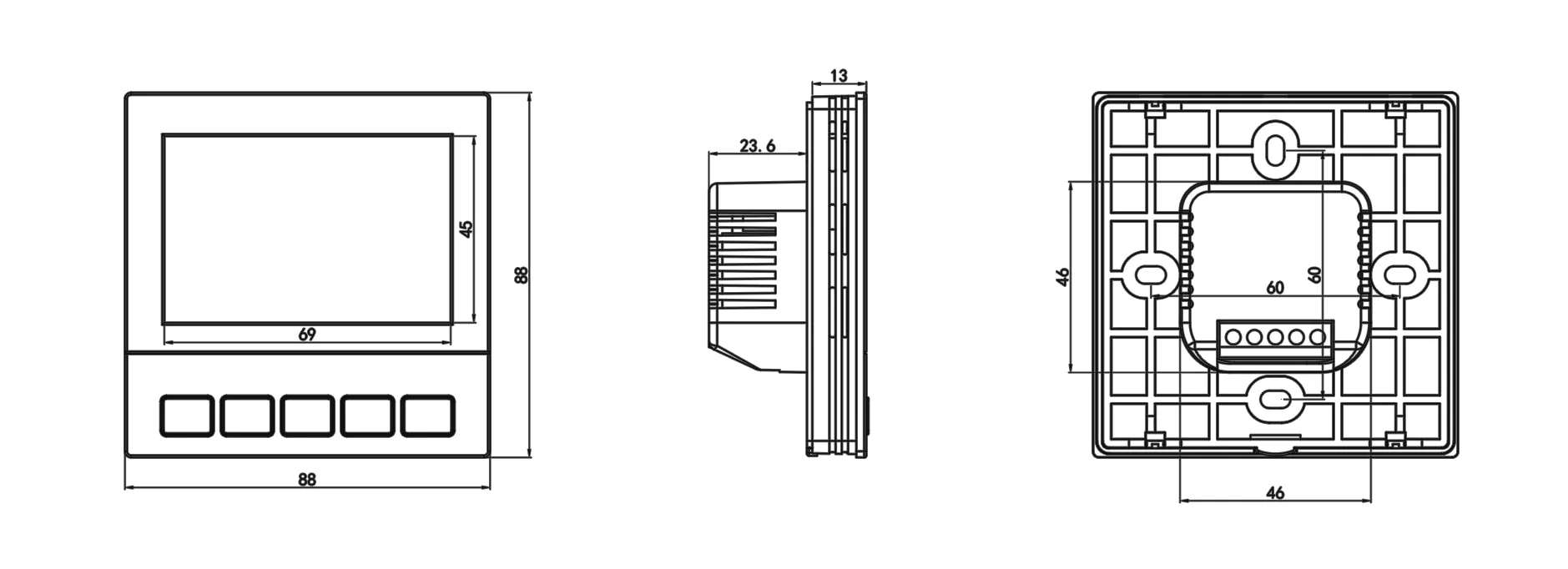

Dimensions: 88mm X 88mm X13mm
