Ensure Silent Operation – Premium Soft-Touch Buttons
Cut Energy Waste – 7-Day Programming
Scale to 8 Zones – 8-Zone Control with Wiring Centre
Protect Floor Surfaces – Intelligent Dual-Sensor Protection
Simplify Project Deployment – Universal Multi-Zone & Boiler Interlock
Fit Any Wall – Compatible with EU/UK/CN Back Boxes
.webp)
Premium Soft-Touch Buttons
Near-silent button operation ensures no clicking noises in quiet environments. The soft-touch surface provides a premium tactile experience while maintaining reliable control.
7-Day Programming
Independent 7-day scheduling (4 or 6 configurable segments per day) automatically lowers setpoints during unoccupied hours — cutting energy waste and supporting green building compliance.
8-Zone Control with Wiring Centre
When paired with a wiring centre, this thermostat enables up to 8 independent heating zones. Each room maintains its own schedule — delivering tailored comfort and significant energy savings.
Intelligent Dual-Sensor Protection
Supports room sensor, external floor sensor, or both. Strict floor temperature limits prevent wood warping or tile cracking — dramatically reducing post-installation callback costs.
Universal Multi-Zone & Boiler Interlock
Supports both multi-zone underfloor manifolds and single-zone boiler retrofits. Built-in interlock ensures the boiler runs only when a zone calls for heat — optimizing energy use.

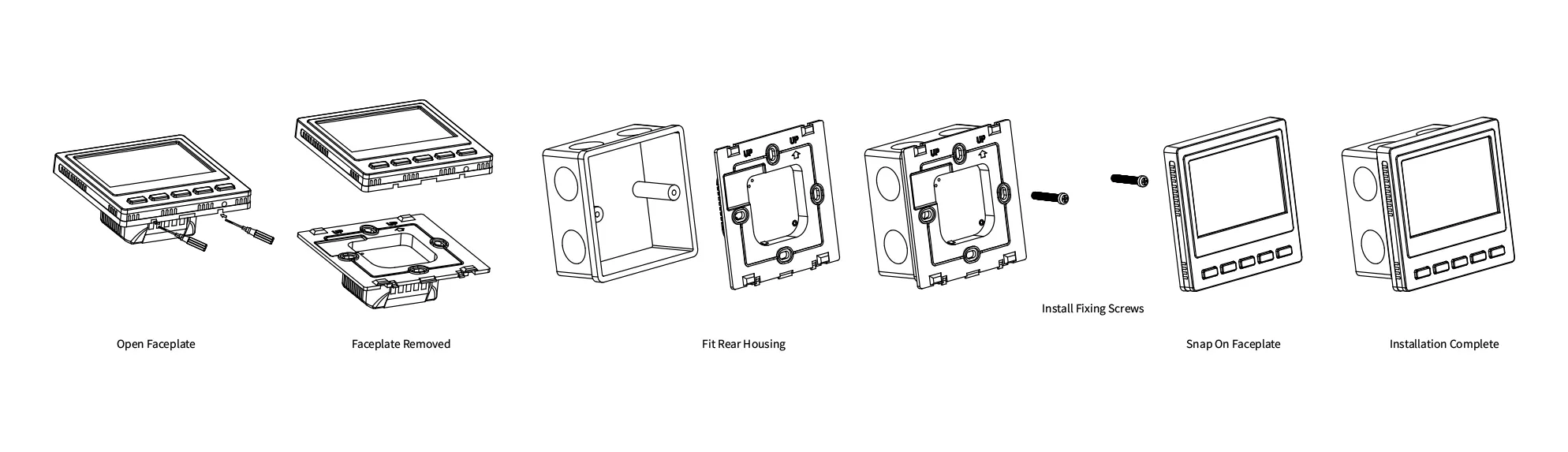

Compatible with EU/UK/CN Back Boxes
Universal backplate fits EU flush-mount boxes (60mm screw spacing) and UK/CN 86mm backboxes — simplifying retrofit installations and reducing inventory complexity.
Power source: 100-240VAC 50/60Hz
Maximum load electric current: 250VAC 3(2)A
Room temperature range: 5℃ to 35℃
Operating temperature range: 0℃ to 50℃
Display accuracy: 0.1℃

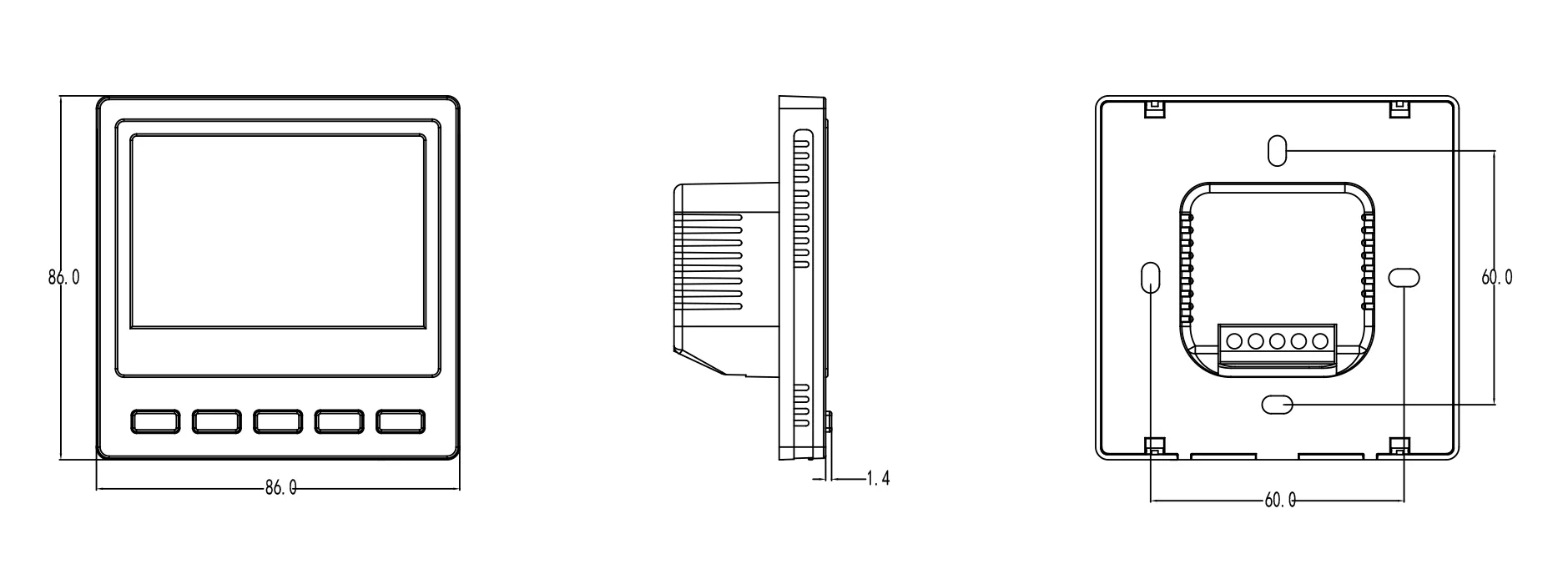

Dimensions: 86mm X 86mm X12mm
