SAS936WCH Wireless Multi-Zone Hydronic Thermostat and Wiring Centre Kit

Get a Quote

Key Functions

Eliminate Cabling Costs — Wireless RF Communication

Scale to 64 Zones — 8-Unit Cascaded Expansion

Integrate with BMS — Native Modbus Protocol

Connect to Smart Hubs — Optional Zigbee Module

Reduce Inventory Risk — One Kit for Boilers & Heat Pumps

Achieve Turnkey Efficiency — Fully Integrated Kit

Home Hydronic Thermostats SAS936WCH Wireless Multi-Zone Hydronic Thermostat and Wiring Centre Kit

Product Overview

SAS936WCH Wireless Multi-Zone Hydronic Thermostat and Wiring Centre Kit delivers cable-free multi-zone control for heating-only or reversible heating/cooling systems. Part of the WHL Series Hydronic Thermostats, it features battery-powered RF thermostats that communicate wirelessly with the central wiring centre - eliminating control wiring and making it ideal for retrofits, historic buildings, and extensions. Supports up to 8 cascaded wiring centres for 64 zones. Modbus, Zigbee, and boiler/heat pump universal control included.

Recommended reading: View WHL Series Hydronic Thermostats |View HP hydronic thermostats

Product Features

Wireless RF Communication

Battery-powered RF thermostats (868/433MHz) eliminate all control wires between thermostat and wiring centre. Drastically reduces labor and material costs — especially where wall-breaking is impractical.
8-Unit Cascaded Expansion (Up to 64 Zones)

Up to 8 wiring centres can be cascaded. Slave units sync heat/cool mode with the master — only the master controls boiler/heat pump output. Enables seamless expansion from 8 to 64 zones.
Native Modbus Protocol

Native Modbus RTU (RS485) enables seamless BMS integration for centralized monitoring, fault diagnosis, and energy reporting — ideal for commercial and large-scale residential projects.

Optional Zigbee Module

Optional Zigbee 3.0 module connects thermostats directly to smart home hubs (Amazon Echo Plus, Samsung SmartThings). Enables cross-device automation — lowering heating when windows open, or integrating with lighting schedules.
One Kit for Boilers & Heat Pumps

Supports traditional boilers (heating only) and reversible heat pumps (heating + cooling). One SKU serves both floor heating and heating/cooling projects — reducing inventory complexity and procurement costs.
Fully Integrated Kit

Pre-certified package combining multi-zone wireless thermostats and central controller. Guarantees 100% system compatibility — simplifying procurement and reducing project risk.

Product Selector

Model No.	Heat/cool	Heat only	Pipe	Speed fan	Programmable	Window card	Room card	External Sensor	Modbus RTU	WIFI	Manual
SAS936BWCHB-7-DFZ(N)+SCU217DE-485(N)	√				√			√	√	√	download

Product Parameters

SAS936WCH Wireless Multi-Zone Hydronic Thermostat and Wiring Centre Kit

Hydronic Thermostat

Power supply: 2x1.5V AA alkaline batteries(LR6)

Battery life:1 year

Temperature display: 0~50°C

Temperature setting range: 5~50°C

Temperature display accuracy: 0.1°C

RF wireless transmit range: 100m in open air

Zigbee wireless transmit range: 30m in open air

Dimensions:100*100*19.6mm

Wiring control centre

Power source:100-240VAC 50/60Hz

max current:10A

Load current output:250VAC 8(5)A

Dimensions:298 x 88 x 64mm

Request Free Sample

Product Dimensions

Product Installation

Product Application Scenarios

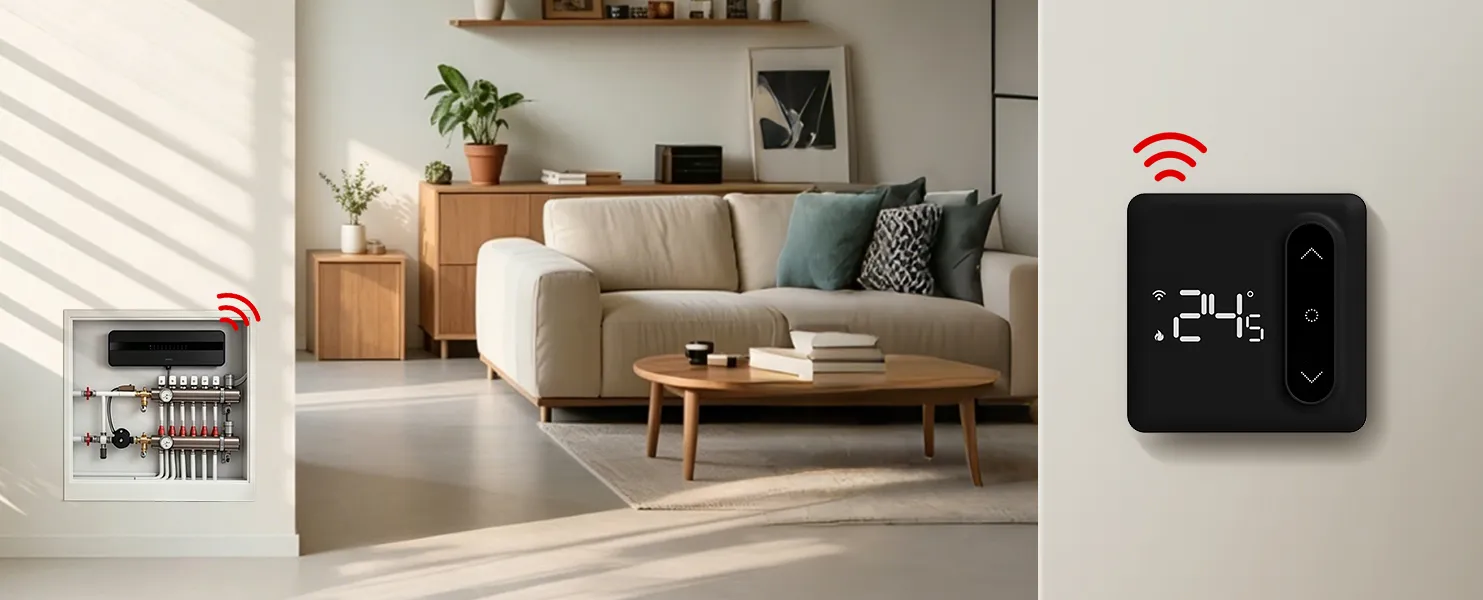

The SAS936WCH kit delivers cable-free multi-zone control for both heating-only and heating/cooling radiant systems. Its wireless RF architecture eliminates the need for control cabling, making it the ideal choice for retrofits, historic buildings, and large-scale projects where wiring is impractical. This wireless platform serves as the foundation for the Smart Multi-Zone Hydronic Control Solution in heating-only configurations, while also providing the wireless deployment option for the Pure Radiant Heating & Cooling Control Solution designed to optimize heat pump systems.
