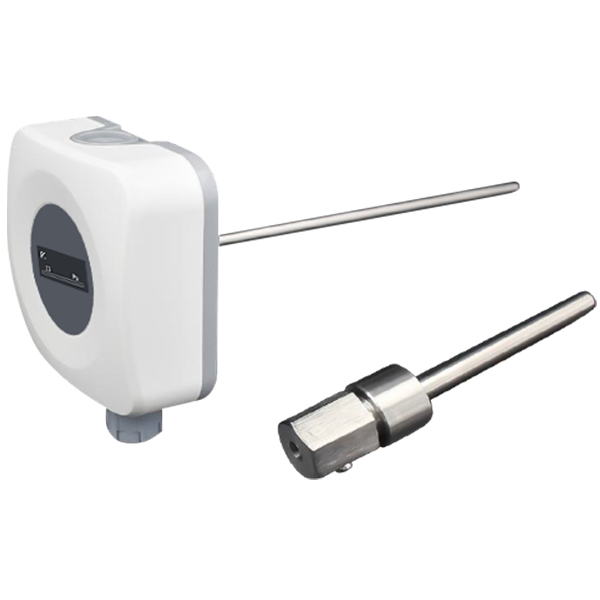

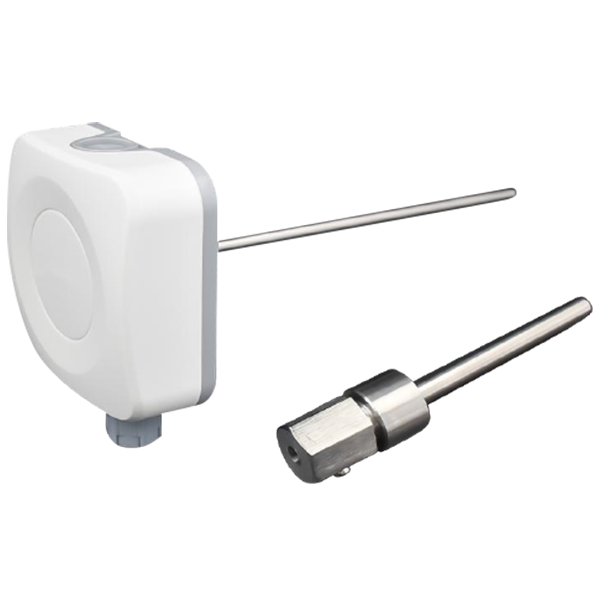

STH717W
LIQUID TEMPERATURE TRANSMITTER
Get a quote

Real-time monitoring of the temperature inside water pipes

Split pipe sleeve design ensures efficient and hassle-free installation

Supports optional LCD screen display

HomeProductCommercialSensorsHVAC Indoor Air Quality (IAQ)
Product Parameters

Power supply: Standard 24VAC/DC

Measurement range: 0~99%RH, 0~50°C/-20~80°C/0-100°C option

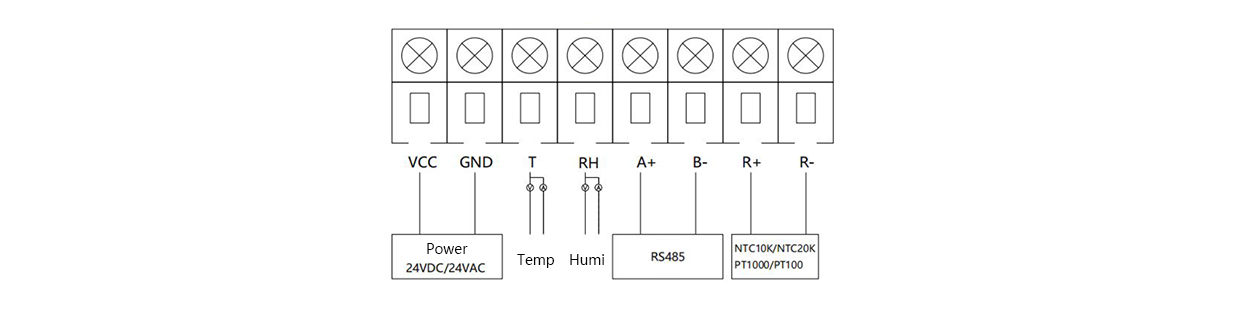

Wiring Standards: Cross-sectional Area of the Wire<1.5m㎡

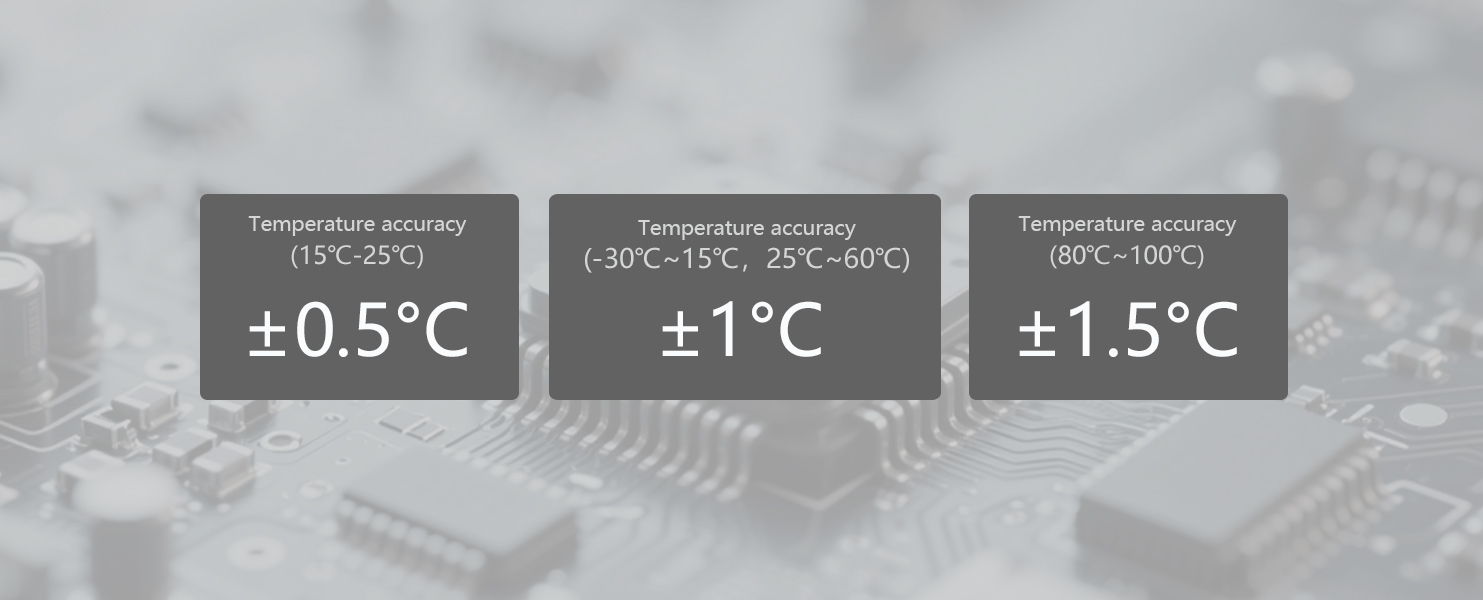

Accuracy: ±0.5°C(15℃~25℃);±1℃(-30℃~15℃, 25℃~60℃); ±1.5℃(80℃~100℃）

Signal Output: PT100/PT1000 Platinum Resistance Thermometer (RTD), 0-10V / 4-20mA Output, Standard Modbus RS-485

Power Consumption: <0.5W

Operating Environment: -20°C~60°C,  5%~95%RH, non-condensing

Storage Environment: -20°C~60°C, 5%~95%RH, non-condensing

Installation: Pipe Installation

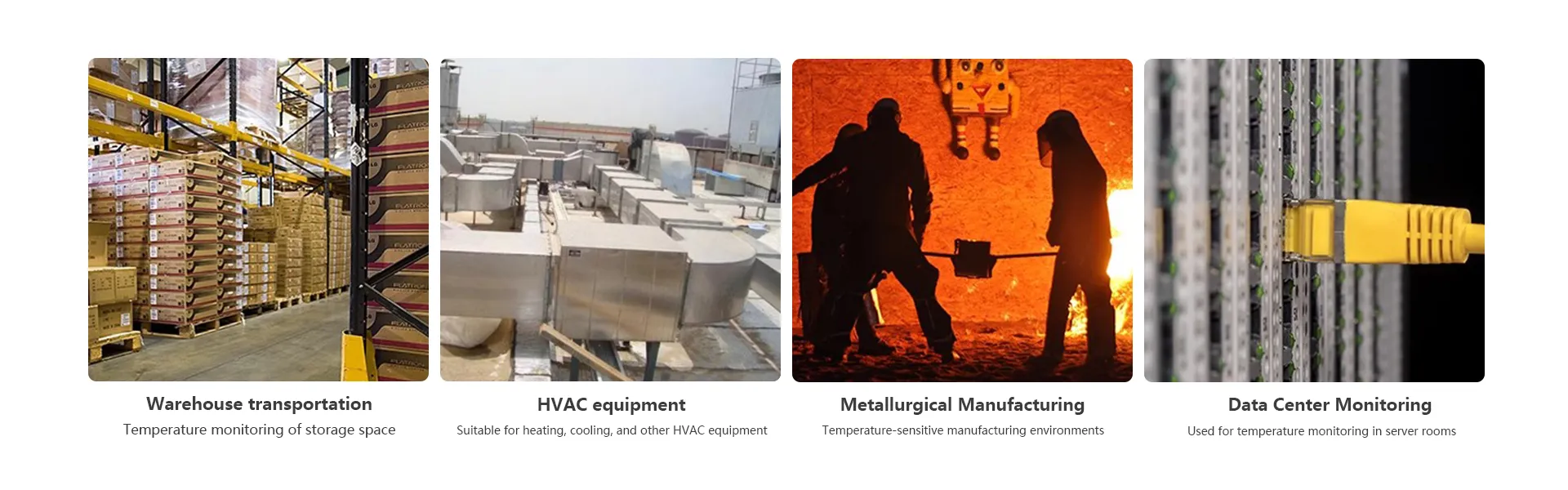

Comprehensive detection in various scenarios
Suitable for various measurement environments with strict space constraints.

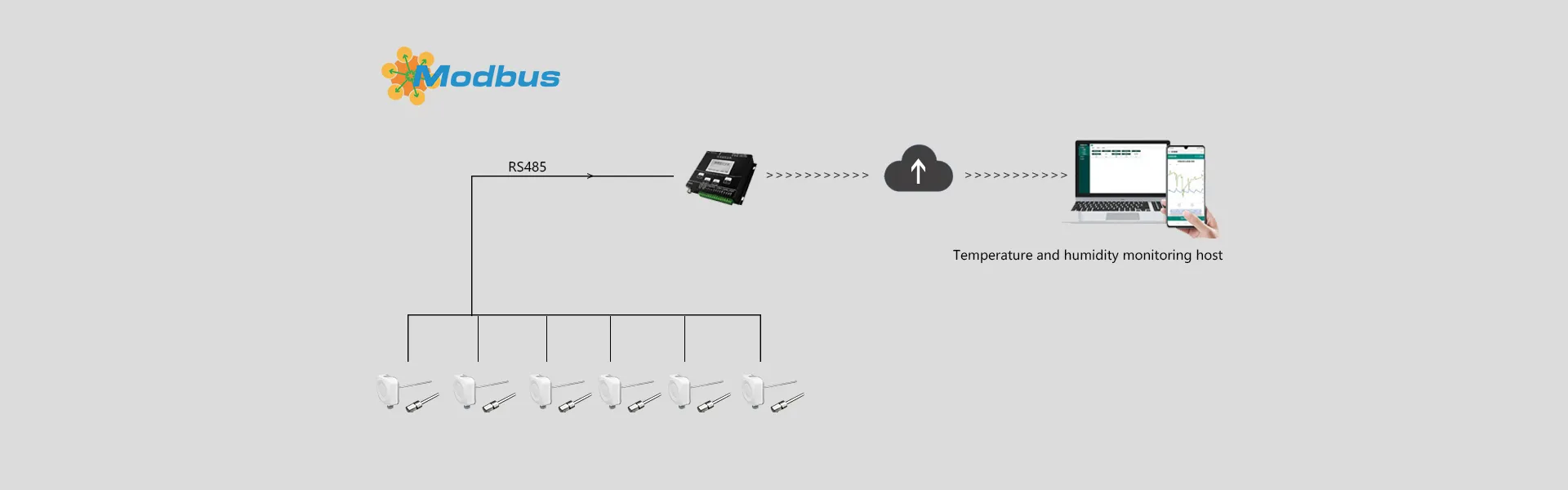

Support standard RS485
Centralized management of multiple transmitters.
High stability and precise measurement
Features a high-stability digital sensor and controller for reliable, drift-free performance.

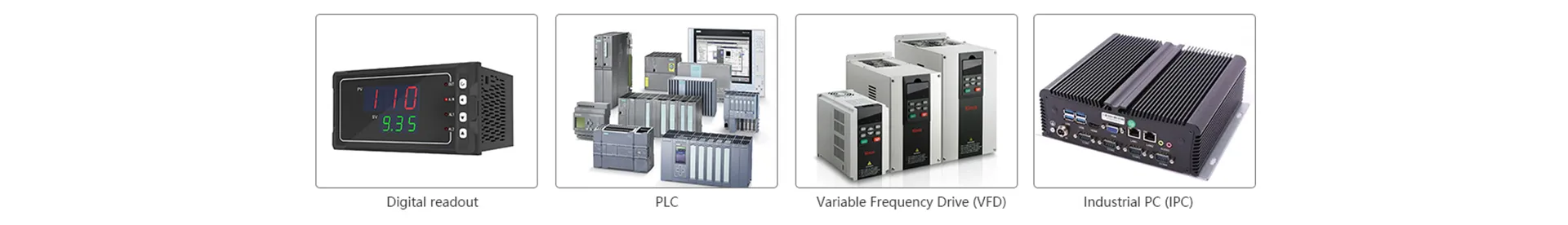

Standard industrial interfaces
Standard 4-20mA/0-10V/RS485 output
