SFS711

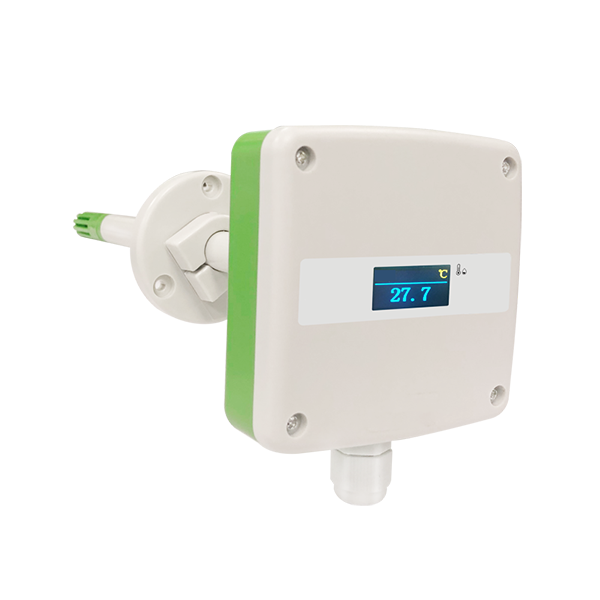

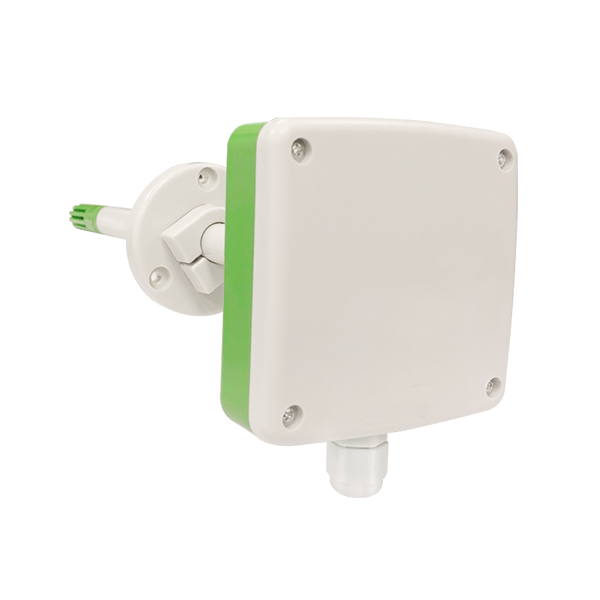

Industrial Air Flow Velocity Transmitter for HVAC Ducts

Get a quote

Utilizes a proprietary full-range secondary calibration method, ensuring excellent linearity and high accuracy

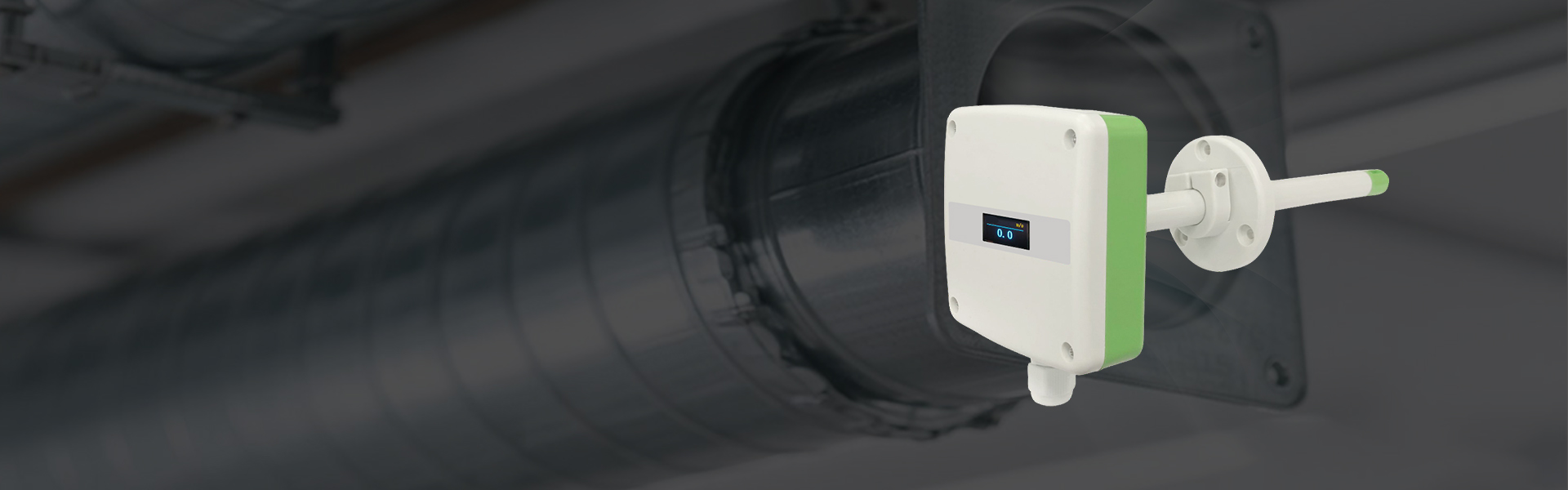

Applicable to harsh environments such as ventilation ducts, oil fume ducts,etc

Open-hole flange installation, high-quality silicone sealing ring, small air leakage and durable

Configurable duct cross-sectional area, real-time airflow volume calculation Transmission

Tool-free imported push-in terminal block, allowing quick and secure wiring DC and AC/DC power supply options, supporting long-distance power distribution

Home Product Commercial Sensors HVAC Indoor Air Quality (IAQ)

Product Parameters

Measurement range: 0~30m/s(Default)

Measurement temperature range: -40~80°C(-40~120°C option) (Only for Airflow

Velocity & Temperature Transmitter)

Power input: 10-30VDC(P≤0.5W) or 24V(-20%~+10%)AC/19-30VDC（P≤2.4W)

Measurement medium:Air,Nitrogen, Oil fume exhaust

Output signal:Modbus RS-485

Speed accuracy: ±（0.2M/S+2% of the measured value）

Temperature accuracy: ±0.5（25℃）(Only for Airflow Velocity&Temperature Transmitter)

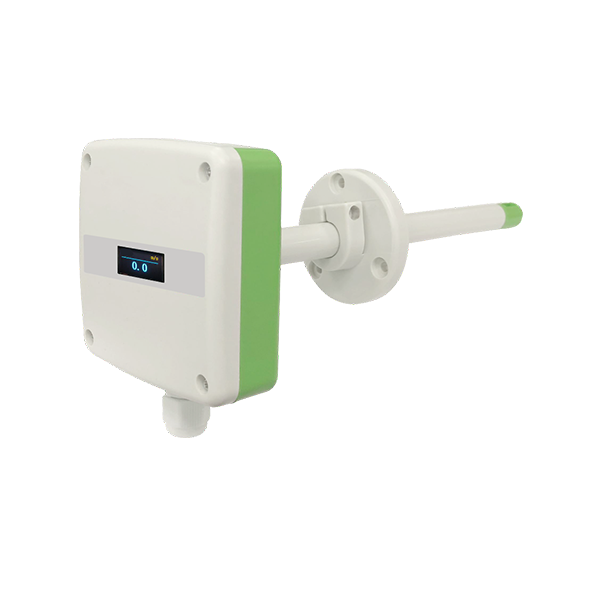

Air FLOW Velocity Transmitter

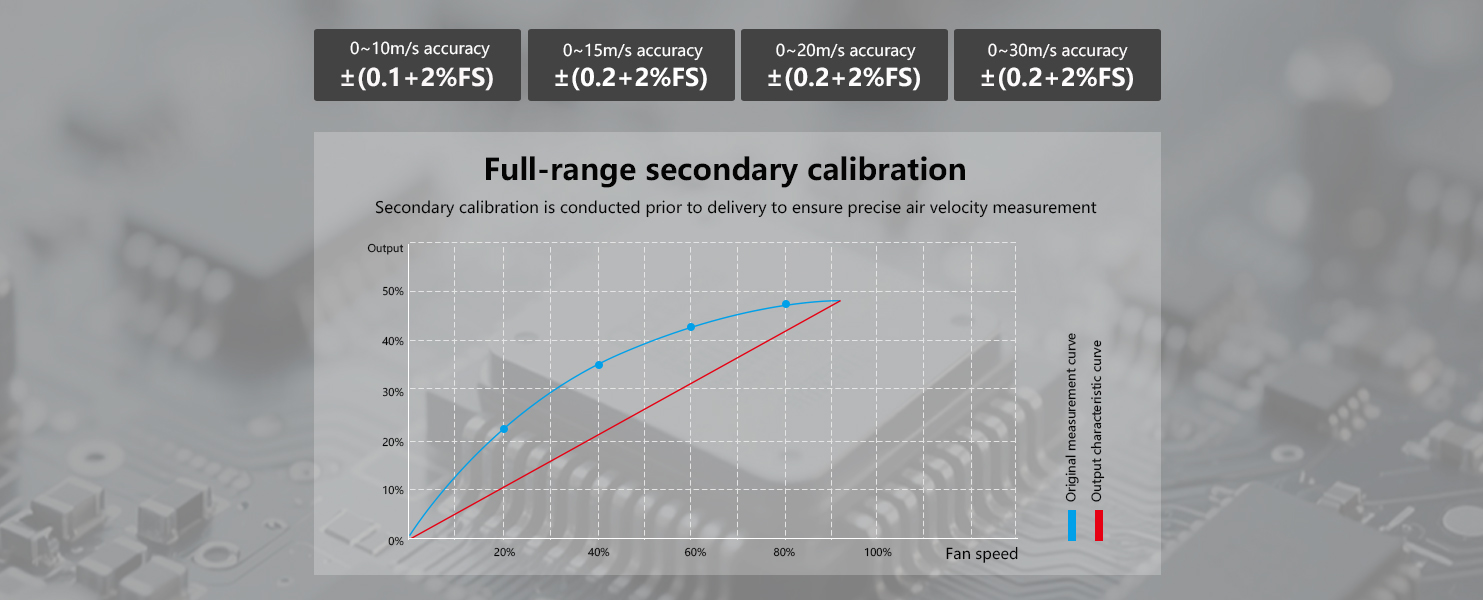

Full-range secondary calibration ensuresexcellent linearity and high accuracy

High-precision air velocity sensing unit

Optional air temperature control functionality

High-accuracy wind speed detection

Equipped with a built-in, self-developed high-precision air velocity sensing unit, offering fast response and the ability to accurately measure even low airspeeds. It features excellent stability, minimal drift, and high accuracy.

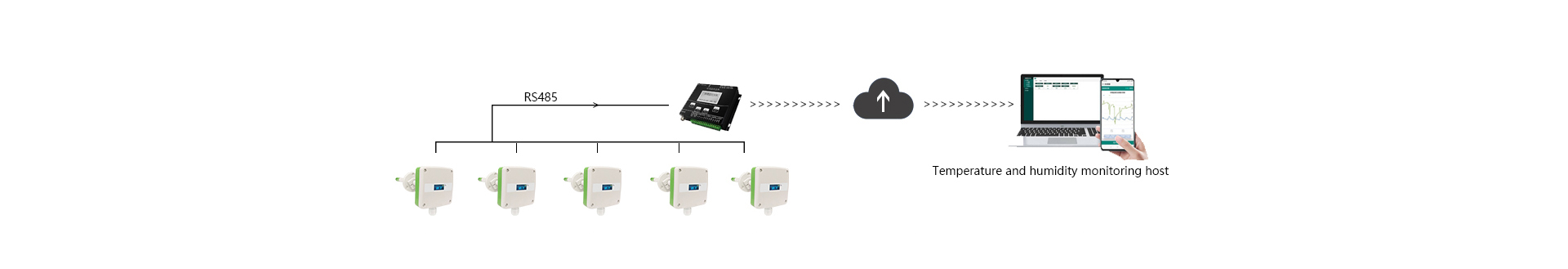

Supports standard RS485

Enables users to easily manage multiple transmitters centrally.

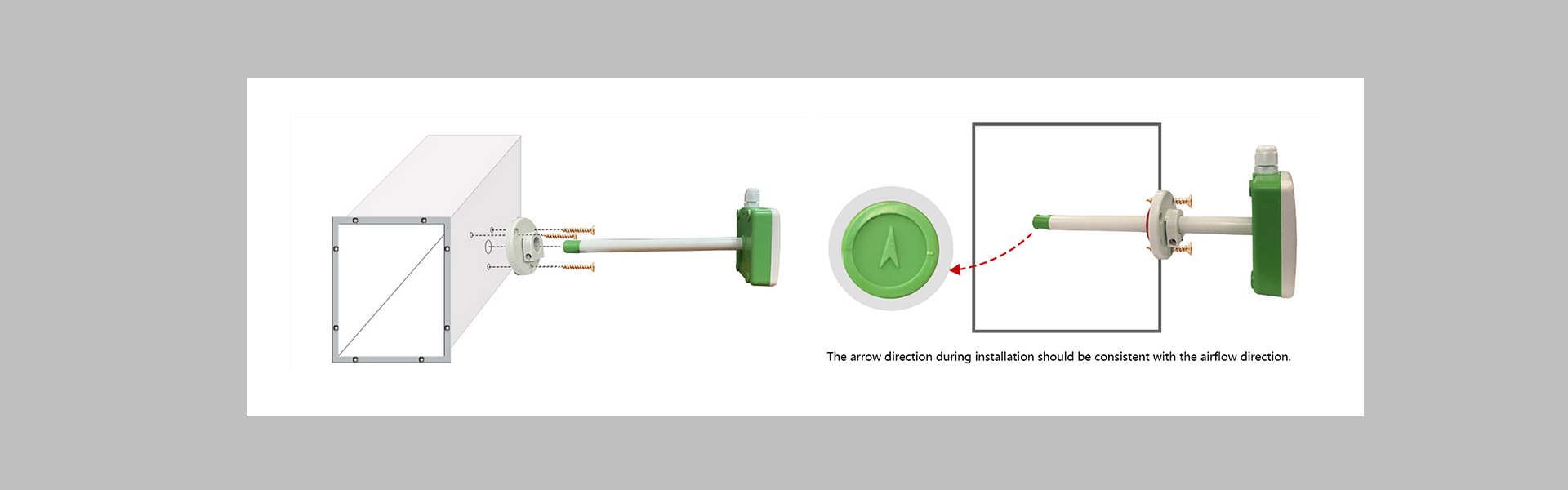

Installation

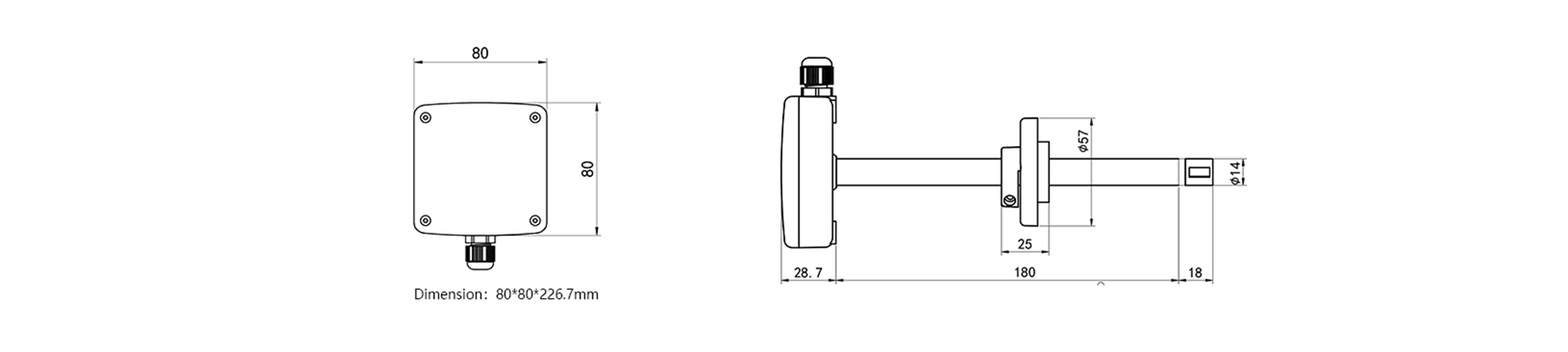

Dimensional drawing
