STH717

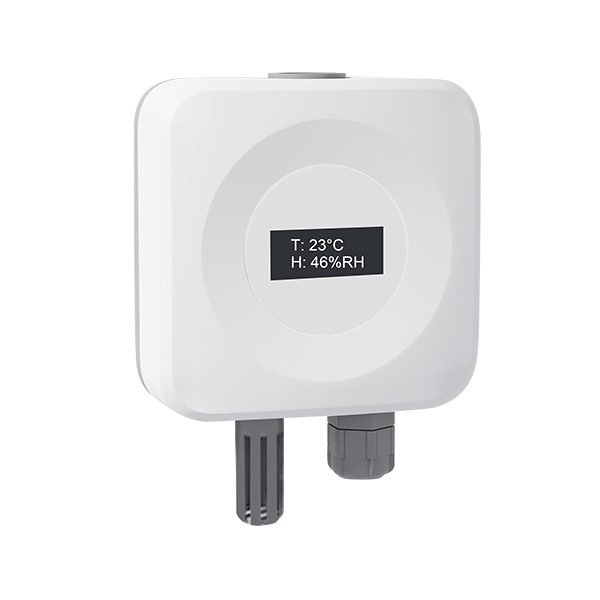

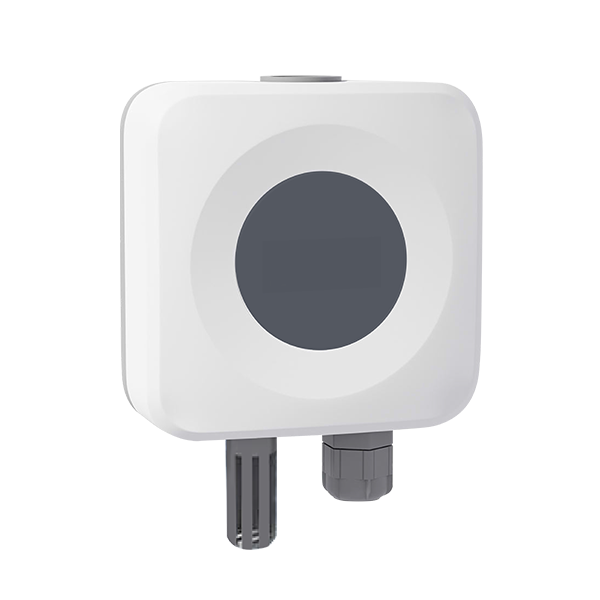

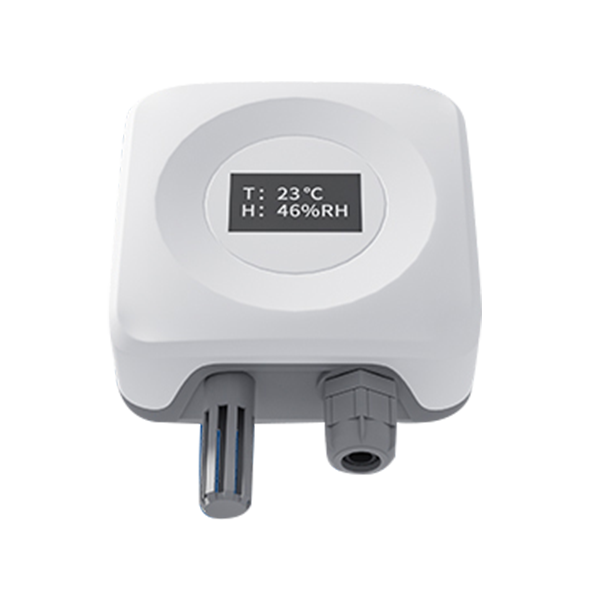

OUTDOOR WALL-MOUNTED TEMPERATURE AND HUMIDITY SENSOR

Get a quote

Real-time temp & humidity monitoring

Output 4-20mA/0-10V/RS485

Optional 1.3inch、2.8inch LCD Display

Home Product Commercial Sensors HVAC Indoor Air Quality (IAQ)

Product Parameters

Power supply： Standard 24V(10-30V); Customization AC220V

Measurement range： 0~50°C, 0~100%RH

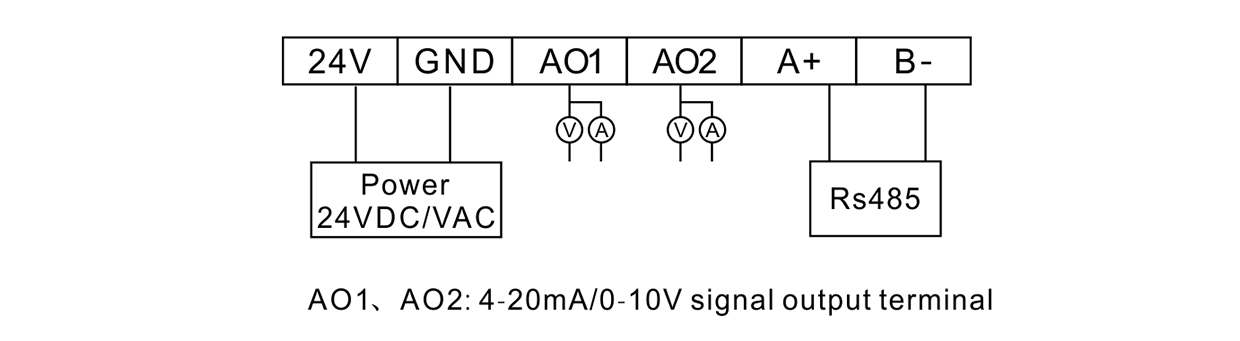

Wiring standard： Wire cross-sectional area>1.5m㎡, RS485 Baud rate 9600

Measurement accuracy： ±0.5°C, ±3%RH

Output signal： 0-10V/4-20mA/RS485 output

Operating environment： -20°C~60°C, 5%~95%RH, Non-condensing

Storage environment： -30°C~70°C, 5%~95%RH, Non-condensing

IP rating： IP65

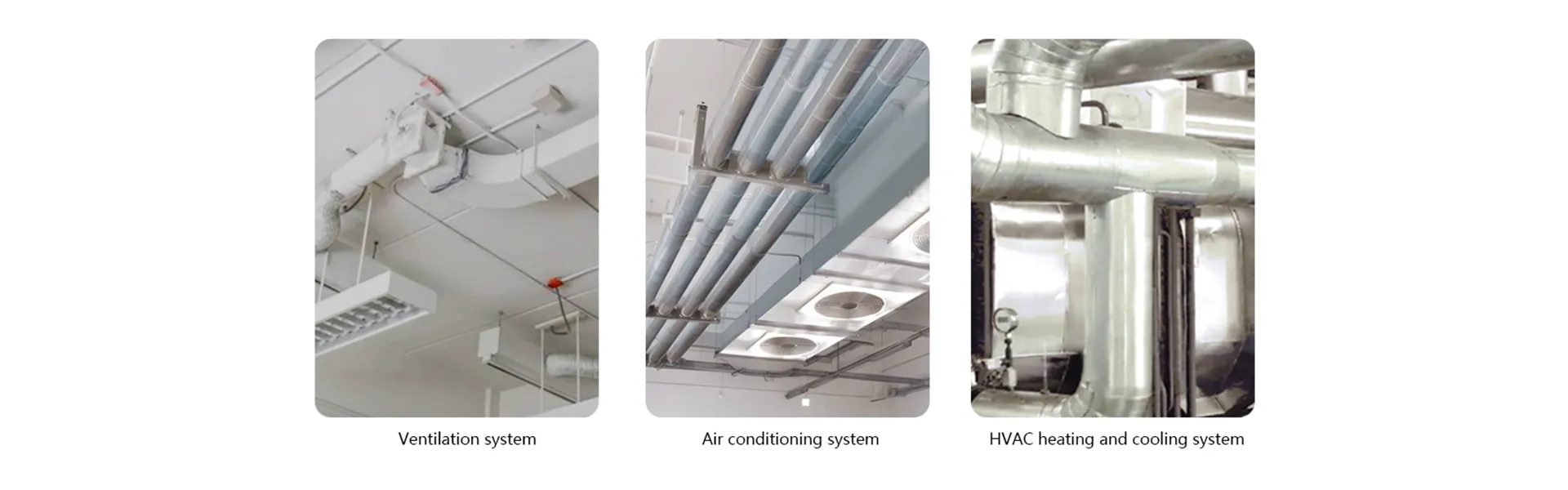

Comprehensive detection in various scenarios

Suitable for various measurement environments with strict space constraints.

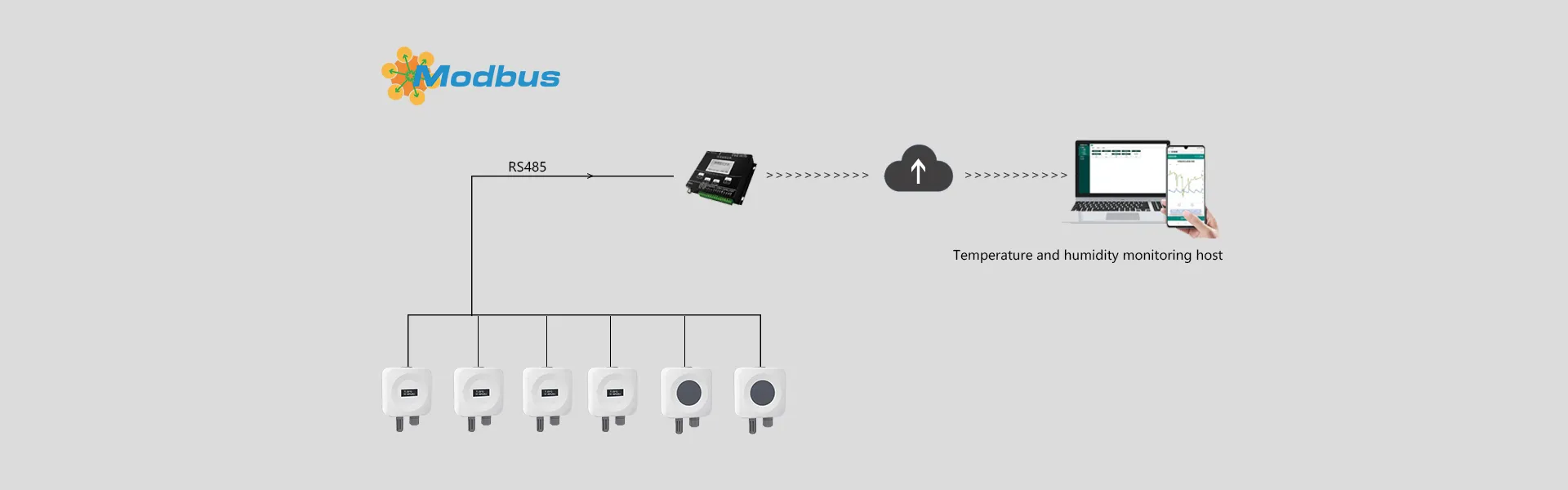

Support standard RS485

Centralized management of multiple transmitters.

High stability and precise measurement

Features a high-stability digital sensor and controller for reliable, drift-free performance.

Standard industrial interfaces

Standard 4-20mA/0-10V/RS485 output
