STH717F

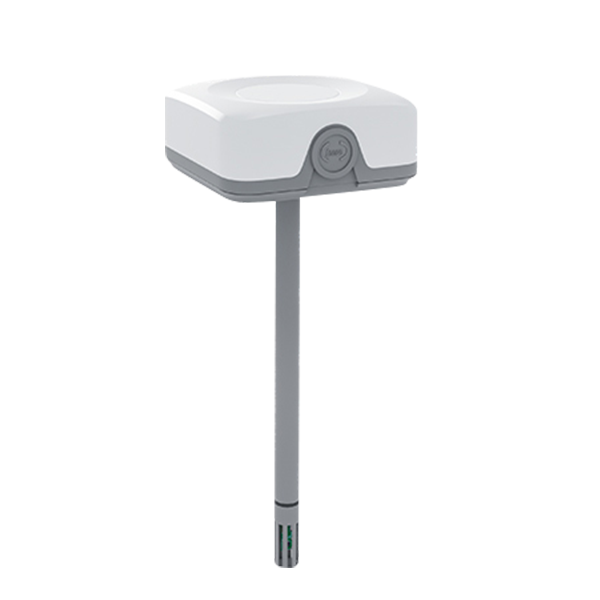

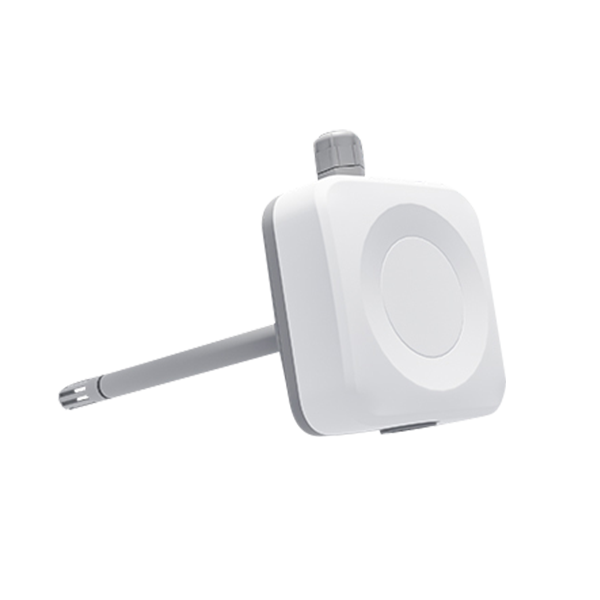

DUCT TEMPERATURE AND HUMIDITY SENSOR

Get a quote

Real-time temp & humidity monitoring

Output 4-20mA/0-10V/RS485

Optional LCD Display available

Home Product Commercial Sensors HVAC Indoor Air Quality (IAQ)

Product Parameters

Measurement: ：0~50°C/-40~60°C/0-100°C Optional；0~100%RH

Power Supply: 24VDC/AC

Output: 4-20mA/0-10V+RS485

Accuracy: ±0.5℃(Typical@25℃) , ±3%RH (Typical@25℃)

Power Consumption: Maximum:0.5W

Wiring Standard: Wire cross-section＜1.5m㎡

Material: ABS

IP Class: IP65

Operation Environment: Temperature: -20~+60℃ , Humidity: 5~95%RH ，Non-condensing

Storage Environment: Temperature: -30~+70℃ Humidity: 5~95%RH ，Non-condensing

Size(mm): 119*97*268mm

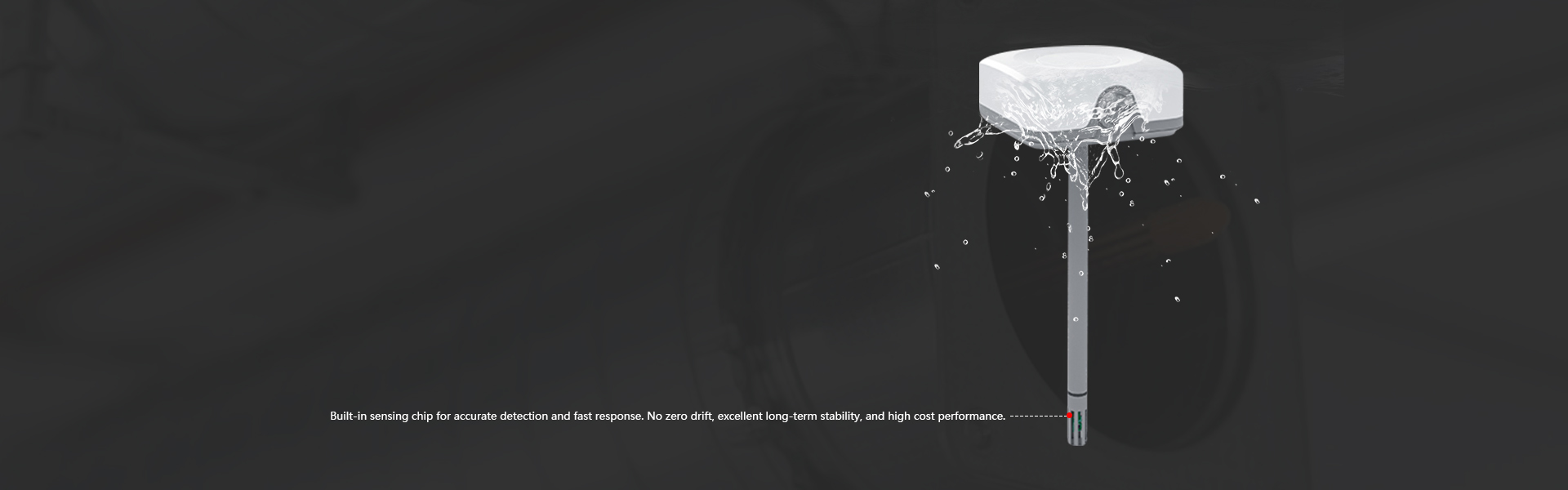

IP65 protection

Waterproof, moisture-resistant, and highly anti-interference

Unaffected by condensation

Flexible installation

Comprehensive detection in various scenarios

Suitable for various measurement environments with strict space constraints.

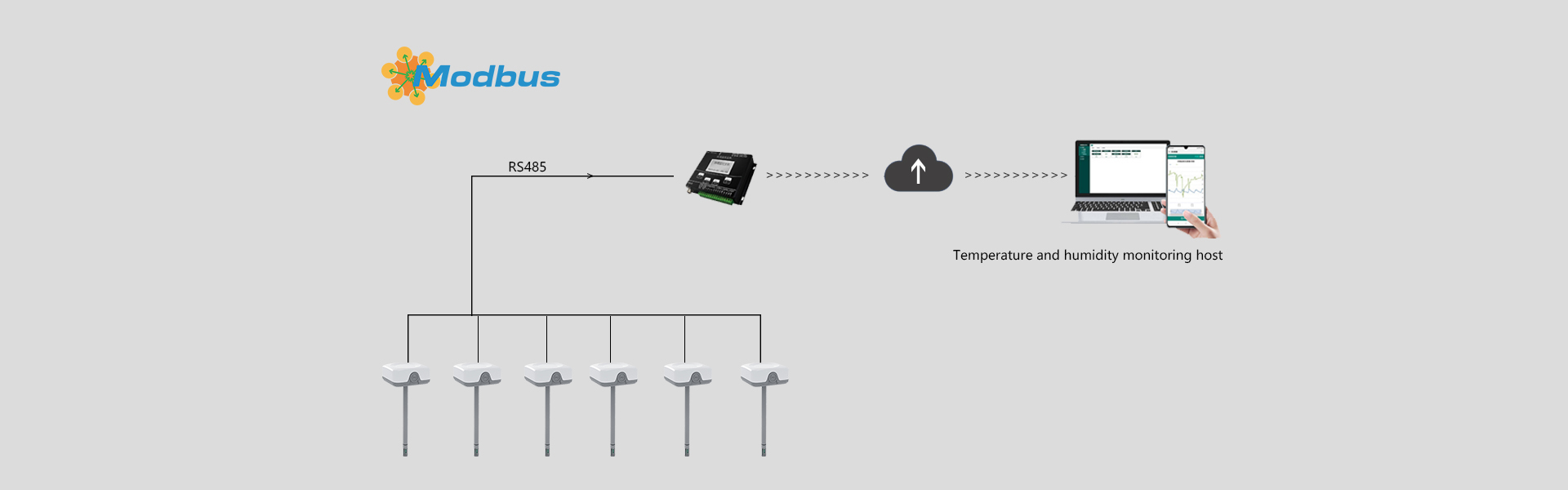

Support standard RS485

Centralized management of multiple transmitters.

High stability and precise measurement

Features a high-stability digital sensor and controller for reliable, drift-free performance.

Standard industrial interfaces

Standard 4-20mA/0-10V/RS485 output
