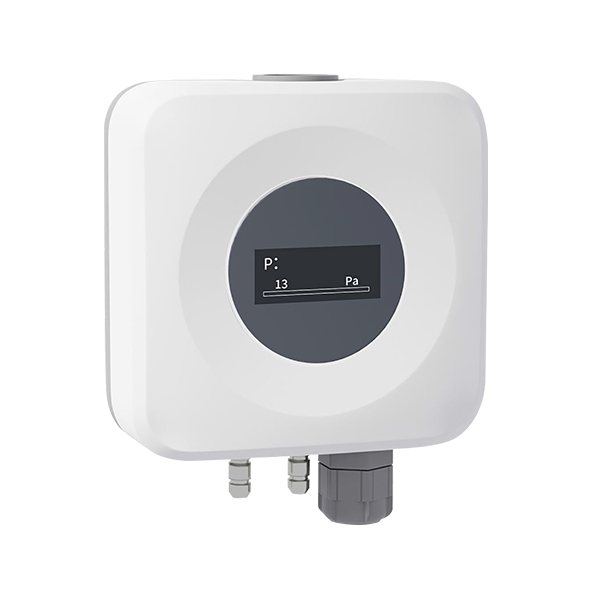

SPD716
Pressure Difference Transmitter
Get a quote

Suitable for HVAC systems, energy management systems, VAV and fan control, environmental pollution monitoring, static pipelines, cleanroom pressure monitoring, fume hood control, oven pressurization, and furnace ventilation control

Capable of measuring and monitoring gas differential pressure or gauge pressure, providing accurate pressure readings for building pressurization and airflow control

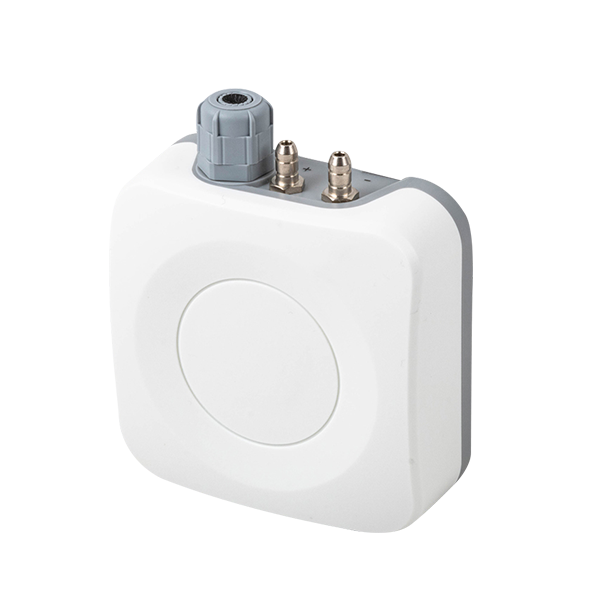

Open-hole flange installation, high-quality silicone sealing ring, small air leakage and durable

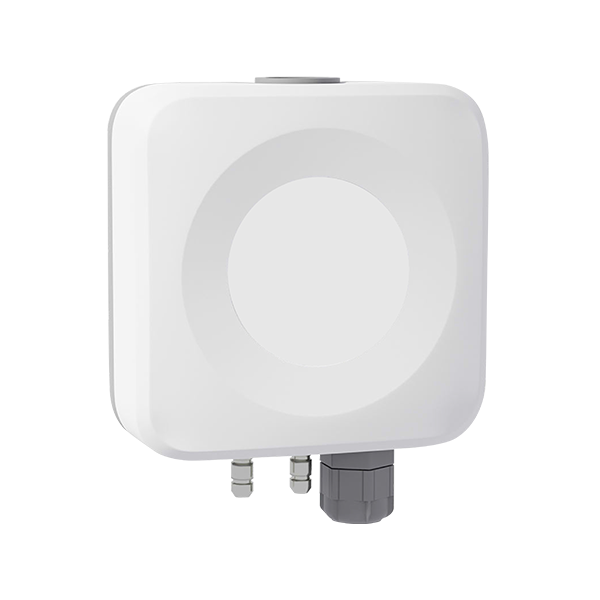

Features a split-type rotating wall-mount bracket for easy and quick installation

Optional 1.3-inch LCD display available

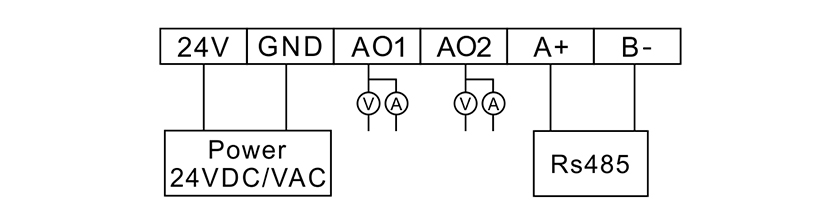

Output signals available:A: 0–10V voltage output,B: 4–20mA current output,C: RS-485 communication output

HomeProductCommercialSensorsHVAC Indoor Air Quality (IAQ)
Product Selector
Model No. 0–10V output 4–20mA output RS-485 WIFI Power Manual
SPD716 √ √ √
24VDC/AC
download
Product Parameters

Product Model: SPD716 Series

Measurement: 0~50/0~100/ ±50/ ±100Pa

Power Supply: 24VDC/AC

Output: 0-10V/4-20mA+RS485

Accuracy: ±1%F.S

Power Consumption: Average: ≤1w

Wiring Standard: Wire cross-section＜1.5m㎡

IP Class: IP65

Operation Environment: -10~65℃

Storage Environment: -10~65℃

Quality Standard: ISO9001

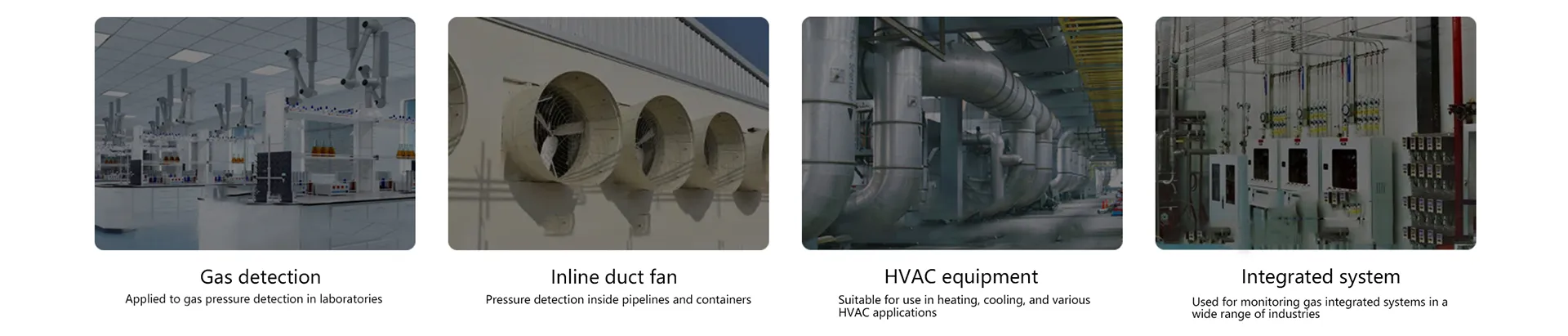

Comprehensive detection in various scenarios
For HVAC systems, energy management, VAV and fan control, environmental pollution control, static pressure monitoring in pipelines, clean room pressure monitoring, fume hood control, oven pressurization, and furnace ventilation control.

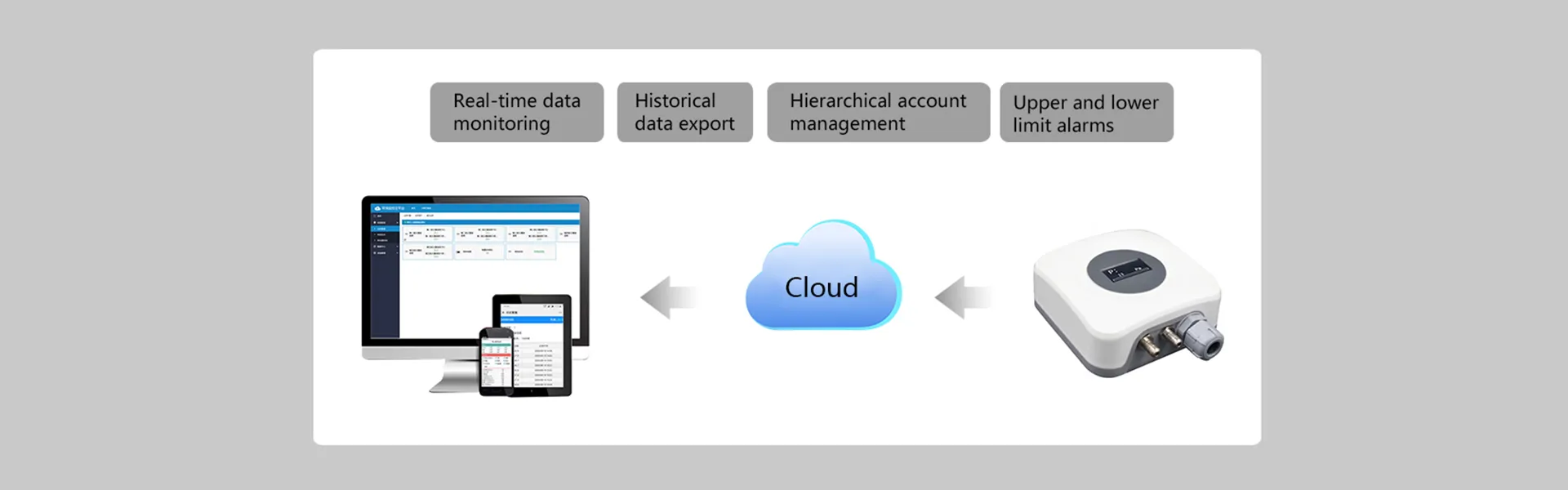

Supports cloud connectivity for instruments
Supports data viewing on both mobile and desktop devices for greater flexibility.
IP65 Protection rating
Waterproof, anti-corrosion, and dustproof; fearless in harsh conditions.

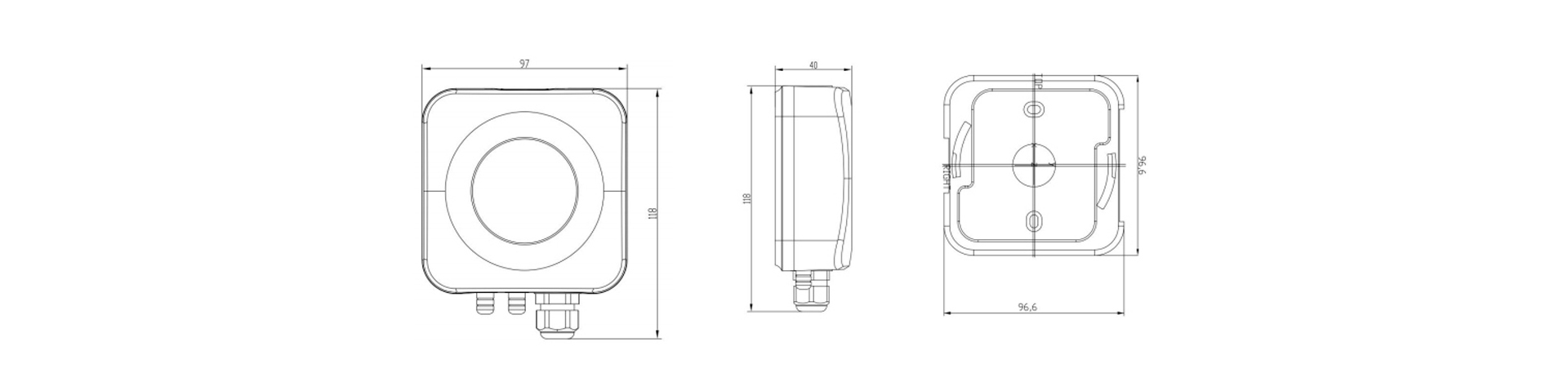

Dimensional drawing

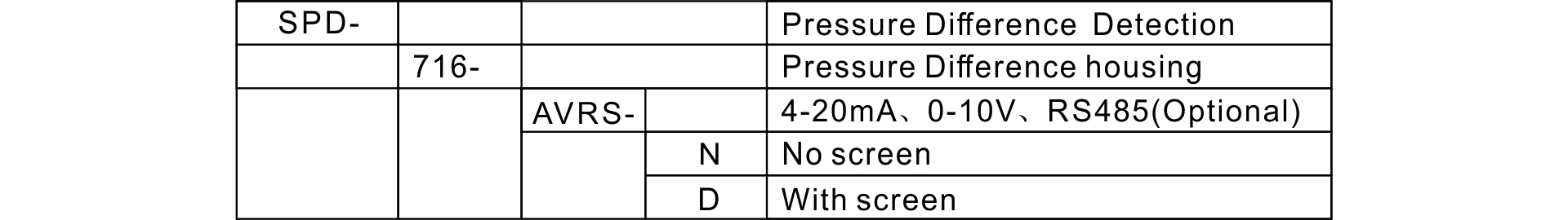

Model descrition
