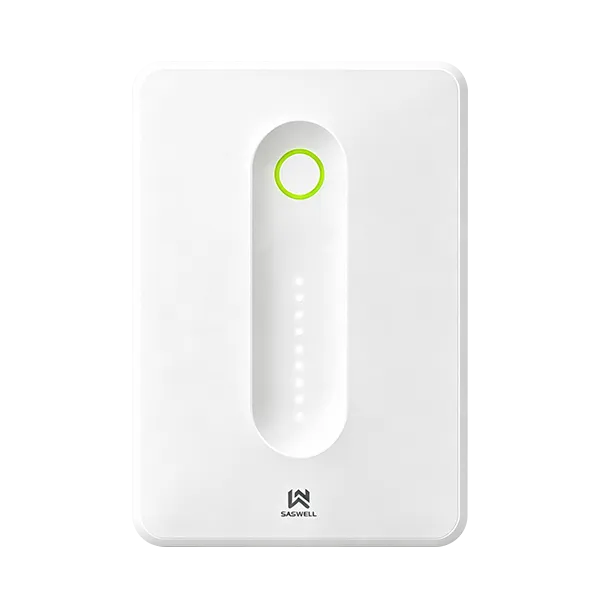

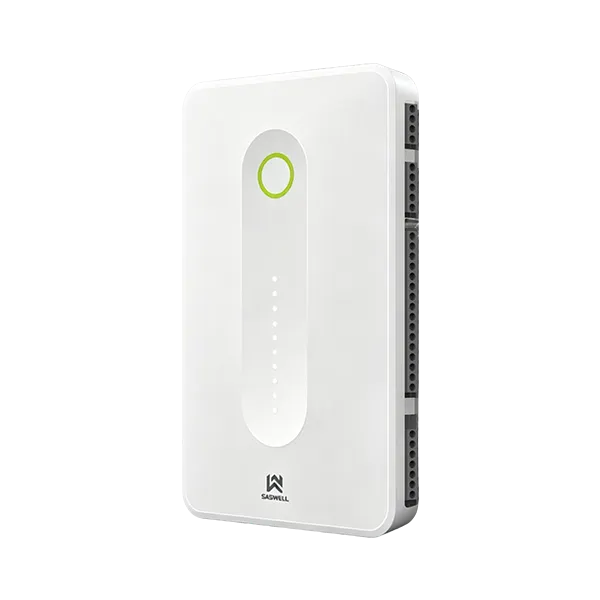

SCU220

Universal HVAC Zone Controller Wired and Wireless for 2 3 4 Zones

Get a quote

Maximum Versatility: Support 3H/2C Heat Pump and Dual Fuel systems.

Wired & Wireless: Cut labor costs with flexible wireless retrofit options.

Universal Compatibility: Works with Nest, Ecobee, and all 24V thermostats.

Quick Installation: Push-in terminals for 50% faster tool-free wiring.

Intelligent Protection: Built-in DAT sensor logic prevents equipment damage.

Scalable Zoning: Expandable 2 to 4 zone control for diverse properties.

Home Product Residential Thermostats Heat Pump Thermostats

Product Description

This universal zone controller is the ultimate "brain" for North American HVAC systems. It seamlessly integrates wired and wireless technology to simplify retrofits while supporting up to 3 stages of heating and 2 stages of cooling. Designed for reliability, it ensures precise climate control across multiple zones without proprietary brand locking.

Key Functions

Multi-Stage Control

Manage complex 3H/2C heat pump or boiler setups.
Hybrid Connectivity

Mix wired and wireless zones for easy installation.
System Diagnostics

Real-time LED indicators for instant troubleshooting.

Dual Fuel Logic

Optimized switching between heat pumps and furnaces.
Safety Interlocks

Integrated discharge air temperature (DAT) protection.
Universal Voltage

Compatible with standard North American 24VAC systems.

Product Parameters

Voltage: 24V AC (20V to 30V) Power: ~5VA Nominal, 10VA MAX
SmartLINK:UP to 20 zones (SmartZone-4X ONLY)
Storage TEMPERATURE: -40 °C to 65 °C (-40 °F to 150 °F)
Operating TEMPERATURE: -30 °C to 55 °C (-22 °F to 135 °F)
Operating HUMIDITY: 0 to 95% RH NON-Condensing

Product Application Scenarios

Perfect for North American residential retrofits and new builds where multi-zone comfort is required. It solves the challenge of running new wires in finished homes through wireless expansion, making it ideal for HVAC contractors upgrading multi-story houses or modernizing energy-efficient heat pump systems.

luxury apartments

Residential HVAC renovation

Heat pump retrofit

Partnership & OEM/ODM Support

We accelerate your market growth through deep technical collaboration and localized service infrastructure.

Customized OEM/ODM

Tailored hardware and logic to fit your brand identity.
Expert Tech Support

Direct access to R&D engineers for complex system integration.
Global Service Net

Reliable after-sales and regional technical hotlines for peace of mind.

FAQ

Yes. Our universal controller supports up to 3 Heat / 2 Cool stages, making it fully compatible with conventional systems, Heat Pumps, and Dual-Fuel (Hybrid) setups. It’s designed to be the versatile "brain" for 95% of North American HVAC equipment.

Absolutely. This is a brand-neutral panel. It works seamlessly with any standard 24VAC thermostat, allowing you to offer customers their favorite smart home interface while maintaining robust zoning logic.

Our wireless option eliminates the need to run new thermostat wires through finished walls. By using a high-penetration RF signal, you can add zones in multi-story homes in a fraction of the time, significantly reducing labor costs.

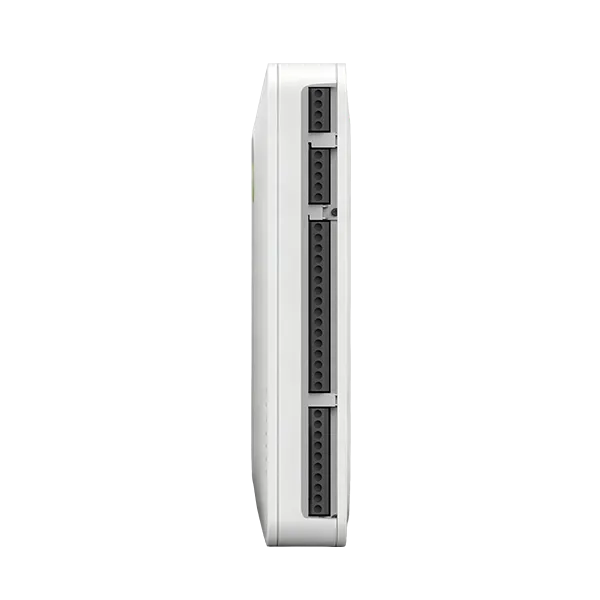

We’ve implemented Push-In Terminals for all connections. No screwdrivers are required, which speeds up wiring by 50% and ensures a secure, vibration-proof connection that reduces future service calls.

Yes. The panel features integrated Discharge Air Temperature (DAT) sensor logic and anti-short cycle timers. These safeguards prevent the coil from freezing or the heat pump from overheating, extending the lifespan of the HVAC equipment.

Yes. Our controllers are scalable. You can easily configure the panel to manage 2, 3, or 4 zones, allowing you to stock one SKU for multiple residential layouts.

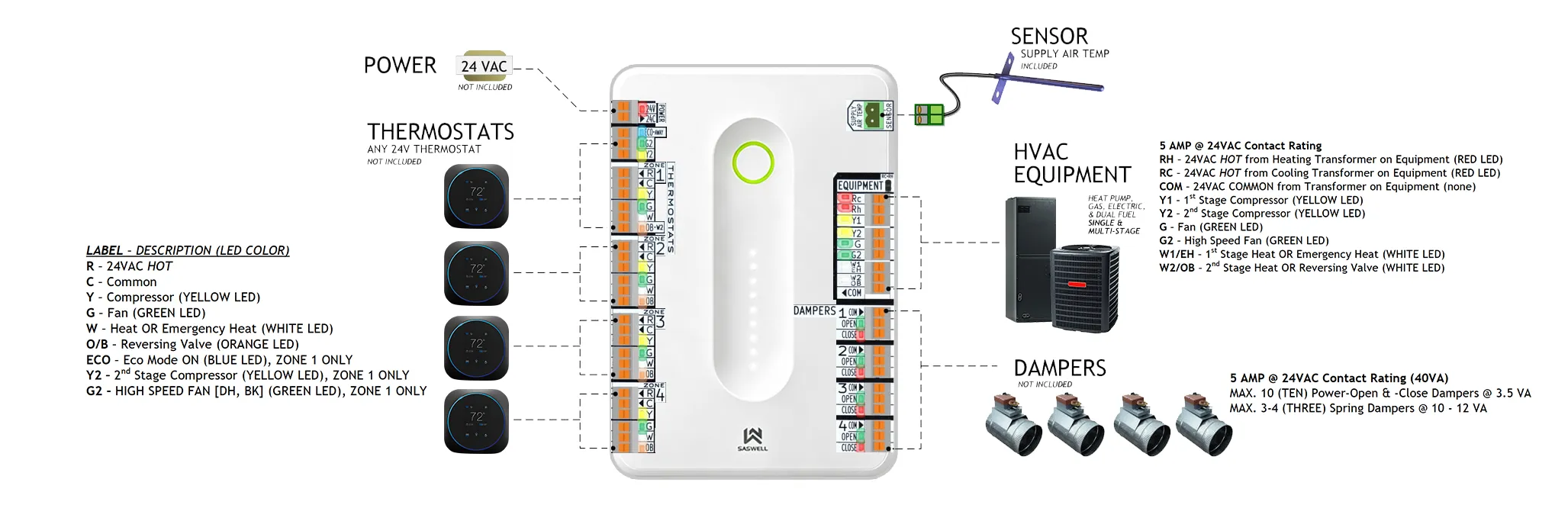

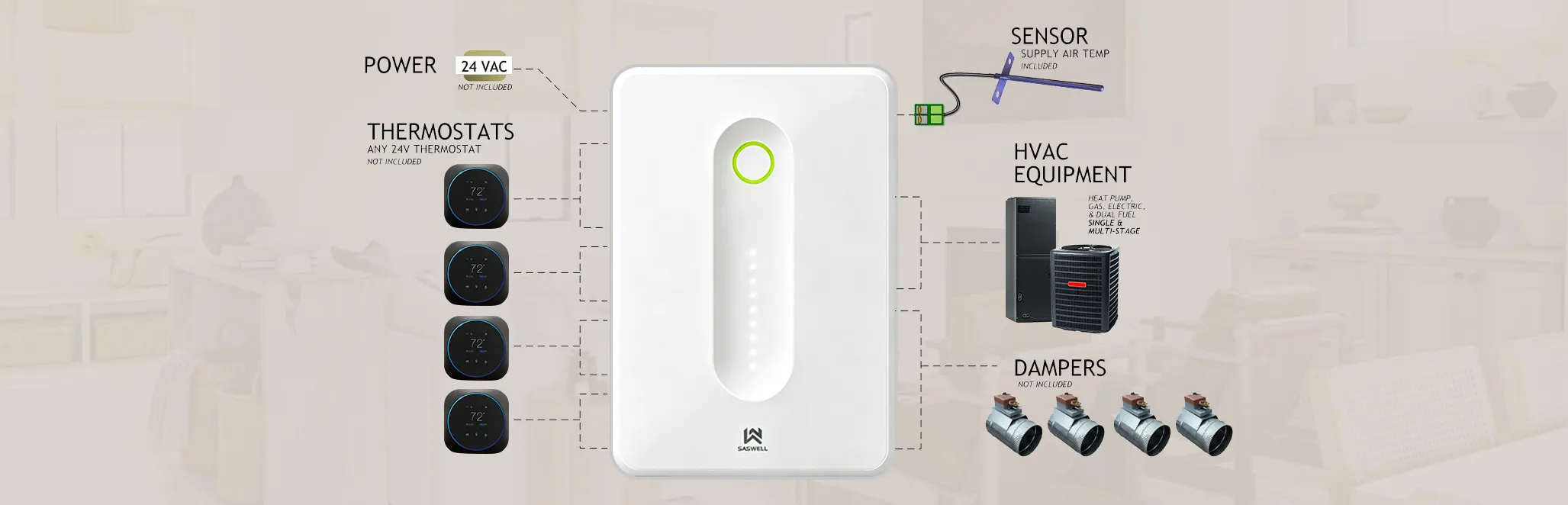

We offer direct access to our R&D engineering team for complex integration queries, along with detailed wiring diagrams and a dedicated technical hotline to ensure your project is completed without downtime.

The panel features intelligent dual-fuel logic. It automatically manages the transition between the heat pump and the auxiliary heat source based on efficiency or temperature setpoints, ensuring optimal comfort and energy savings.
