SAS965HMI

Universal VAV HMI 4-inch Color Display Dedicated OEM Interface

Get a quote

System Synergy: Tier-1 alternative for VAV controllers.

Vivid 4" Display: Premium color UI for branded VAV boxes.

7-Day Agile UI: Custom branding in one week, zero R&D.

Non-polar PLC: Error-proof 2-wire "Plug & Play" setup.

Open Hardware: Escape locked-in brand ecosystems.

HD Monitoring: Real-time CO2, airflow, and temp data.

Demonstration of OEM customization on the VAV HMI, featuring custom branding options and tailored 7-day scheduling software interface for specific manufacturer needs.

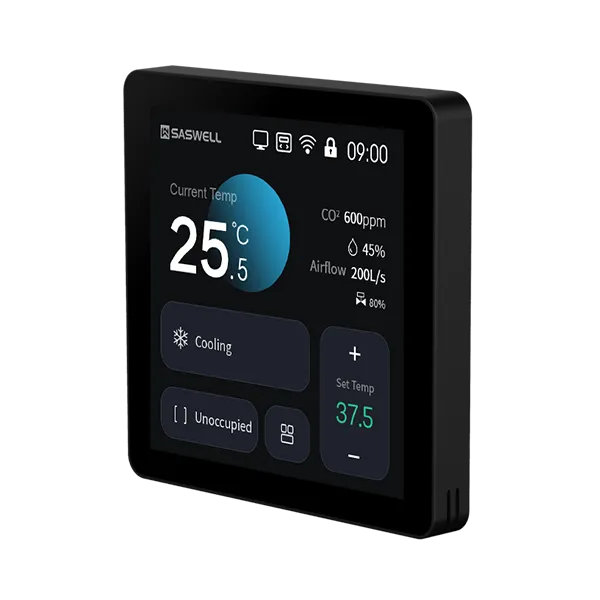

Close-up side view showcasing the ultra-slim thickness and high-quality build of the VAV dedicated interactive interface.

Home Product Commercial Thermostats 4-Inch Color Screen Thermostats

Product Feature

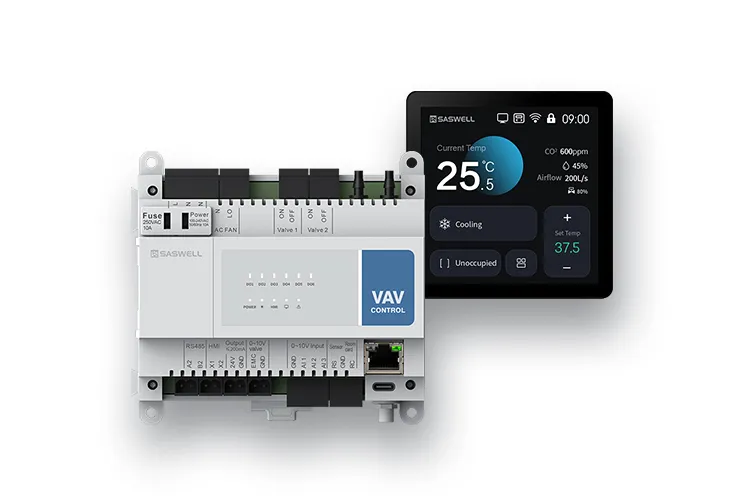

The Saswell 4-inch Color PLC HMI is a dedicated interactive terminal engineered to complement our VAV controller series. It is not a standalone universal display, but a core component of our open-architecture VAV strategy. By pairing this HMI with our controllers, OEMs can deliver a professional, branded solution that rivals Siemens, Johnson, or Honeywell in performance while offering far greater flexibility in hardware selection and visual identity.

Key Functions

Exclusive System Integration

Deeply optimized communication protocol ensures lag-free interaction with our VAV controllers.
Rapid Brand Empowerment

7-day UI turnaround allows you to market a fully branded HVAC solution under your own name.
Error-Proof Connectivity

Non-polar 2-wire PLC technology ensures the HMI and controller connect seamlessly without polarity risks.

Advanced Data Visualization

Provides clear, HD feedback for hospital isolation rooms and lab fume hoods.
Strategic Flexibility

Empowers you to use 0-10V universal actuators while maintaining a high-end, unified system appearance.

Product Parameters

·Power supply: 100~240VAC 50/60Hz

·Standby Power Consumption:2W

·Display accuracy:0.1C

·Temperature setting step:0.5C

·Communication:Modbus/ 24VDC-PLC

·Displayed temperature range: 0~70C

·Operating temperature range: 0~50C

·Temperature setting range: 5~35C

·1Prating:IP21

·Dimensions: 86*86*11mm

Customizable screen brightness

Three-Level screen brightness adjustment

Adaptive sleep mode for perfect nighttime comfort

Temperature shifts intelligently over 8 hours to enhance rest and reduce power consumption.

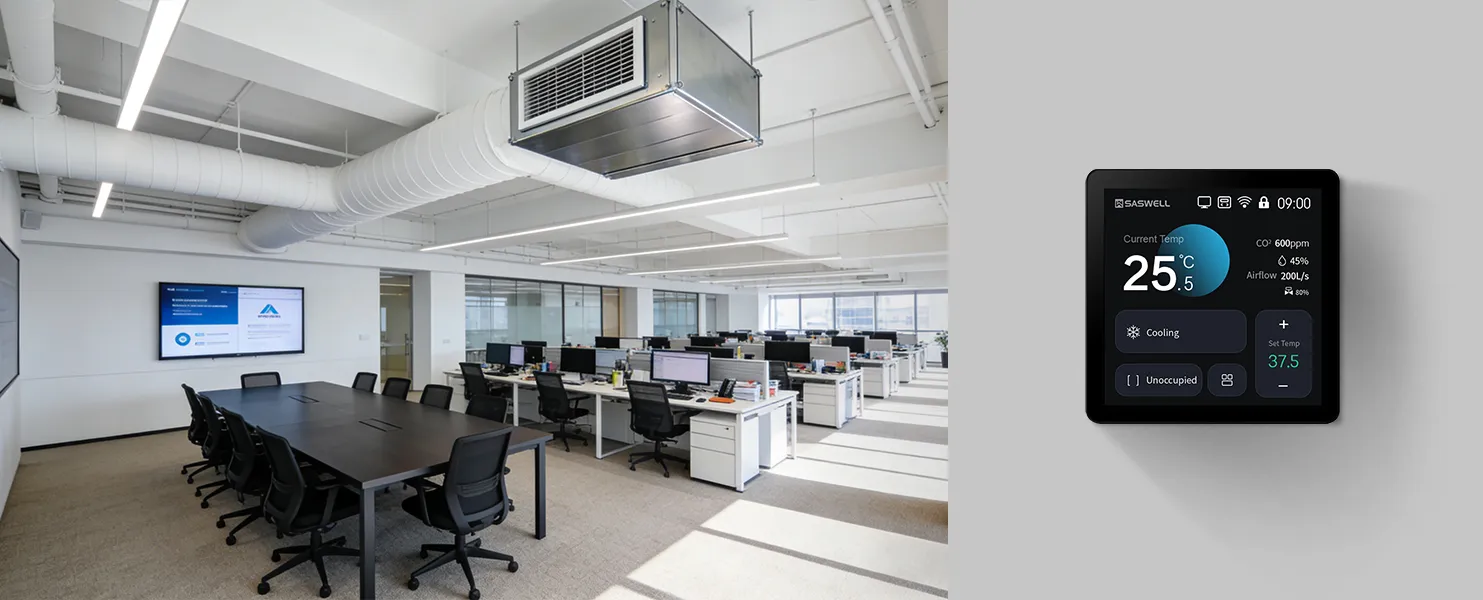

Product Application Scenarios

The premier choice for VAV OEMs seeking to upgrade restrictive Tier-1 displays in high-spec projects. It is essential for hospital isolation rooms, professional laboratories, and premium office zoning where technical reliability and distinct brand identity are paramount.

Partnership Support

We provide comprehensive OEM empowerment to ensure your brand leads the market with professional technical reliability.

7-Day Agile Customization

Rapid UI and language prototyping for unique branded experience.
Professional Tech Support

Direct R&D access for seamless logic and PID system integration.
Global Warranty Service

Reliable technical response and hardware coverage worldwide.

FAQ

This HMI is a dedicated interactive terminal engineered exclusively for our VAV controller series.

It utilizes a specialized PLC protocol for deep data synchronization; therefore, it cannot be directly connected to third-party controllers.

It uses Non-polar 2-wire PLC technology, handling both communication and power over just two wires.

This design eliminates the need for a separate power cable, as the HMI draws power directly from the controller.

We provide rapid localization support, delivering your exclusive language firmware in just 7 working days.

Whether you need English, Spanish, Arabic, or any other language, we can deploy it quickly through our agile customization process.

We offer two tiers: Lightweight Customization and Full Customization.

Lightweight: Includes main UI style adaptation, brand logo integration, and standard 485/BACnet support.

Full Customization: Supports complete UI reconstruction (all menu levels), exclusive ID/mold modifications, customized function development, and other protocols.

Lightweight customization (including language, logo, and main UI) features a 7-working-day agile delivery.

Full customization involving specific function development is generally delivered within 60 days.

It is an error-proof solution; there is no polarity requirement when connecting, which prevents terminal burnout due to wiring errors.

This technology simplifies installation and reduces labor costs by more than 50%.

Yes. Our PLC technology runs high-speed data over standard 2-core cables, allowing a premium color upgrade without re-cabling.

Dedicated VAV HMI for OEM controllers

4-inch color touchscreen interface

PLC communication VAV display

custom UI HVAC interface

VAV system branding solution
