SAS936WHB Matter-enabled boiler thermostat for residential home heating applications

SAS936WHB Matter Boiler Thermostat for Boiler/Heat Pump

Key Functions

Smart Home Ready – Matter protocol enabled.

Universal Compatibility – Works with 99% of boilers & heat pumps.

Energy Saving – 7-Day programmable scheduling.

Wireless Setup – Battery-powered, no wiring needed.

Flexible Placement – Wall-mountable or tabletop stand.

Unified Control – Single thermostat for whole-home heating.

Product Description

SAS936WHB Matter Boiler Thermostat for Boiler & Heat Pump is a next-generation smart thermostat designed for both traditional boiler systems and modern heat pumps. As part of the Boiler Thermostats product family, it leverages the Matter protocol to deliver seamless smart home integration, 7-day programmable scheduling, and flexible wired/wireless installation options — making it the ideal choice for residential and light commercial heating projects.

Recommended reading: View Boiler Thermostats

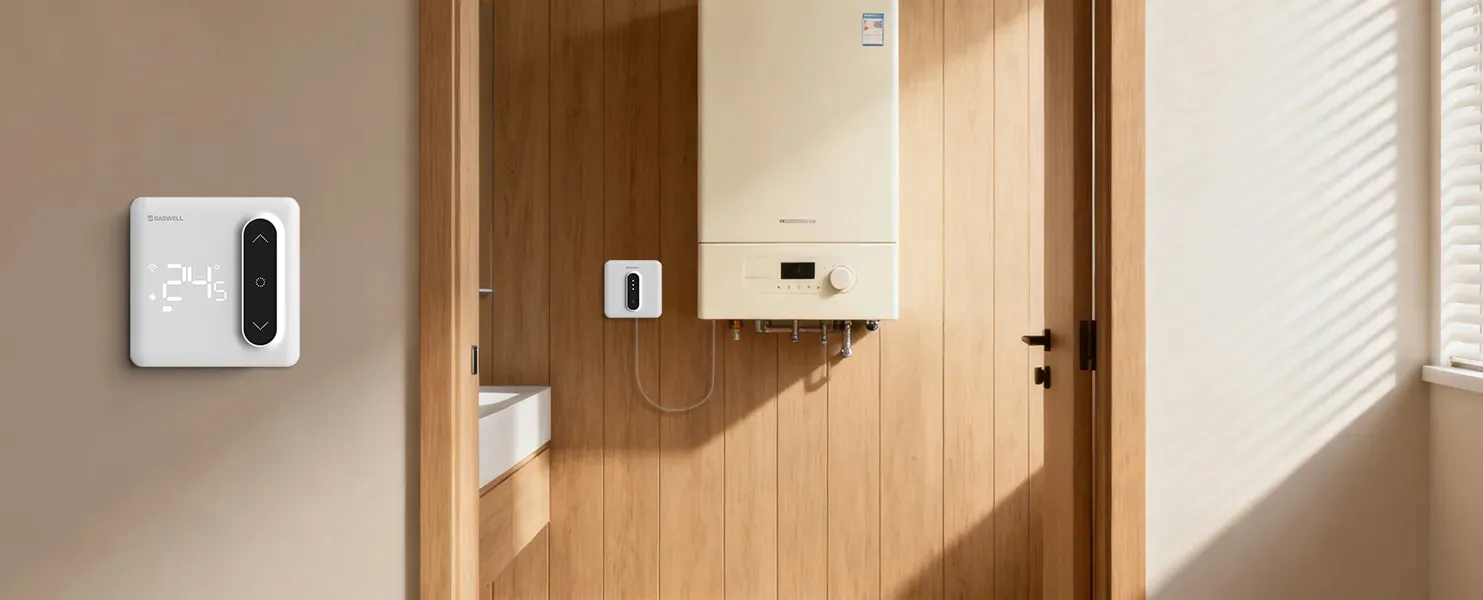

SAS936WHB Matter-enabled boiler thermostat installed in bathroom boiler room scene

Product Features


Product Selector

Model No. Heat Wired Wireless Zigbee Programmable WIFI APP RF Receiver OpenTherm Power Manual
SAS936WHB-7-RF-APP(TY)



Battery download
SAS936WHB-7-RFZ


Battery download
SAS936WHB-7-ZT5




Battery download
SAS936RHB-7-Z03




Battery download
SAS936WHB-7-OT


Battery download

Product Parameters

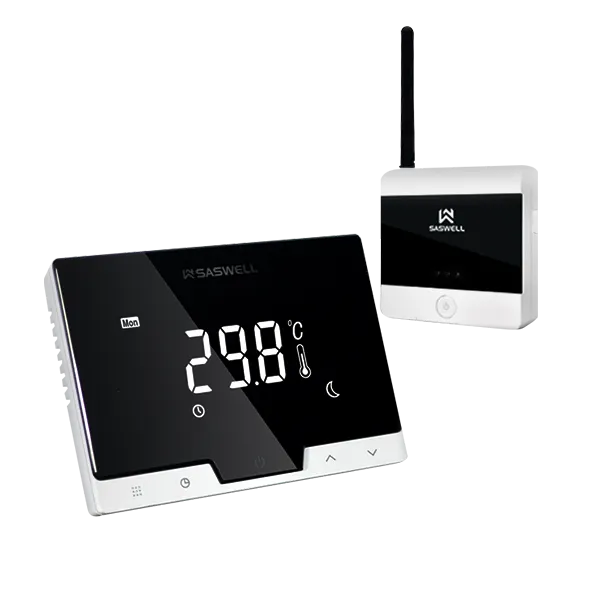

SAS936WHB Matter-enabled boiler thermostat kit product front view
SAS936WHB Matter Boiler Thermostat for Boiler/Heat Pump

SAS936WHB-7-DFZ

Power supply: 2x1.5V AA alkaline batteries(LR6)

Temperature display accuracy: 0.1°C

Battery life:1 year

Temperature display: 0~50°C

Temperature setting range: 5~30°C

Zigbee wireless transmit range: 30m in open air

RF wireless transmit range: Open 100m

Dimensions:100*100*19mm


SAS2017DE

Power source: 100-240VAC 50/60Hz

Output(Relay): Imax 8(5)A 250VAC

RF frequency: 868MHz

Dimensions:86*86*28.5mm

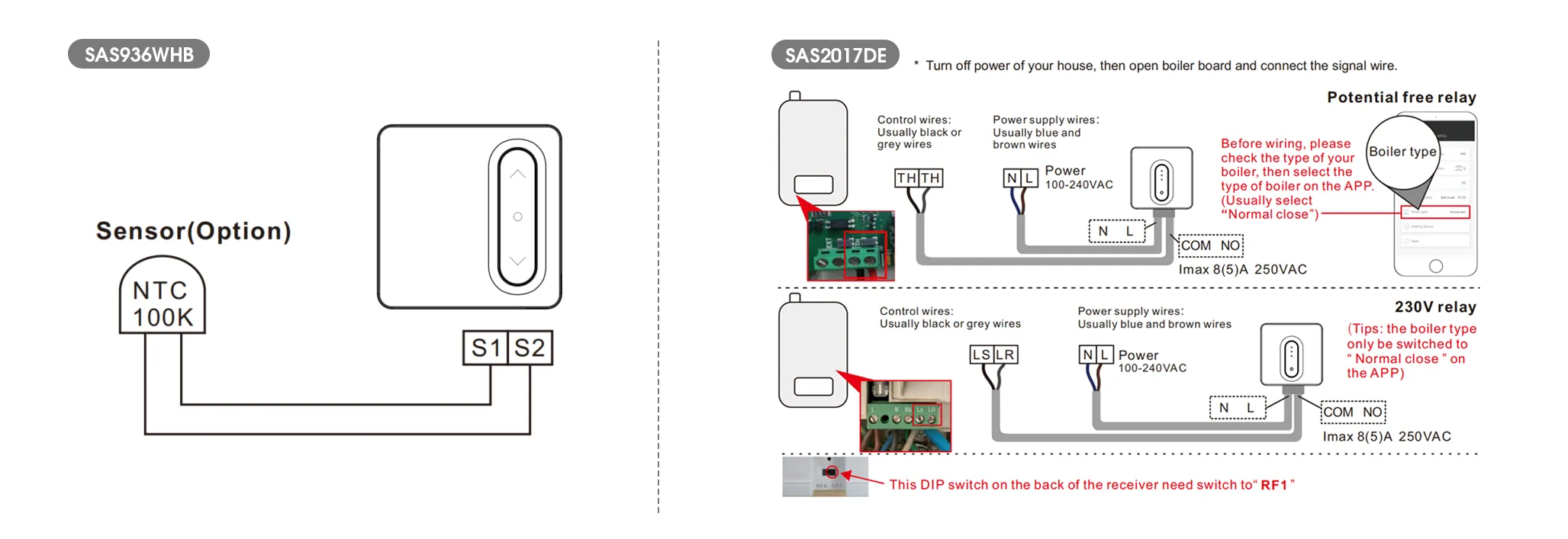

Wiring diagram for SAS936WHB Matter-enabled boiler thermostat

Product Dimensions

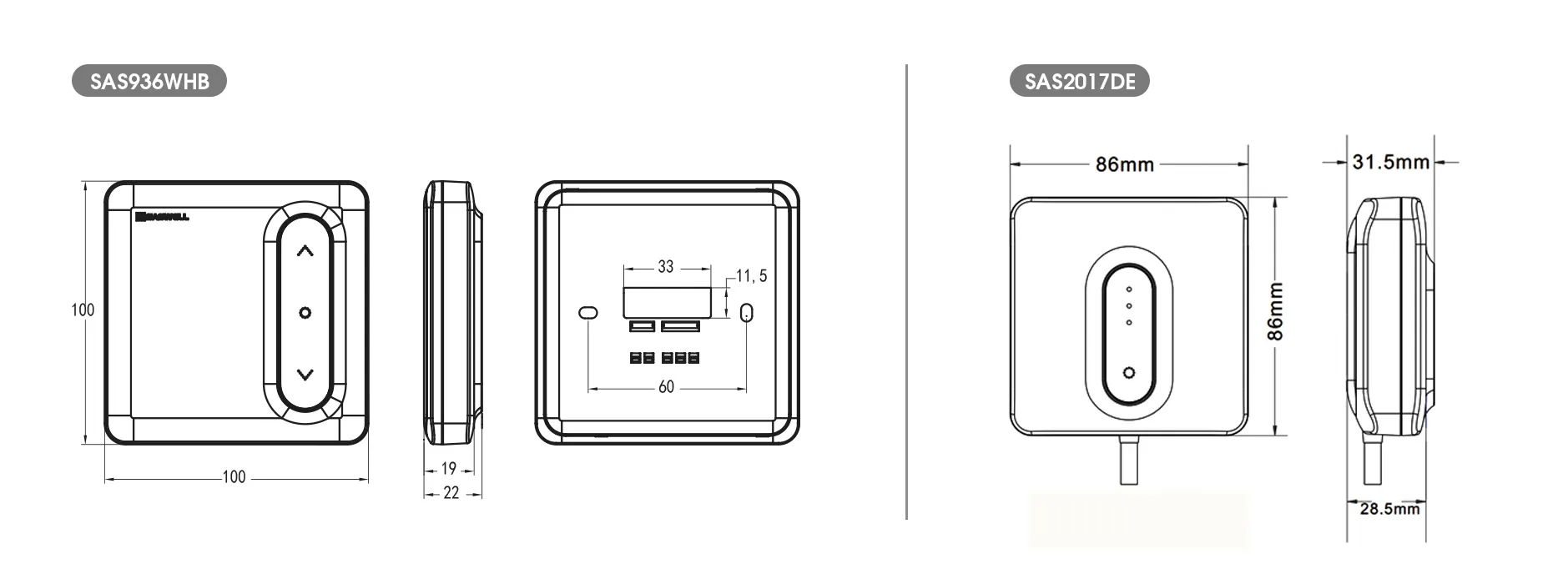

Product dimension drawing for SAS936WHB Matter-enabled boiler thermostat

Product Installation

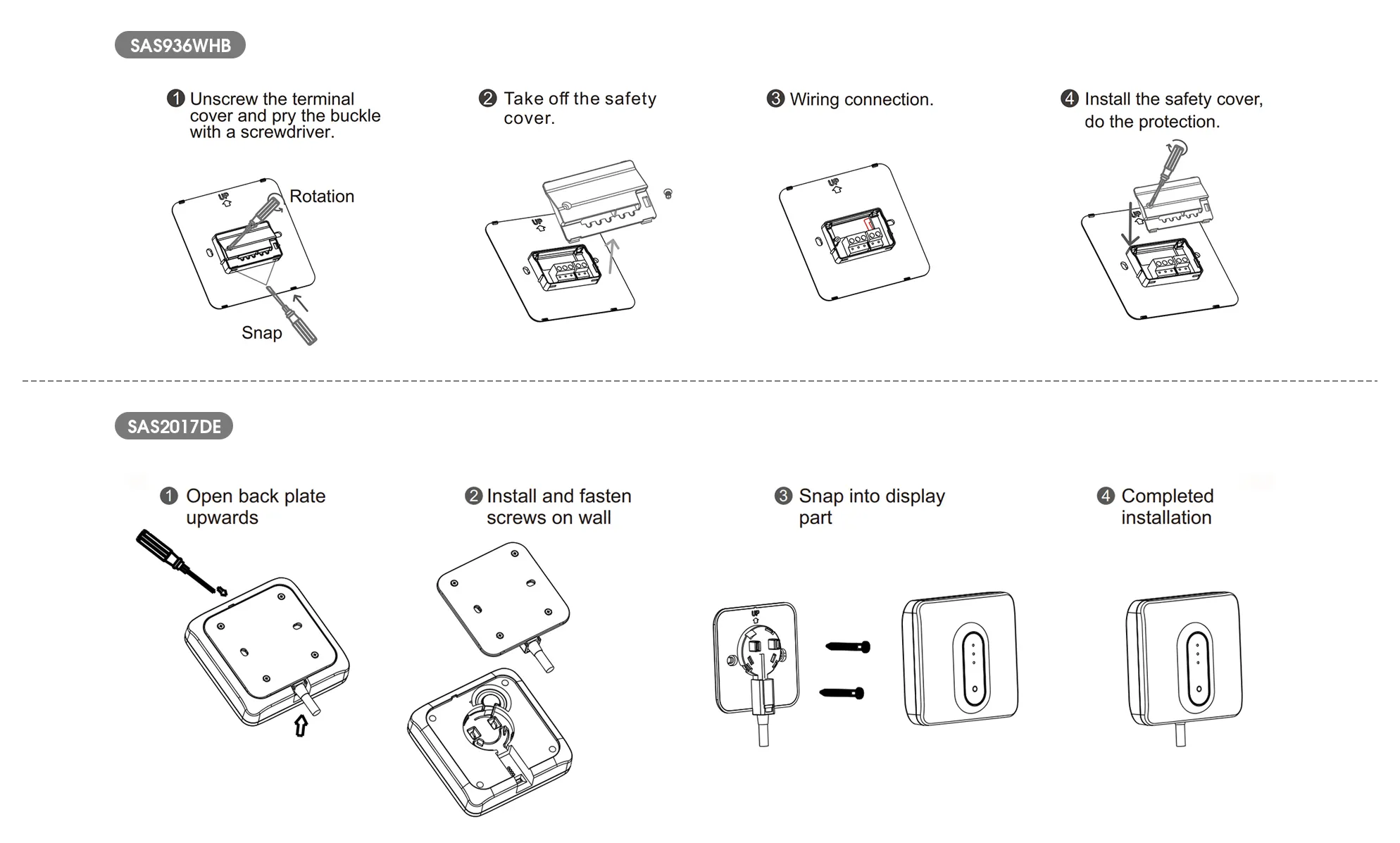

Installation guide for SAS936WHB Matter-enabled boiler thermostat

Product Application Scenarios

SAS936WHB is deployed across a wide range of heating applications where Matter-enabled smart control is required. It serves as the central thermostat for residential boiler systems, heat pump installations, and light commercial heating projects — equally suitable for new builds requiring wired installation and for retrofit projects where wireless connectivity minimizes disruption.
SAS936WHB Matter-enabled boiler thermostat for renovated living room heating applications
Retrofit Projects
SAS936WHB Matter-enabled boiler thermostat for bedroom heating applications
Guest rooms
SAS936WHB Matter-enabled boiler thermostat for rental property heating applications
Rental Property
