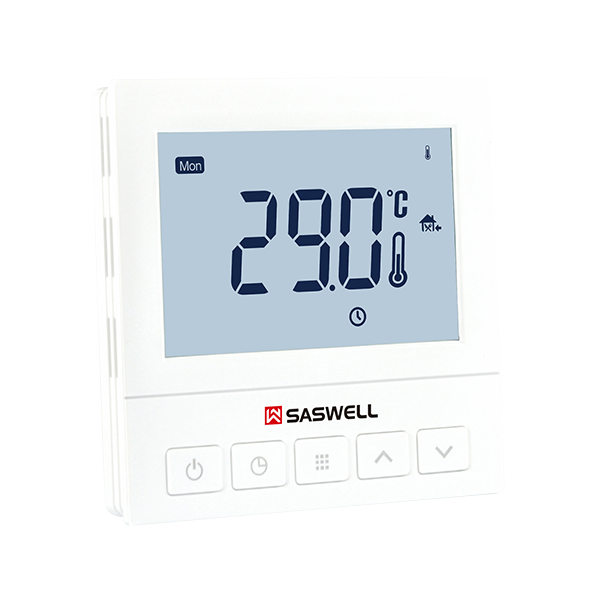

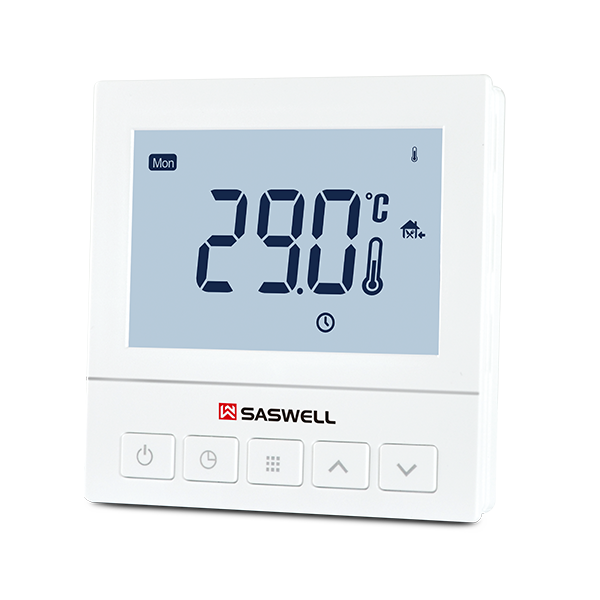

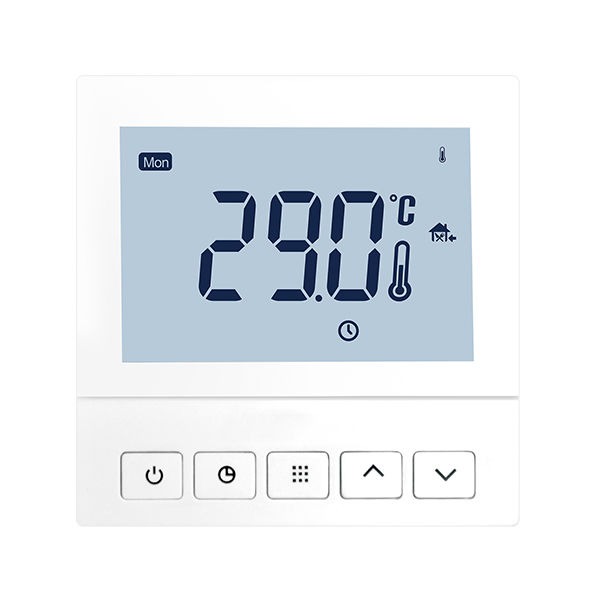

SAS920FHL

7-Day Programmable Electric Floor Heating Thermostat

Get a quote

7‑day programmable schedule

6 periods per day

Large backlit LCD

16A load capacity

Floor/room sensor compatible

Intelligent recovery & anti‑freeze

Home Product Residential Thermostats Electric Heating Control Technology Platform for OEM and HVAC Brands

Product Feature

The 7‑day programmable thermostat offers precise control for electric floor, water radiant, and cable heating. Large backlit LCD shows room/floor temperature, setpoint, time, day, and heating status. Supports 6 periods/day (Morning, Outside, Afternoon, Back, Night) with independent temperatures, intelligent recovery, and room/floor/limit sensor modes (10K/100K). 16A max load (selectable 0‑16A), 100‑240VAC, anti‑freeze, temporary hold, manual override, backlight options (off/30s/on). Optional WiFi module. Fits 86mm box.

Key Functions

7‑Day Programming

Independent schedule for each day, 6 periods/day
LCD Display

Backlit, shows temperature, time, day, heating status
16A Load

Adjustable current range (0‑7A / 8‑11A / 12‑16A)

Sensor Flexibility

Room, floor, or room with floor limit; supports 10K/100K
Intelligent Recovery

Pre‑heats to reach setpoint on time
Additional Modes

Anti‑freeze, temporary hold, manual override

Product Selector

Model No.

Heating

Cooling

Wireless

Humidity

Programmable

Relay

Link with boiler

External Sensor

Modbus

WIFI

Power

Manual

SAS920FHL-7

√

220VAC

download

SAS920FHL-7-WIFI(TY)

√

220VAC

download

Product Parameters

Power source： 100–240VAC 50/60Hz

Maximum load electric current： 16A/250VAC

Room temperature setting range： 5°C to 35°C

Floor temperature setting range： 5°C to 70°C

Accuracy： 0.1°C

Working environment temperature： 0°C to 50°C

The storage temperature ： -10°C to 60°C

Dimensions ： 86mm * 86mm * 13mm

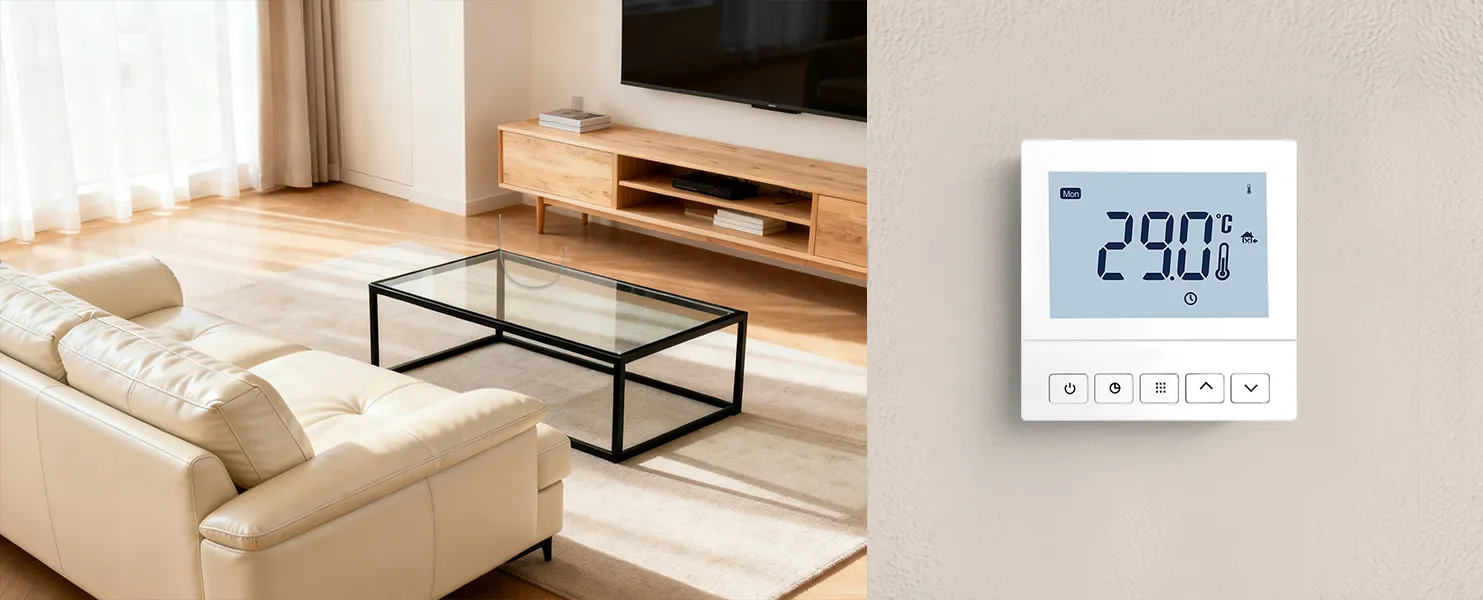

Product Application Scenarios

Ideal for residential underfloor heating (electric cables, mats), water‑based radiant floor heating, and electric heating systems in apartments, houses, and small commercial spaces. Perfect for users who want a reliable, programmable thermostat without the complexity of smart WiFi control.

Hotel

Office-Building

Shopping-Mall

Cooperation & Support

Reliable 7-day programmable thermostats from an OEM manufacturer. Project pricing for contractors and facility managers.

Customization

Logo, packaging, preset 6-period schedules, multi-language menu for OEM projects.
Technical Support

Intelligent recovery setup, floor sensor selection guides, wiring diagrams, CE/RoHS.
Global After-Sales

18-month warranty, remote troubleshooting, spare parts availability.
