SAS2024FHL

FP Smart Thermostat for Electric Radiator

Get a quote

EN12098‑3 energy compliant

French CEE subsidy eligible

Fil Pilote wired control

Ecowatt grid‑response ready

Zigbee 3.0 mesh networking

Real‑time energy monitoring

Home Product Residential Thermostats Electric Heating Control Technology Platform for OEM and HVAC Brands

Product Description

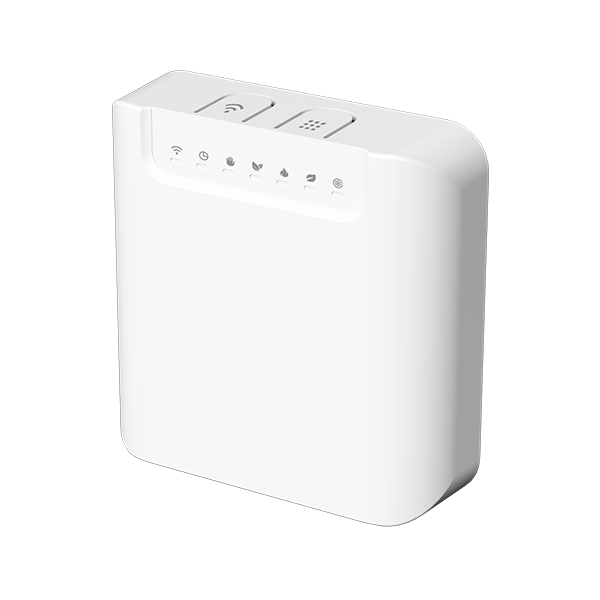

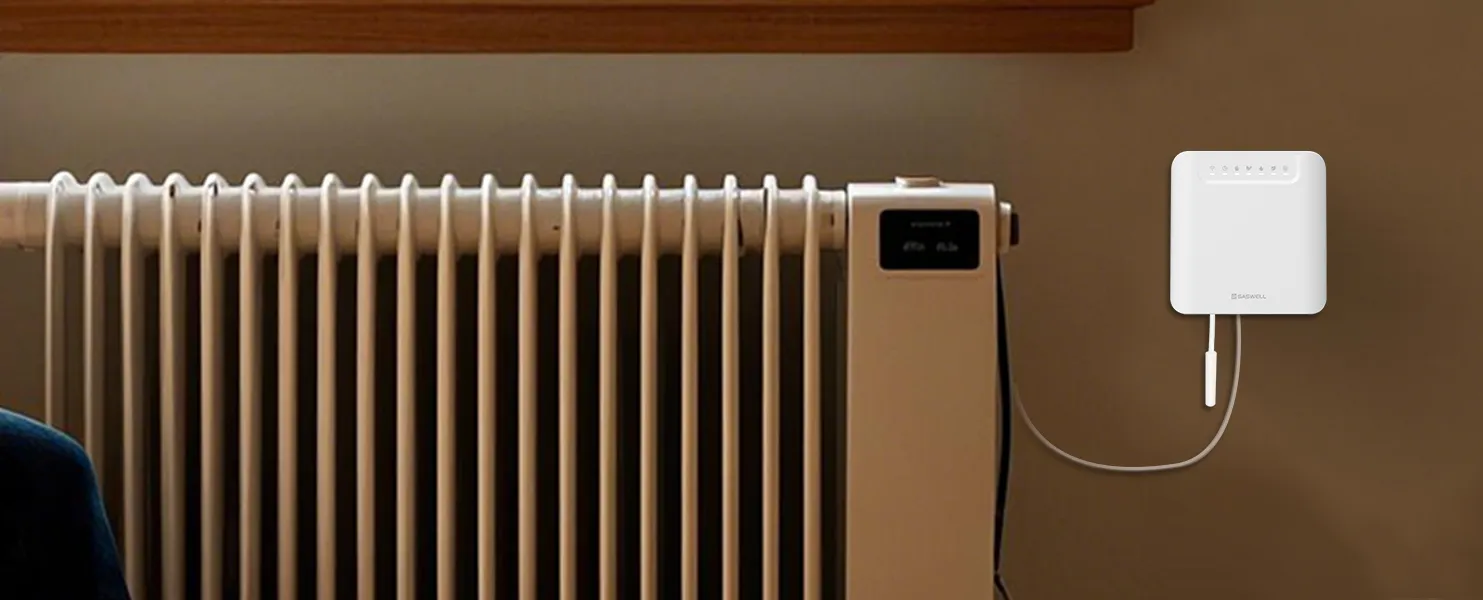

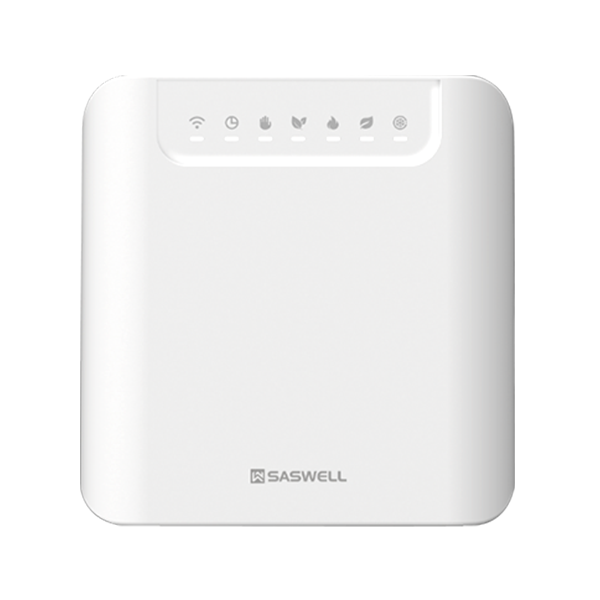

The SAS2024FHL-ZT5 is a Fil Pilote smart thermostat designed for Class II electric radiators. It fully complies with EN12098‑3:2022 and is eligible for the French CEE energy subsidy, reducing retrofit costs for contractors and property owners. The device supports FP wired control (Comfort, Eco, Anti‑frost, Off) and integrates Ecowatt grid‑response – automatically switching to Eco mode during peak alerts. Zigbee 3.0 mesh ensures reliable large‑scale deployment, while real‑time energy monitoring delivers data for ESG reporting.

Key Functions

FP Wired

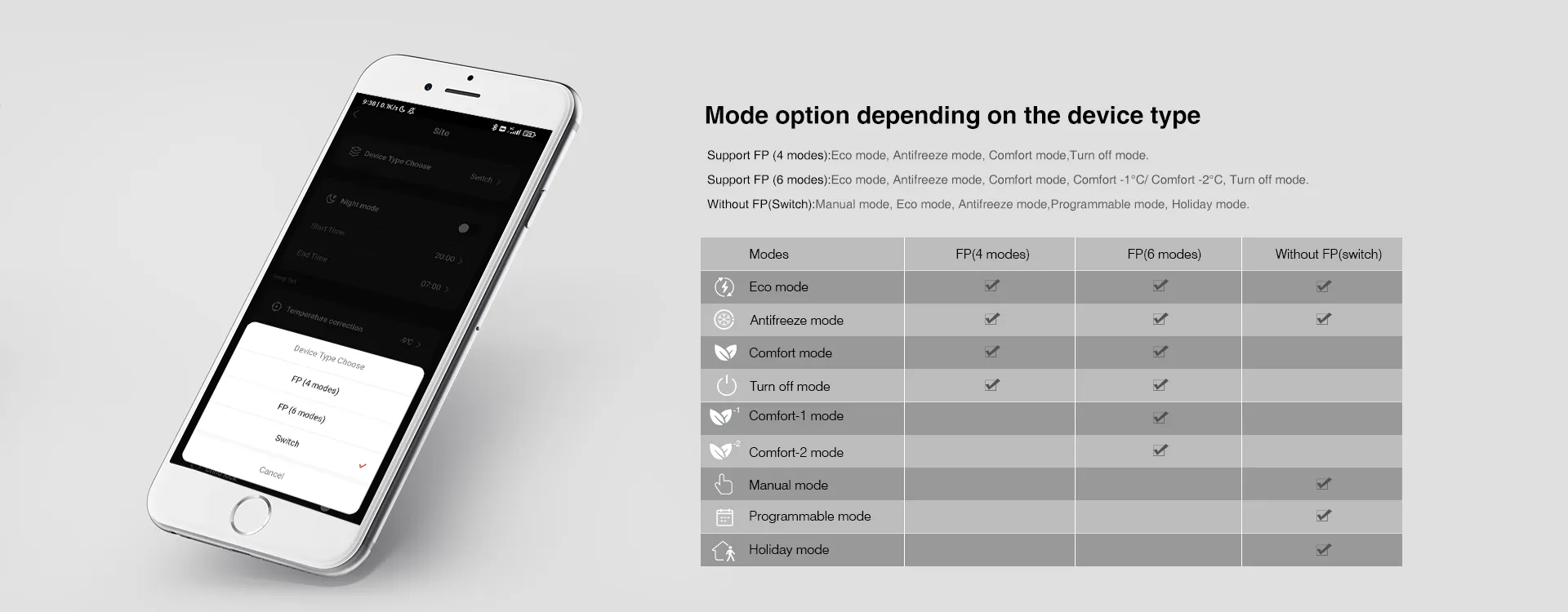

Switches between Comfort, Eco, Anti‑frost, Off via pilot wire
EN Compliant

Meets EN12098‑3 and Lot20 Ecodesign
CEE Eligible

Qualifies for French energy saving certificates

Grid‑Smart

Ecowatt trigger for automated load shedding
Zigbee Mesh

Supports hundreds of units in multi‑zone buildings
Live Data

Real‑time power tracking for energy audits

Product Selector

Model No.	Programmable	Ecowatt	ZIGBEE 2.0	APP	Power	Manual
SAS2024FHL-ZT5	√	√	√	√	220VAC	download

Product Parameters

Power source: 100-240VAC 50/60Hz

Temperature display range(APP): 0°C-70°C

Temperature setting accuracy(App): ±0.5°C

Temperature setting range(APP): 5°C-40°C (In Switch Mode)

Temperature display accuracy(APP): 0.1°C

Wireless Protocol Communication : Zigbee(Tuya)

Radio Frequency Range: 2.4GHz

Protection Level: IP21

Compatibility: Compatible with all class Il electric radiators

Shipping & storage temperature: -10°C ~70°C

Working environment: 0°C-40°C, 10%-95% RH Non- condensation

Wireless transmit range: Open air in 30M

External sensor type: NTC 100K

Real-time power monitoring

The thermostat supports real-time energy consumption monitoring through a mobile app, allowing users to track electricity usage and optimize energy efficiency.

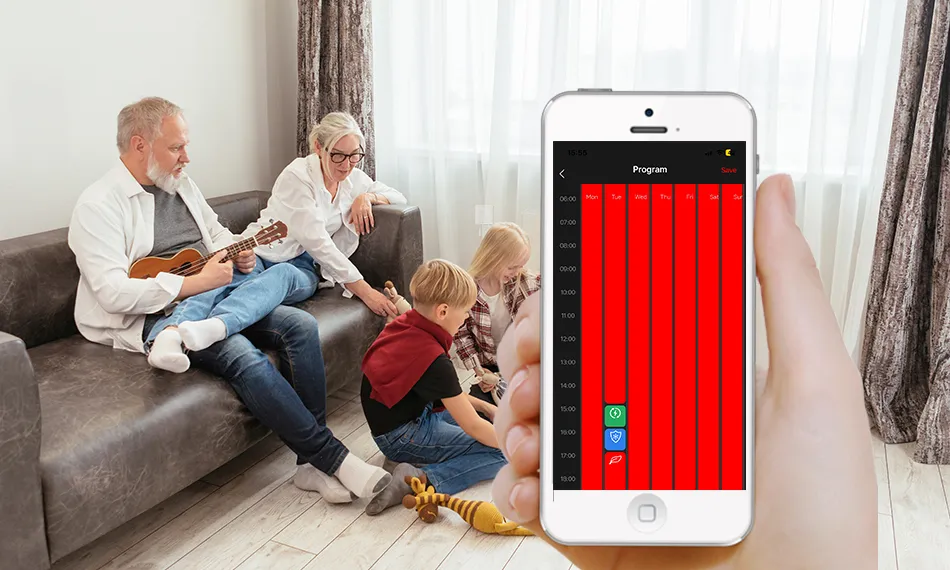

Smart schedule

Support programming setting in the “Tuya Smart” app. Start with a basic schedule, then adjust it whenever you like, so you don’t waste energy heating an empty home.
Voice control

Compatible with amazon Alexa and Google assistant. Control your home thermostat with just your voice for maximum convenience.

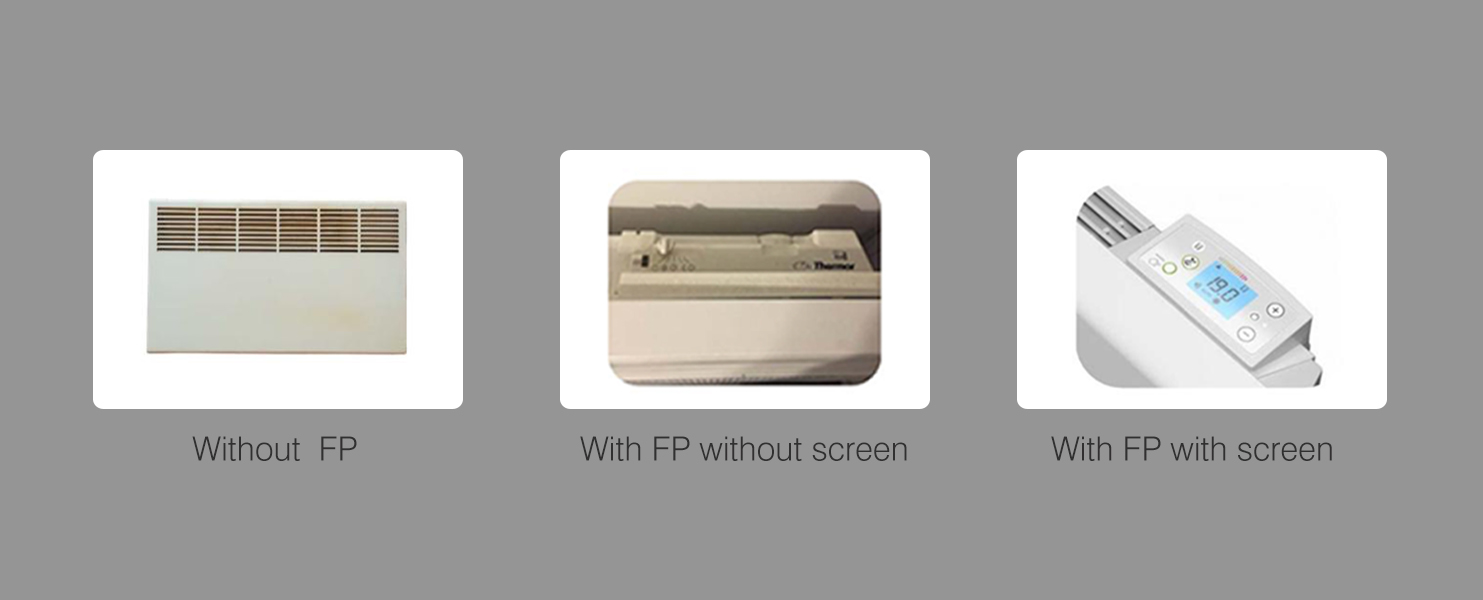

With strong compatibility

Meets the three types of electric radiators on the market.

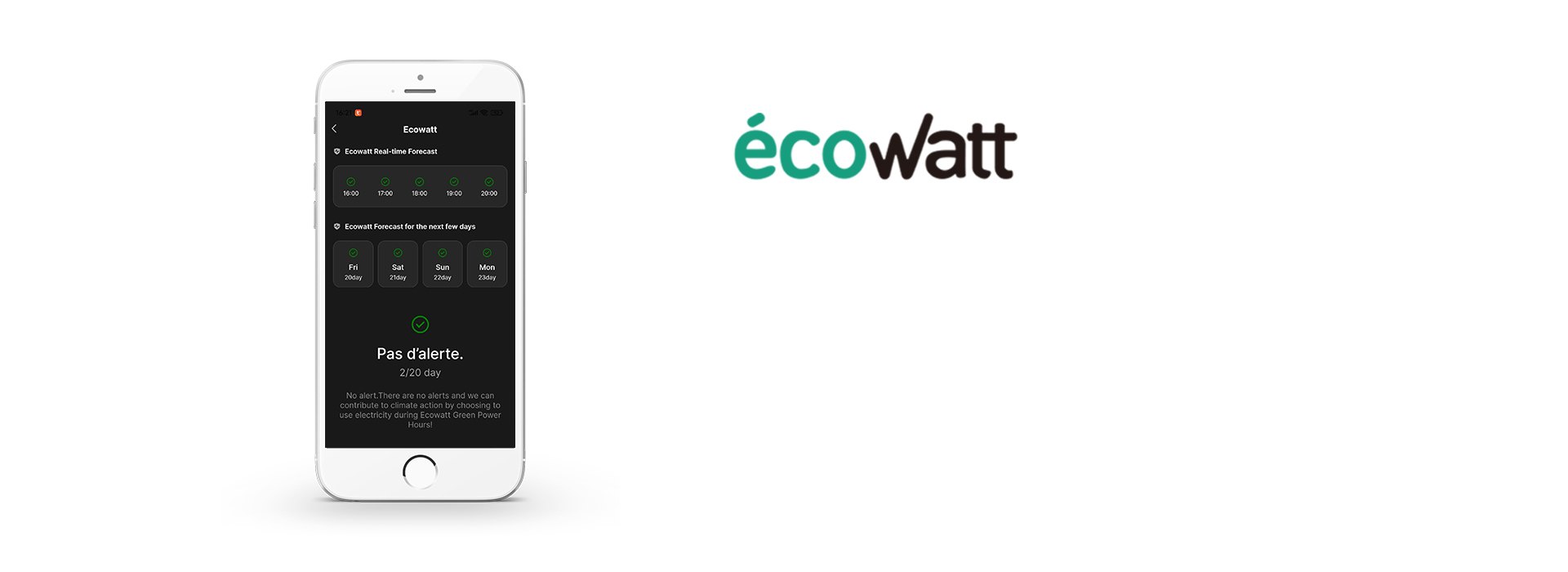

Electricity Forecasts

The application synchronizes with the Écowatt signal, which provides real-time information on electricity consumption. It also allows users to check forecasts for different time periods over the next 4 days.

Smart features that make a difference

Designed for comfort, safety, and convenience at your fingertips.

Child lock function

The Child lock can be used to prevent others changing TRV setting.
Open window function

When open window, the room temperature drops by 6°C in 4 minutes, the device will forcefully stop heating. When the room temperature rises by 3°C again, the window opening function will be turned off.

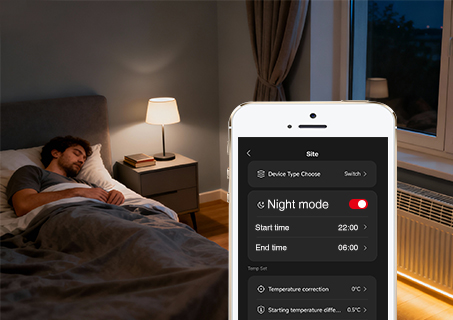

Energy saving

With just one tap in the mobile app, users can activate Night Mode, scheduling start and end times for a comfortable, energy-saving nighttime environment。

Product Application Scenarios

Ideal for buildings with Class II electric radiators, including French CEE‑funded social housing retrofits, hotels and multi‑tenant residences, heritage building upgrades (no invasive rewiring), as well as schools, offices, and public facilities requiring zone‑level energy management.

Apartment

apartments

Cooperation & Support

We are a professional OEM manufacturer of EN12098-3 compliant FP thermostats. Wholesale pricing available for social housing retrofits and CEE-funded projects.

Customization

Logo, packaging, private label, firmware preset for French CEE subsidy eligibility.
Technical Support

Fil Pilote wiring diagrams, Ecowatt integration guidance, EN12098-3 certificate package.
Global After-Sales

18-month warranty, bulk replacement policy, remote technical support for large-scale deployments.
