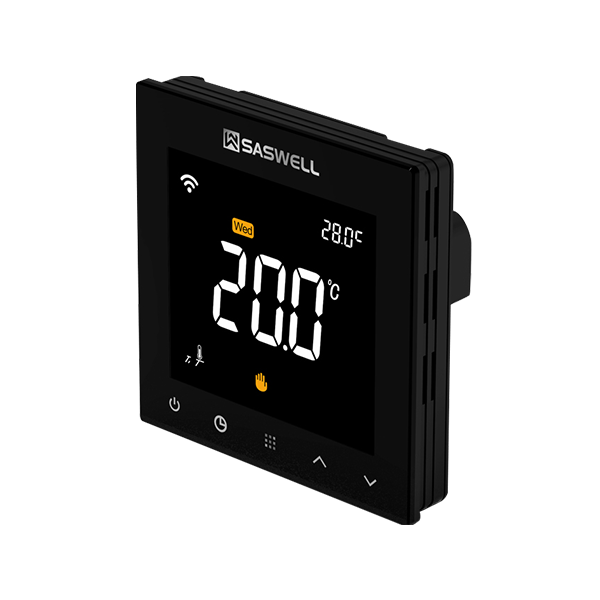

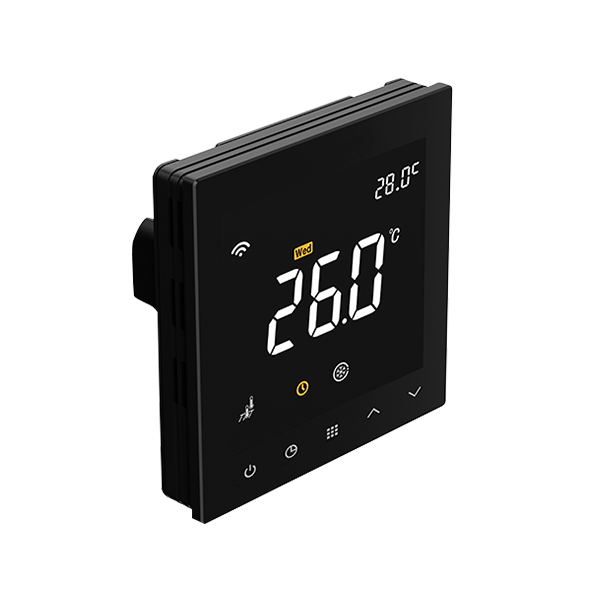

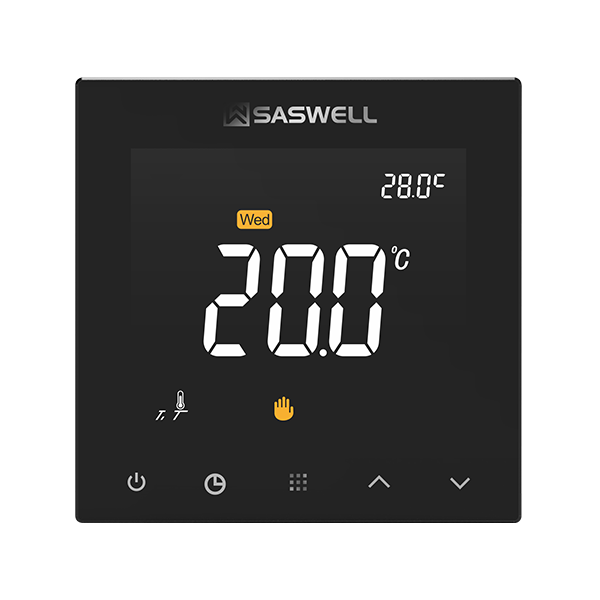

SAS922FHL

WIFI electric heating thermostat

Get a quote

Compatible with 99% of electric mat systems

4-inch HD display with touch controls for easy operation

Large terminal connectors, easy and simple wiring

Fits domestic 86-type, UK, and EU round boxes

Supports external sensors for precise temperature control

Home Product Residential Thermostats Electric Heater Thermostats

Product Feature

The thermostat is a programmable controller used to control heating material in electric heating system.

Product Selector

Model No.

Heat/cool

Heat only

Pipe

Passive and linkage output

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS922FHL-7

√

220VAC

download

SAS922FHL-7-WIFI(TY)

√

220VAC

download

Product Parameters

Power source: 100-240VAC 50/60Hz

Maximum load electric current: 16A/250VAC

Room temperature setting range: 5℃~ 35℃

External sensor control range: 5℃~ 70℃(not standard)

Display accuracy: 0.1℃

Working environment temperature: 0℃~ 50℃

The storage temperature: -10℃~ 60℃

Dimensions: 88mm x 88mm x 13mm

External sensor: NTC100K or NTC10K (optional)

FAQ

You could choose the types you like, and then sent the model no. to the email box info@saswell.com. Our salesman will get in touch with you within 24 hours. And we will send the data sheet to you for double check. Then we will prepare the sample accordingly. The sample needs to charge. So we will calculate the fare by emails back the proforma invoice for your reference. Then we will express the sample to you by express, you could get the sample about 4-5 days later.
