SAS968FHL

Digital Electric Baseboard Thermostat GFCI

Get a quote

Class A GFCI protection

Double-pole relay isolation

16A high load capacity

120-240V wide voltage

Dual-sensor overheat protection

Backlit digital display

Home Product Residential Thermostats Electric Heating Control Technology Platform for OEM and HVAC Brands Digital Electric Baseboard Thermostat GFCI

Product Feature

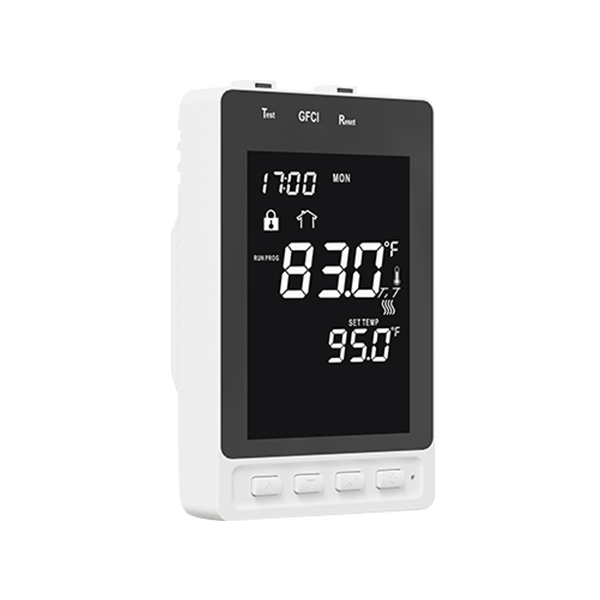

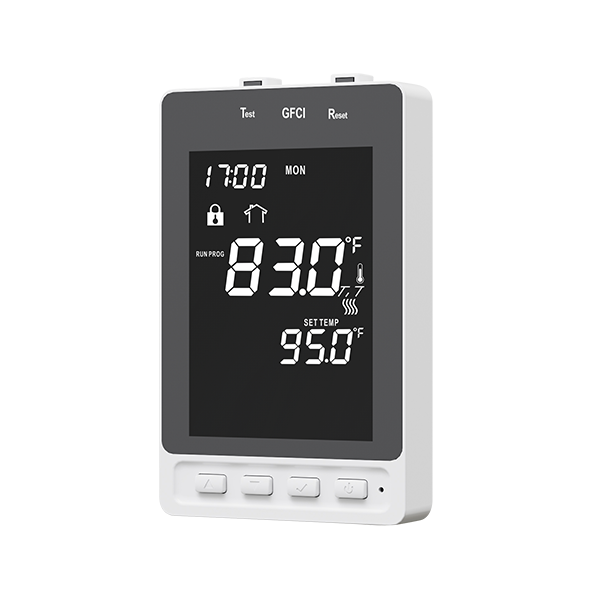

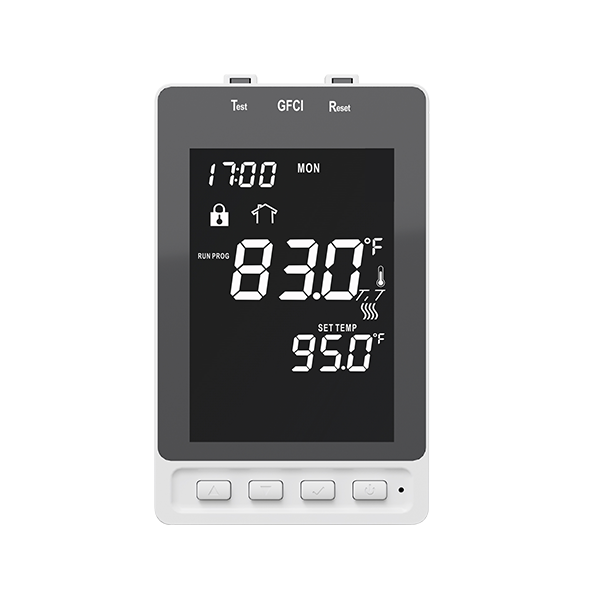

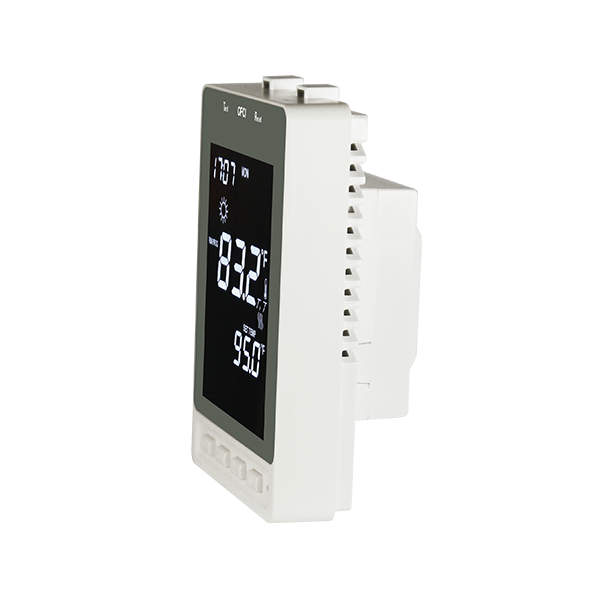

The SAS968FHL-7 is a line-voltage electric baseboard thermostat designed for electric baseboard heaters, fan-forced heaters, and radiant ceilings. It features built-in Class A GFCI (5mA trip) and a double-pole relay that simultaneously disconnects both live and neutral lines – exceeding single-pole switching requirements of NEC 2023/2026. With 16A capacity (up to 3840W at 240V) and wide voltage range 120-240V AC, it suits most North American residential and light commercial projects. The large backlit LCD displays room temperature, setpoint, and GFCI fault alerts. Dual-sensor mode (internal + external probe) prevents floor overheating.

Key Functions

Class A GFCI

5mA trip current, one-touch test button with on-screen alert
Double-Pole Relay

Cuts both L/N lines for full electrical isolation
Wide Voltage

Auto-sensing 120-240V, 50/60Hz (no selector needed)

16A Load

Handles up to 3840W @ 240V for most baseboard heaters
Dual Sensing

Internal ambient + external probe (floor/limit protection)
Backlit LCD

Large digits, night mode, intuitive button operation

Product Selector

Model No.

Heat

Cool only

GFCI

Child lock

Programmable

Anti-freezing

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS968FHL-7

√

120/240VAC

download

Product Parameters

Operation voltage：120/240VAC 60HZ

Maximum Load：240VAC 16A

Room temperature limit：5°C (41°F) ~ 35°C (95°F)

Floor temperature limit：0°C (32°F) ~ 40°C (104°F)

Ambient temperature – operation：0°C (32°F) ~ 55°C (122°F)

Ambient temperature – storage：-10°C (14°F) ~ 60°C (140°F)

Accuracy：±1°F or ±0.5°C

Dimensions：120(L) x 75(W) x 54.2(H) (mm)

IP class：IP20

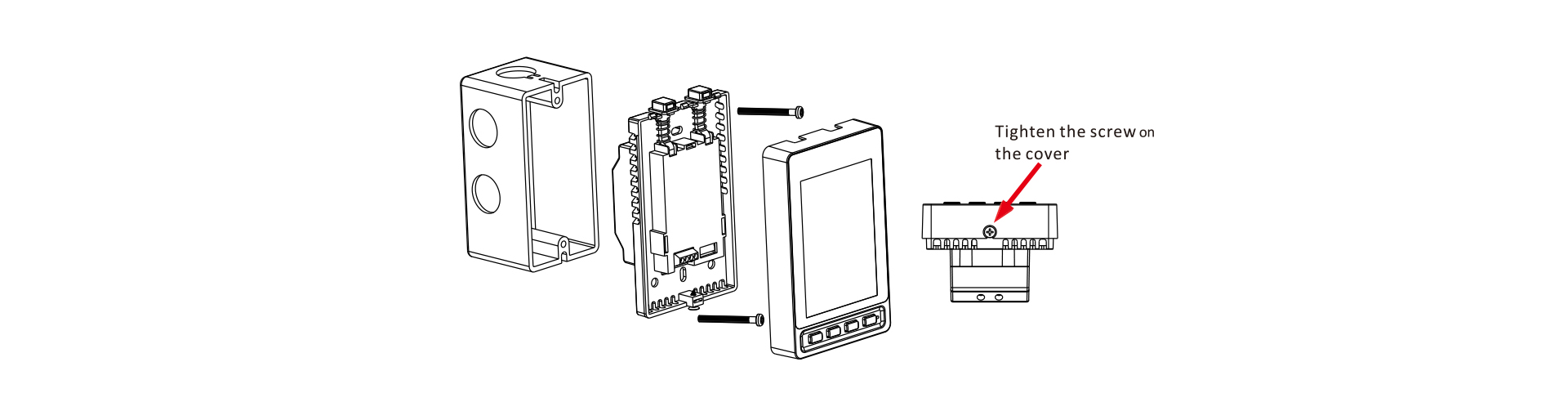

Installation

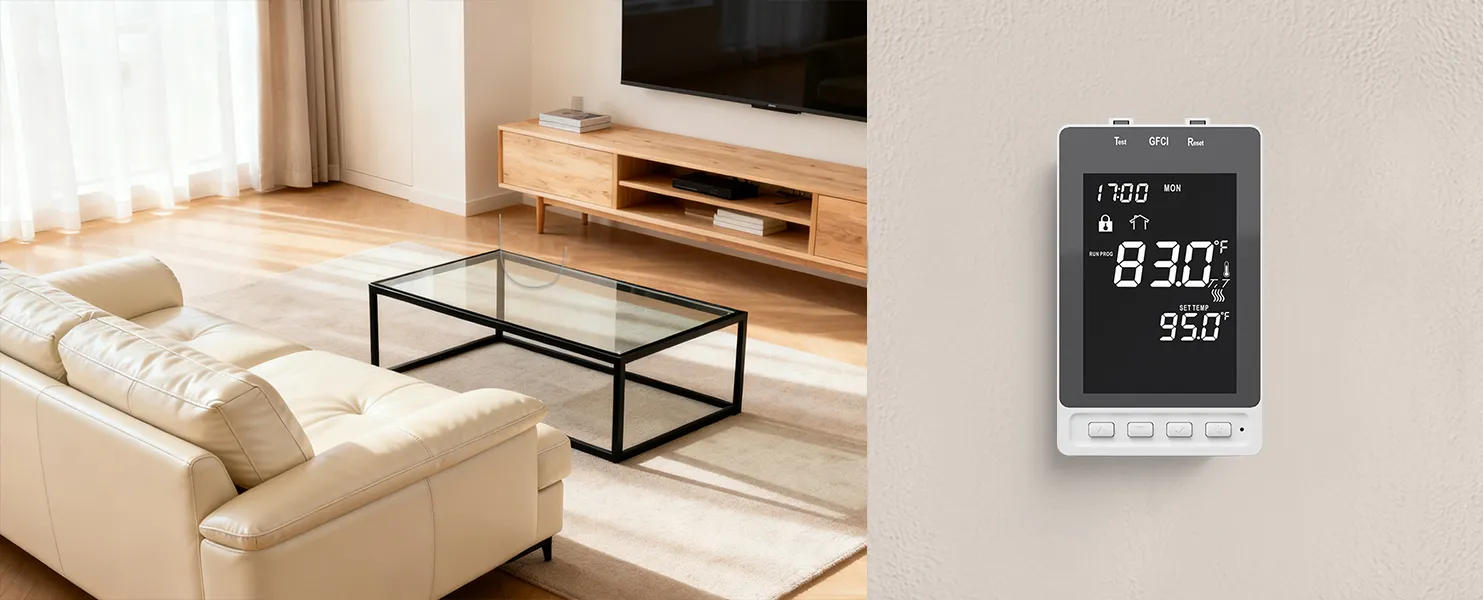

Product Application Scenarios

Ideal for residential homes, apartments, condos, and small commercial spaces using electric baseboard heaters, wall heaters, or fan-forced units. Perfect for NEC‑required GFCI protection in basements, bathrooms, garages, and new construction projects across North America.

Apartment

apartments

Cooperation & Support

Direct manufacturer of NEC-compliant GFCI thermostats. Bulk pricing for North American contractors and distributors. ETL/cETL certified.

Customization

Logo printing, custom packaging, preset current ranges (0-7A/8-11A/12-16A) for OEM projects.
Technical Support

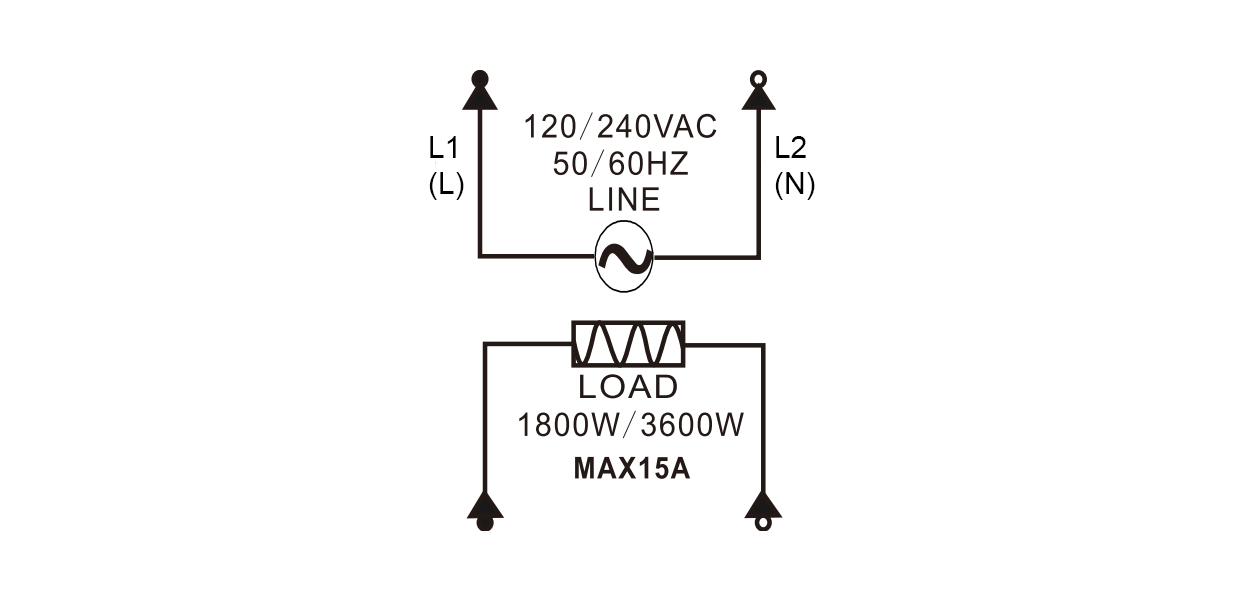

GFCI test procedures, double-pole wiring diagrams, NEC compliance guidance, CE/ETL certificates.
Global After-Sales

18-month warranty, rapid replacement program in North America, engineering hotline.
