SA905-T ΔT Automatic Balancing Electric Thermal Actuator

Get a Quote

Key Functions

Ensure Consistent Indoor Comfort – ΔT Automatic Balancing Control.

Improve System Control Accuracy – Precision Stepper Motor Technology.

Reduce Maintenance Costs – Bluetooth App Remote Diagnostics.

Optimize Energy Efficiency – Dynamic Flow Control Optimization.

Ensure Reliable Long-Term Operation – IP54 Protection Design.

Simplify Installation and Retrofit Projects – Universal Compatibility.

Left side view of SA905-T ΔT automatic balancing electric thermal actuator

Front view of SA905-T ΔT automatic balancing electric thermal actuator

Home Underfloor Heating Actuator SA905-T ΔT Automatic Balancing Electric Thermal Actuator

Product Description

SA905-T ΔT Automatic Balancing Electric Thermal Actuator delivers dynamic hydronic balancing by continuously monitoring supply/return temperature differential (ΔT) and automatically adjusting flow for optimal system performance. As part of the SA Series Electric Thermal Actuators it features precision stepper motor technology and Bluetooth App remote diagnostics for wireless commissioning, parameter configuration, and real-time monitoring. The M30×1.5 interface fits standard underfloor heating manifolds without adapters, making it ideal for heat pump systems and hydronic balancing applications, while the IP54-rated sealed housing ensures reliable performance in demanding environments.

Recommended reading: View SA Series Electric Thermal Actuators

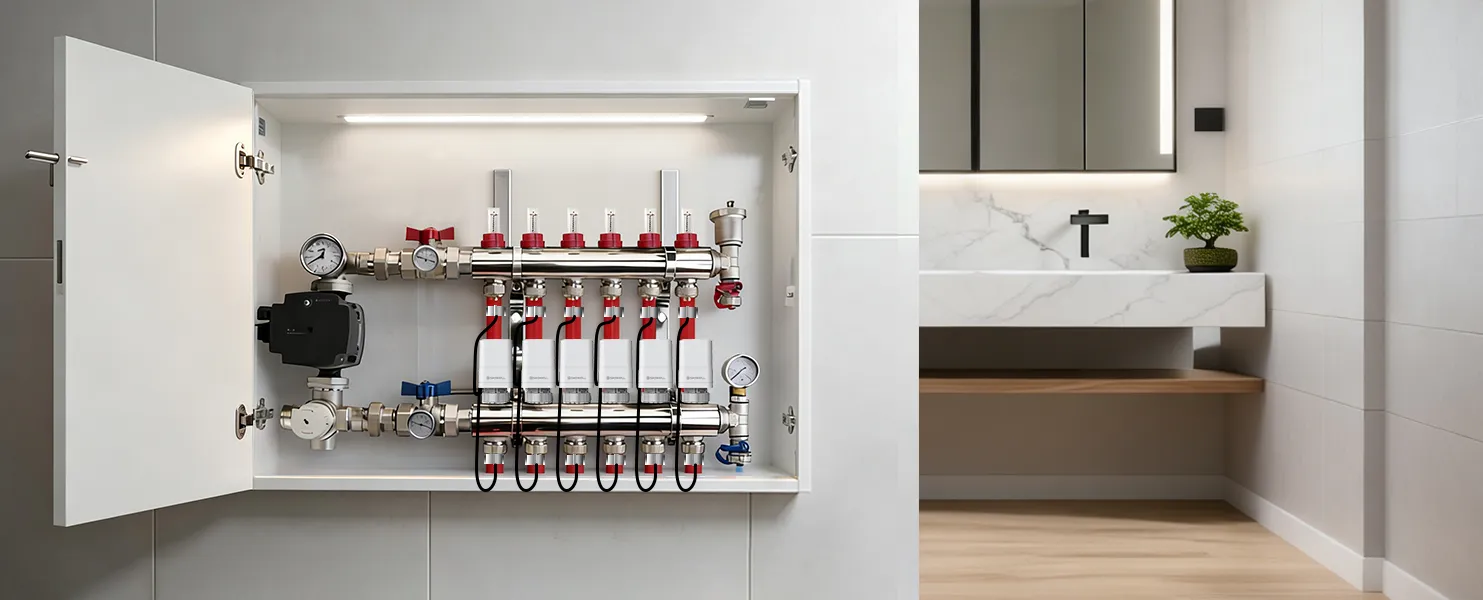

SA905-T Delta T automatic balancing electric thermal actuator ideal for underfloor heating applications

Product Features

ΔT Automatic Balancing Control.

Advanced ΔT control algorithms continuously monitor the temperature difference between supply and return water circuits and automatically adjust valve positions to maintain dynamic flow balancing. This effectively eliminates uneven heating, overheating, and insufficient heat distribution — ensuring consistent comfort across all zones.
Precision Stepper Motor Technology.

Powered by a high-precision stepper motor, the actuator provides faster response times, more accurate valve positioning, and longer service life compared to conventional thermal actuators, making it ideal for high-efficiency heating systems where precise flow control is critical.
Bluetooth App Remote Diagnostics.

The integrated Bluetooth App enables wireless commissioning, parameter configuration, real-time monitoring, operational data analysis, and fault diagnostics without requiring an additional gateway, significantly reducing installation and maintenance costs for facility teams.

Dynamic Flow Control Optimization.

By continuously optimizing system flow rates, the actuator minimizes over-circulation and unnecessary energy consumption, improving overall system efficiency while maintaining superior thermal comfort across all conditioned spaces.
IP54 Protection Design.

Featuring an IP54-rated enclosure, the actuator offers reliable protection against dust and water splashes, ensuring stable and long-lasting performance in demanding installation environments such as hydronic manifolds and plant rooms.
Universal Compatibility.

Designed with a standard M30×1.5 connection interface, the SA905-T is compatible with most mainstream manifolds and valve bodies, making it suitable for both new installations and energy retrofit projects without custom adapters.

Product Selector

Model No.	Nominal Force	Voltage	Stroke	Control Signa	Manual
SA905-T(220V)	80-130N	220VAC	4.5mm	Automatic hydronic balancing valve actuator	download
SA905-T(24V)	80-130N	24VAC	4.5mm	Automatic hydronic balancing valve actuator	download
SAS905-V(220V)	160N	220VAC	6mm	Modulating 0-10V	download
SAS905-V(24V)	160	24VAC	6mm	Modulating 0-10V	download
SAS905-S	80-130N	220VAC	4.5mm	ON/OFF	download

Product Parameters

SA905-T Delta T automatic balancing electric thermal actuator product left side view

SA905-T ΔT Automatic Balancing Electric Thermal Actuator

Power supply: SA905-T(220V):100-240VAC ( SA905-T(24V):24VAC )

Power consumption: <2W

Stroke: 4.5mm

Force:80N~130N

Ambient temperature: 0 ~ +50°C

Ambient humidity: 10%~90%,non-condensing

Protective housing: IP 54

Valve interface: M30x1.5mm

Temperature sensor: NTC 100K, clip for pipe outer diameter from 16~20mm

Request Free Sample

Wiring diagram for SA905-T Delta T automatic balancing electric thermal actuator

Product Dimensions

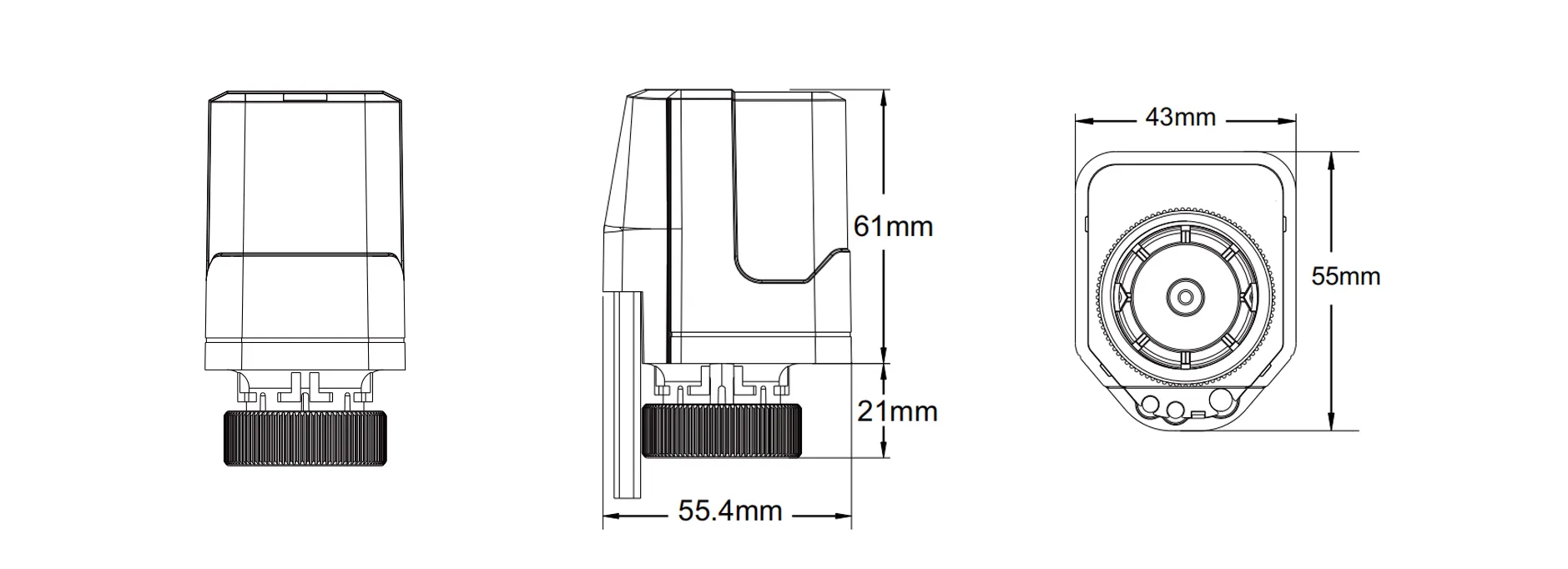

Product dimension drawing for SA905-T ΔT automatic balancing electric thermal actuator

Product Installation

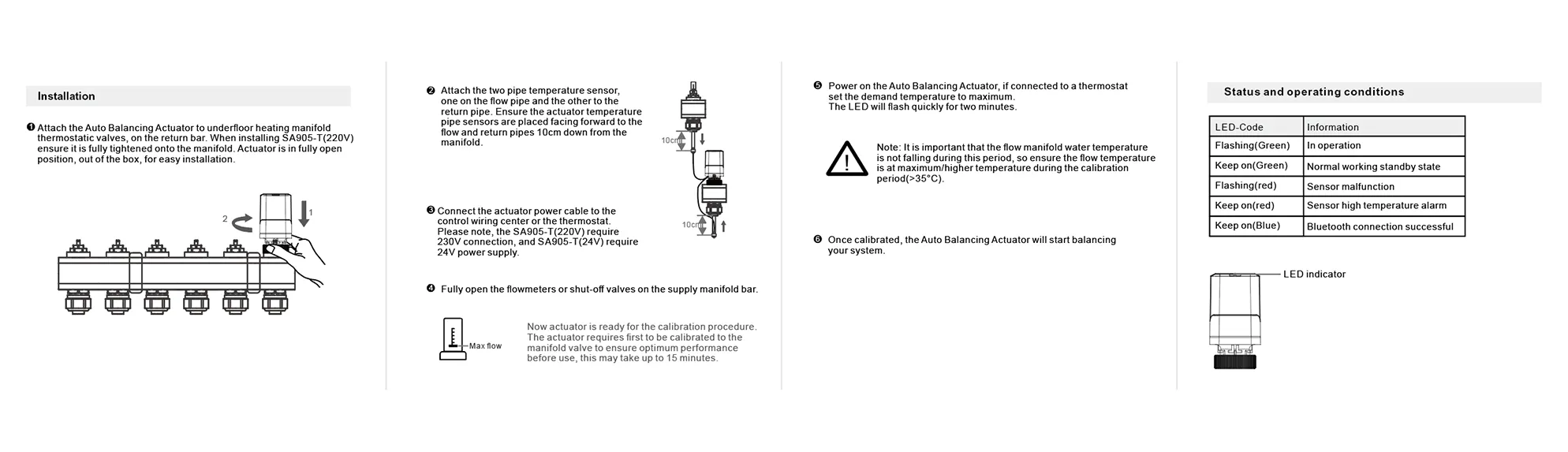

Installation guide for SA905-T ΔT automatic balancing electric thermal actuator

Product Application Scenarios

SA905-T ΔT Automatic Balancing Electric Thermal Actuator delivers dynamic hydronic balancing by continuously monitoring supply/return temperature differential (ΔT) and automatically adjusting flow for optimal system performance. As part of the SA Series Electric Thermal Actuators, it features precision stepper motor technology and Bluetooth App remote diagnostics for wireless commissioning, parameter configuration, and real-time monitoring. The M30×1.5 interface fits standard underfloor heating manifolds without adapters, making it ideal for heat pump systems and hydronic balancing applications, while the IP54-rated sealed housing ensures reliable performance in demanding environments.
