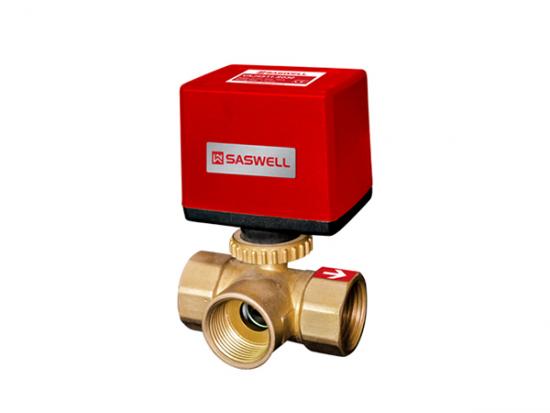

Motorized Ball Valve SV80

Power supply

AC24V , AC110V±10% , AC220V±10%

Power Consumption

5W (during valve position change)

Running Time

15sec.(50Hz)/12 sec.(60Hz)

Pressure Rating

300psi (2MPa)

Media Temp.Range

 34℉ to 203℉ (1℃ to 95℃)

Max. Differential Pressure

150psi (1MPa)

Protection Grade

Ip65

Types

2-way valve , 3-way Valve (T type under distribution), 3-way Valve (L type horizontal distribution)

Materials

Body optional : forged brass, nickel plated

Ball optional: stainless steel (standard), chrome plated brass(optional);

Stem: brass; optional: nickel plated brass; stainless steel

Seats: fiberglass reinforced Teflon PTFE

Seal: 2 EPDM O-rings, lubricated
