UK S-Plan & Y-Plan Dual Channel Thermostat – Complete Adapter’s Guide

1. Quick Primer: UK S-Plan and Y-Plan Systems

Unlike simpler continental European systems, UK homes typically separate Central Heating (CH) and Domestic Hot Water (DHW). Two common valve arrangements dominate:

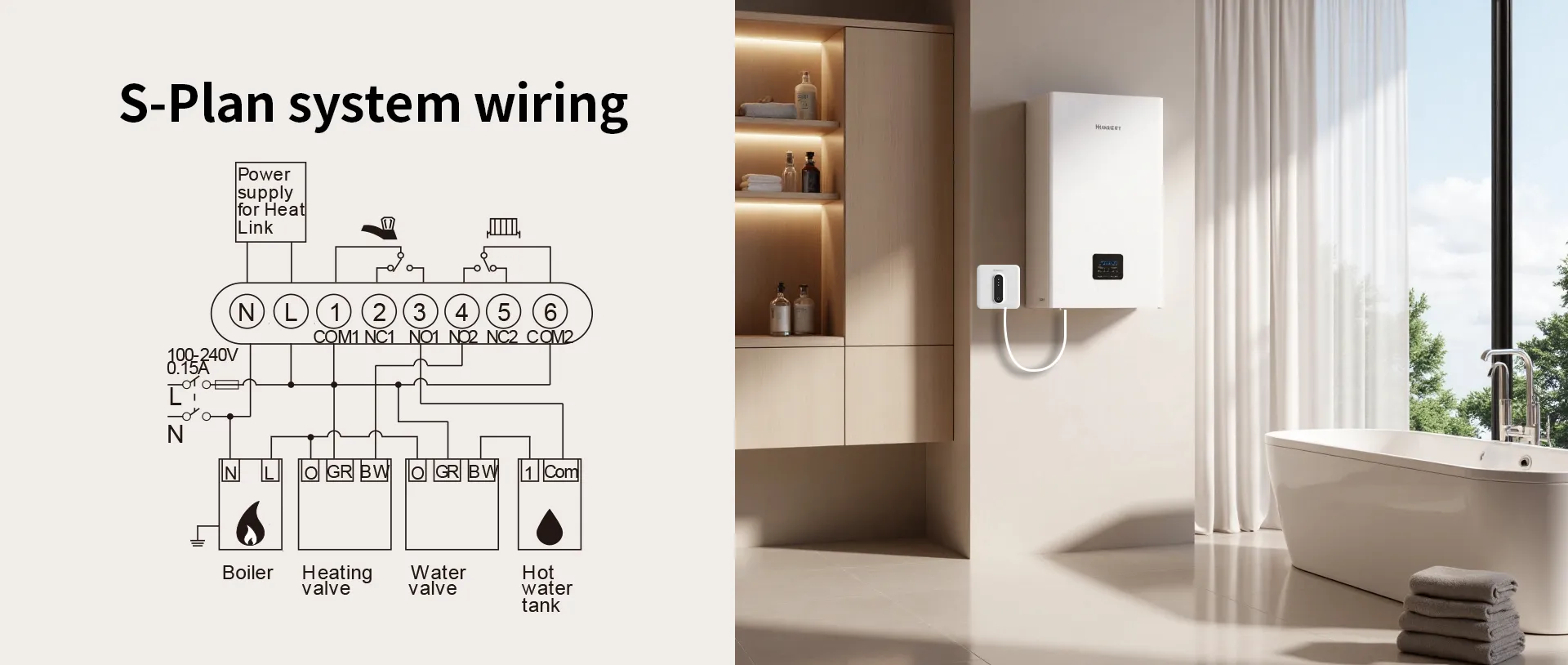

• S-Plan: Uses two separate 2-port motorised valves. It offers independent control and is common in modern installations.

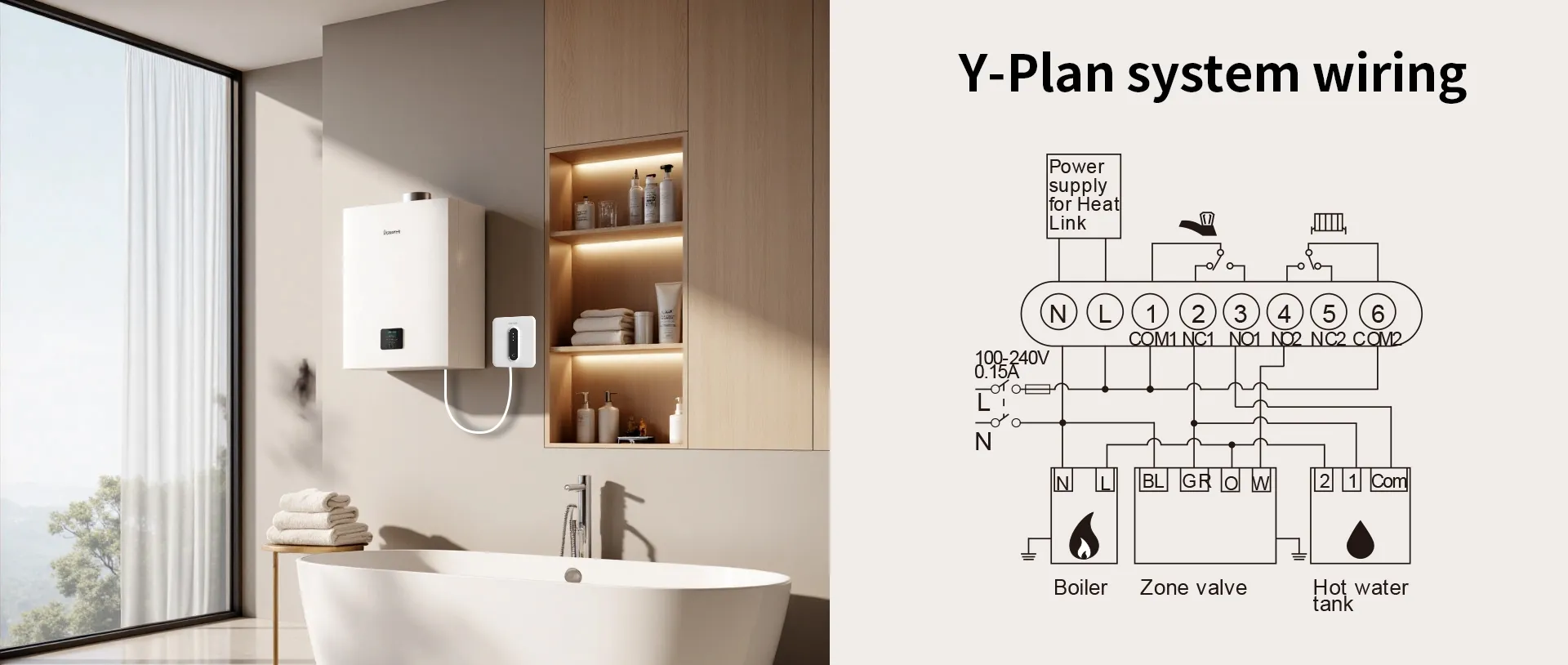

• Y-Plan: Uses a single 3-port mid-position valve to divert flow. Common in medium-sized homes.

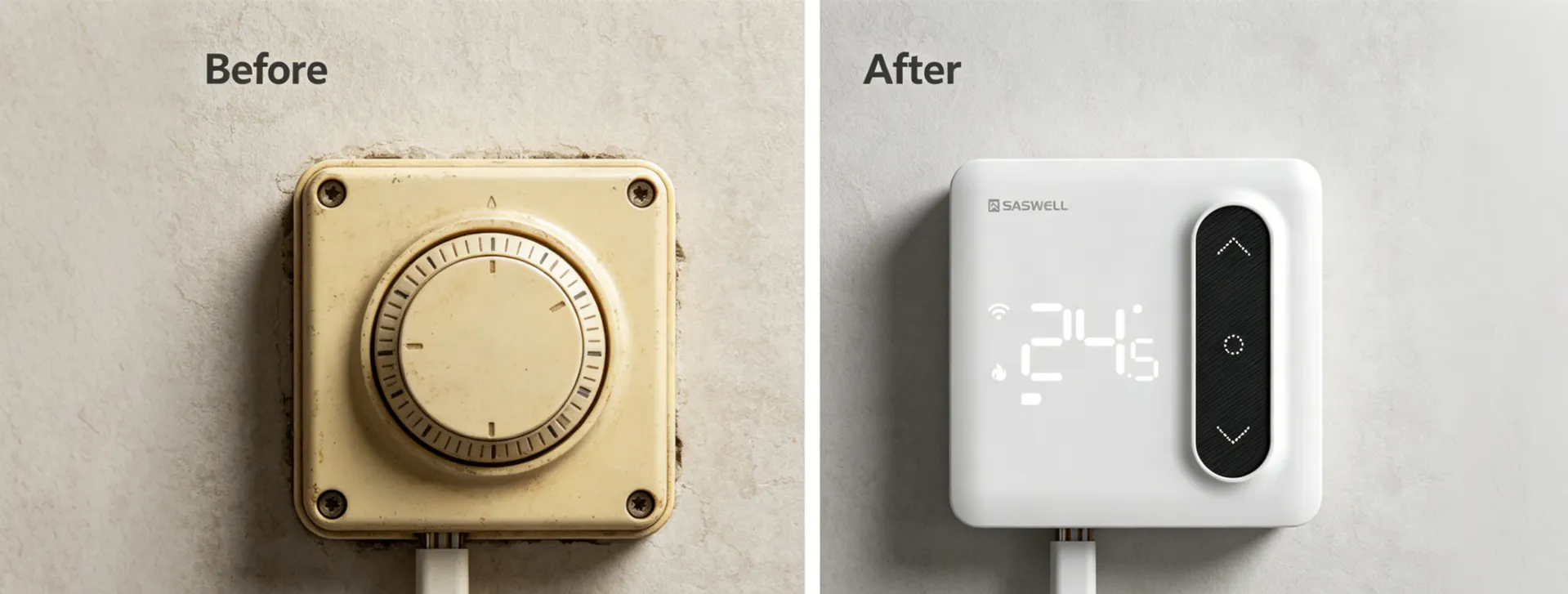

2. Why Replace the Old Mechanical Programmer?

Mechanical programmers often suffer from inaccurate timekeeping and lack room temperature feedback. Upgrading to a digital Modulating Boiler Thermostat alternative ensures higher precision and significant energy savings.

3. Decision Matrix: Which Protocol for Your Project?

4. Step-by-Step Replacement: Mechanical to Digital

Replacing a mechanical programmer involves identifying the system type (S-Plan or Y-Plan) and ensuring wiring compatibility. Most Saswell dual channel thermostats support volt-free switching, making them compatible with both 230V and low-voltage systems. Always verify with a multimeter before finalizing the installation.

6. Common Installation Mistakes

• Using a single channel thermostat: Results in hot water never shutting off or heating failing to run independently.
• Reversed CH and HW outputs: Causes hot water to trigger when heating is requested. Always label wires before removal.
• Ignoring volt-free vs 230V: Risk of damaging the boiler PCB or valve actuators if the relay type is mismatched.

8. Frequently Asked Questions (FAQ)

9. Conclusion: The Digital Upgrade for British Homes

S-Plan and Y-Plan remain the reliable backbone of British heating, but the mechanical programmers controlling them are obsolete. Upgrading to a digital or smart dual channel thermostat lowers energy bills by 10–20% and adds essential protections like frost monitoring and open window detection.
