SAS816WHB manual rotary dial boiler thermostat for residential home heating applications

SAS816WHB Rotary Dial Manual Boiler Thermostat

Key Functions

Simple & Reliable – Non-programmable, plug & play.

Intuitive Control – Rotary knob.

Universal Compatibility – Works with 99% of boilers.

Wireless Setup – Battery-powered, no wiring needed.

Flexible Placement – Wall-mountable or tabletop stand.

Unified Control – Single thermostat for whole-home heating.

Product Overview

SAS816WHB Manual Boiler Thermostat is a non-programmable rotary thermostat designed for residential boiler systems. As part of the Boiler Thermostats product family, it features a classic rotary knob for intuitive temperature adjustment, plug-and-play simplicity with no programming required, and flexible wired/wireless installation options — making it an ideal choice for budget-conscious projects and straightforward boiler system replacements.

Recommended reading: View Boiler Thermostats

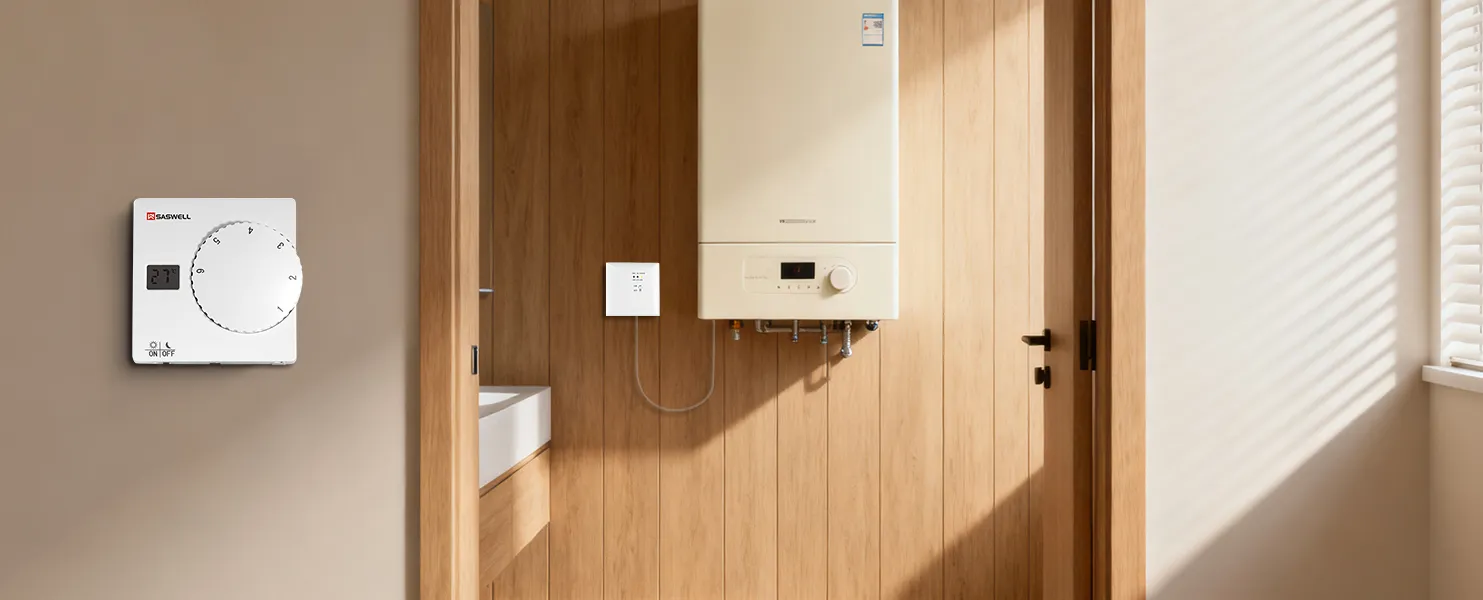

SAS816WHB manual rotary dial boiler thermostat installed in bathroom boiler room scene

Product Features


Product Selector

Model No. Heat only Cool only Wired Wireless Programmable Relay Link with boiler External Sensor RF WIFI Power Manual
SAS816WHB-0






Battery download
SAS816WHB-0-RF





Battery download

Product Parameters

SAS816WHB manual rotary dial boiler thermostat kit product front view
SAS816WHB Rotary Dial Manual Boiler Thermostat

SAS816WHB

Power Supply: 2AA Batteries Receiver Power Supply & Relay Load: 250VAC 16A

Frequency band: 433 MHZ

Room temperature setting range: 5℃~30℃ (41℉~86℉)

Ambient temperature-operation: 0℃(32℉)~+50℃(122℉)

Ambient temperature-transport: -10℃(14℉)~+60 ℃(140℉)

Accuracy: ±1℃ or ±1℉

Dimensions: 86mm×86mm×32mm


SAS2000WHB

Power Supply: 100-240VAC

Dimensions: 86mm×86mm×16mm

Radio frequency: 868MHz(FSK)

Frequency range: 100m (unobstructed environment)

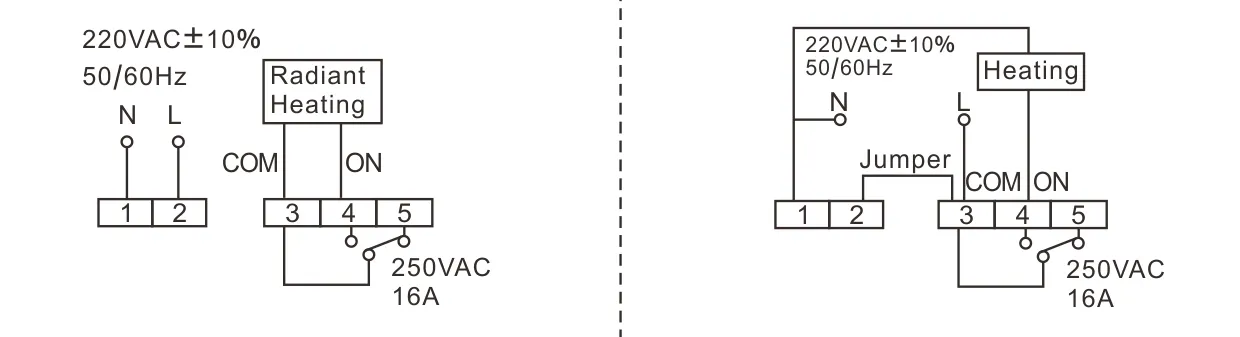

Wiring diagram for SAS816WHB manual rotary dial boiler thermostat

Product Dimensions

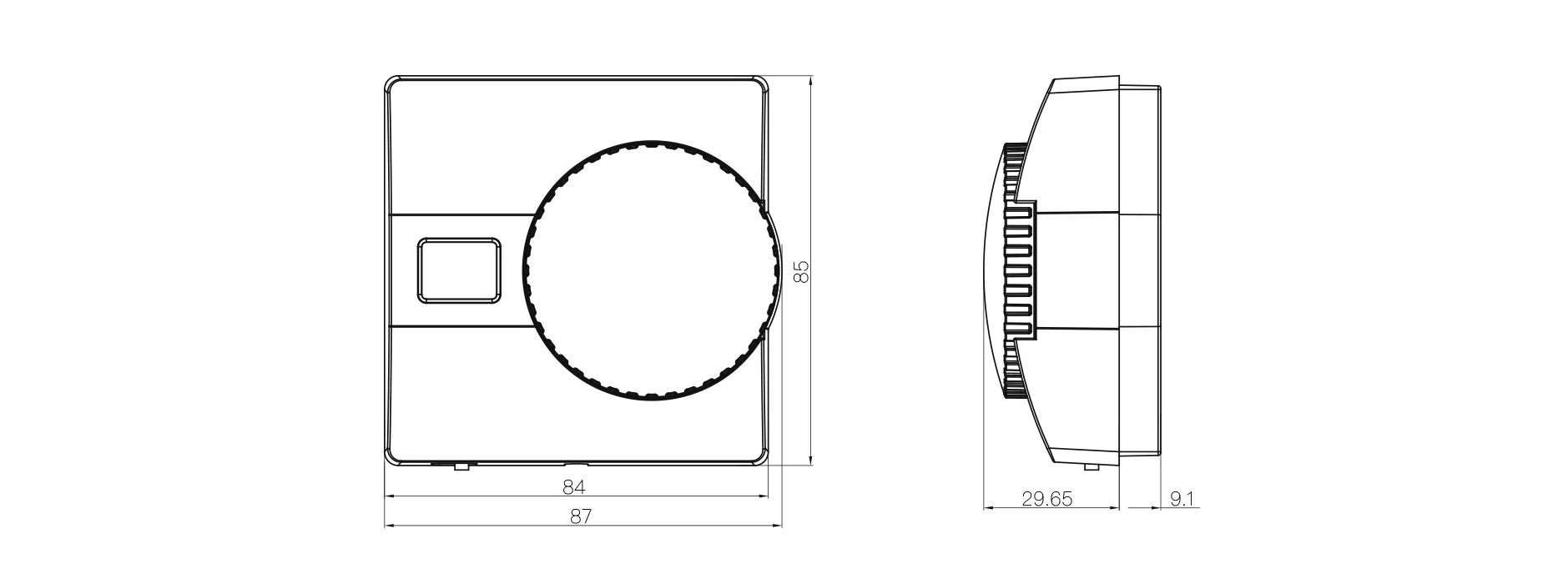

Product dimension drawing for SAS816WHB manual rotary dial boiler thermostat

Product Installation

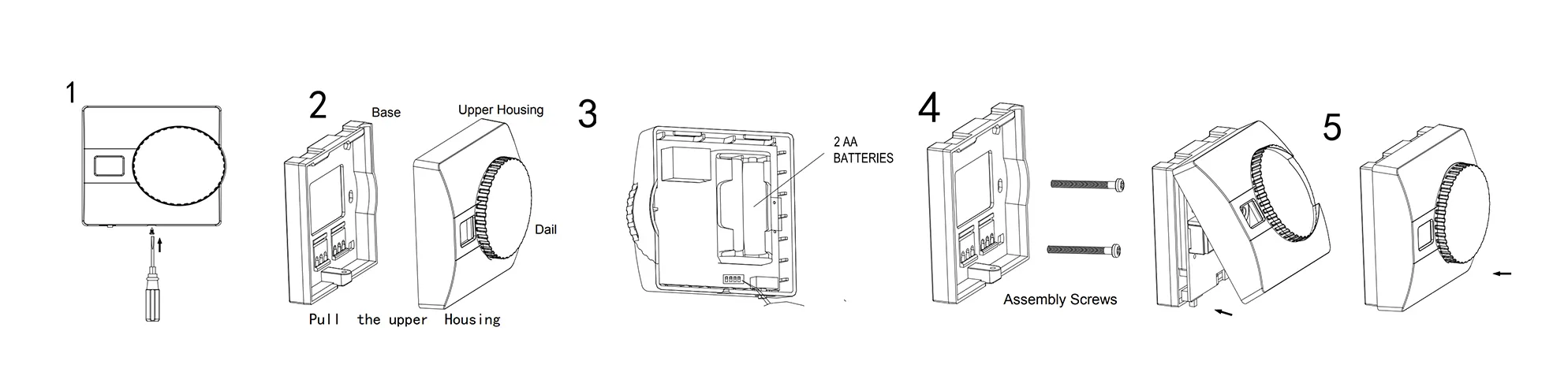

Installation guide for SAS816WHB manual rotary dial boiler thermostat

Product Application Scenarios

SAS816WHB is deployed in residential heating applications where simple, budget-friendly, non-programmable temperature control is required. It serves as the primary thermostat for homes with combi boilers, system boilers, or heat-only boilers — equally suitable for new builds, rental properties, and retrofit projects where wireless installation minimizes disruption. Rotary knob operation makes it particularly well-suited for elderly users, rental properties, and any scenario where intuitive, tool-free temperature adjustment is preferred over digital interfaces.
SAS816WHB manual rotary dial boiler thermostat for renovated living room heating applications
Retrofit Projects
SAS816WHB manual rotary dial boiler thermostat for bedroom heating applications
Guest rooms
SAS816WHB manual rotary dial boiler thermostat for rental property heating applications
Rental Property
