SAS920XWHB Wi-Fi smart boiler thermostat for residential home heating applications

SAS920XWHB Wi-Fi Boiler Thermostat

Key Functions

Smart Energy Saving – 7-Day programmable scheduling.

Direct APP Control – Wi-Fi enabled.

Universal Compatibility – Works with 99% of boilers.

Wireless Setup – Battery-powered, no wiring needed.

Flexible Placement – Wall-mountable or tabletop stand.

Unified Control – Single thermostat for whole-home heating.

Product Overview

SAS920XWHB Wi-Fi Boiler Thermostat is a smart programmable thermostat designed for residential boiler systems. As part of the Boiler Thermostats product family, it features Wi-Fi connectivity for direct APP control, 7-day programmable scheduling, and flexible wired/wireless installation options — making it an ideal choice for homeowners seeking remote access and energy savings.

Recommended reading: View Boiler Thermostats

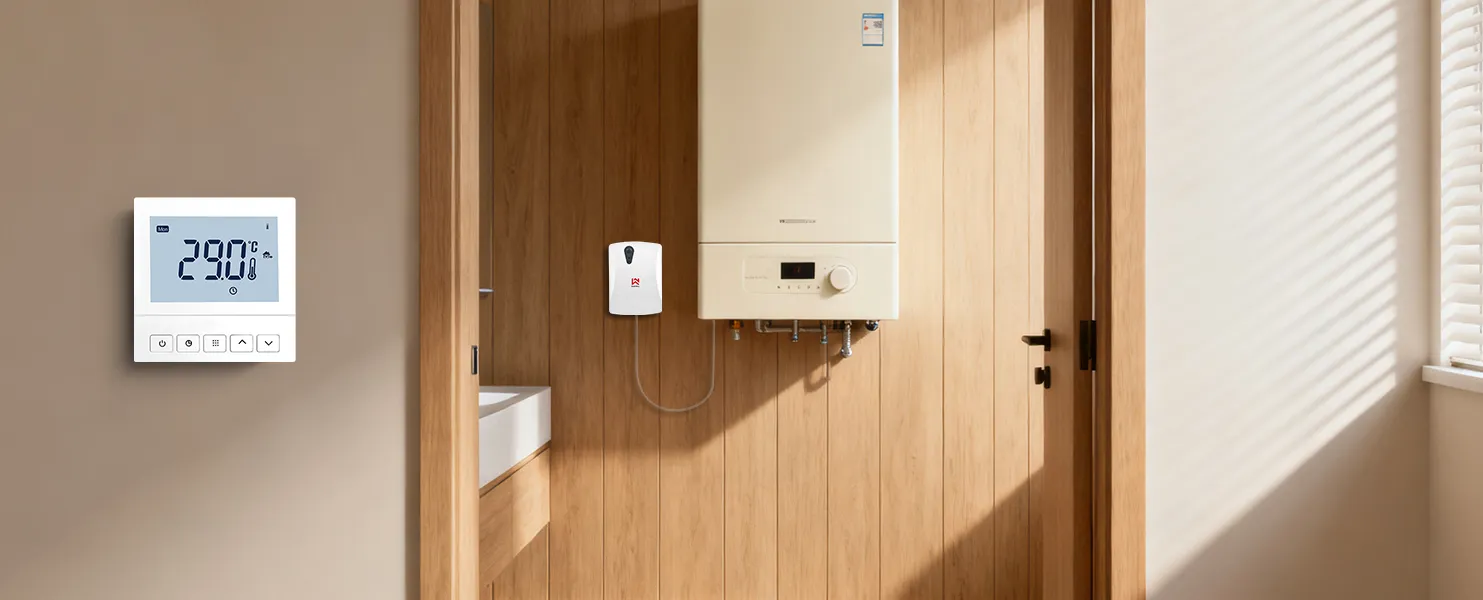

SAS920XWHB Wi-Fi smart boiler thermostat installed in bathroom boiler room scene

Product Features


Product Selector

Model No. Heat only Cool only Wired Wireless Programmable Relay Link with boiler External Sensor RF WIFI Power Manual
SAS920XWHB-7-S-RF







Battery download

Product Parameters

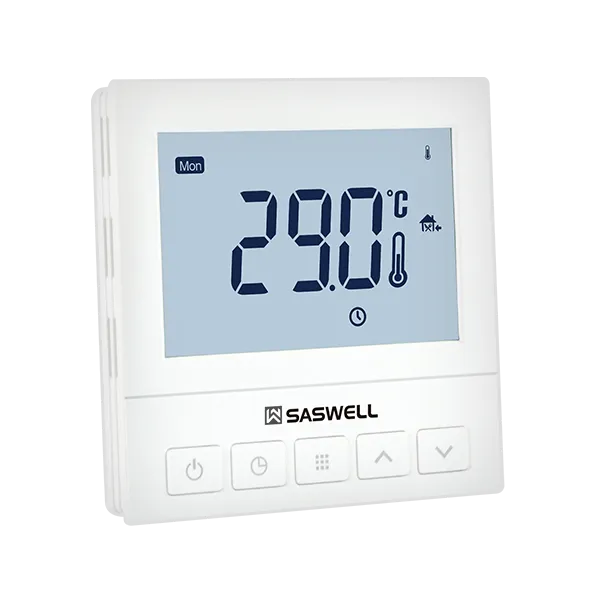

SAS920XWHB Wi-Fi smart boiler thermostat kit product front view
SAS920XWHB Wi-Fi Boiler Thermostat

SAS920XWHB

Power source: 2 AA batteries (LR6)

Display temperature range: 5℃~50℃

Setting temperature range: 5℃~40℃

Temperature accuracy: 0.1℃

Operation temperature: 0℃ ~ 50℃

Storage temperature: -10℃ ~ 60℃

Transport temperature: -20℃ ~ 65℃

Dimensions: 86mm X 86mm X24mm

Installation: Can be mounted directly on the wall or mounted on an EU standard junction box


SAS2010DE

Power source: 100-240VAC 50/60Hz

Wireless signal frequency: 868MHz(FSK)

Wireless signal effective range: 100m

Dimension: 113×83×30mm

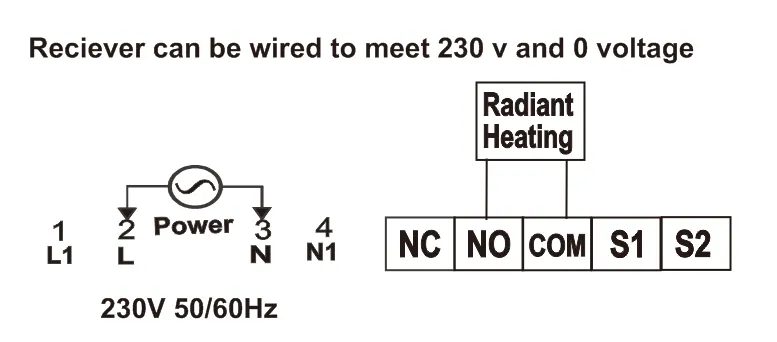

Wiring diagram for SAS920XWHB Wi-Fi smart boiler thermostat

Product Dimensions

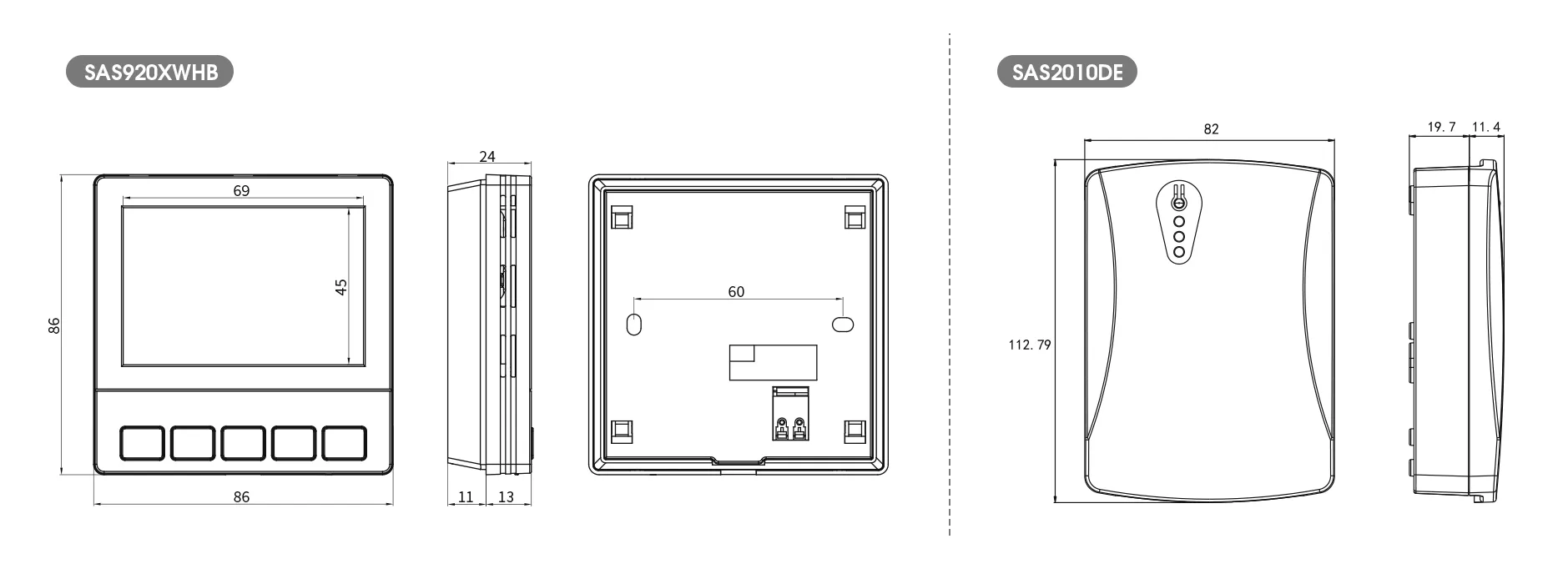

Product dimension drawing for SAS920XWHB Wi-Fi smart boiler thermostat

Product Installation

Installation guide for SAS920XWHB Wi-Fi smart boiler thermostat

Product Application Scenarios

SAS920XWHB is deployed in residential heating applications where Wi-Fi-enabled smart scheduling and remote access are required. It serves as the primary thermostat for homes with combi boilers, system boilers, or heat-only boilers — equally suitable for new builds requiring integrated smart control and for retrofit projects where wireless installation minimizes disruption to existing interiors. Direct APP access makes it particularly well-suited for vacation homes and rental properties where remote monitoring is essential.
SAS920XWHB Wi-Fi smart boiler thermostat for renovated living room heating applications
Retrofit Projects
SAS920XWHB Wi-Fi smart boiler thermostat for bedroom heating applications
Guest rooms
SAS920XWHB Wi-Fi smart boiler thermostat for rental property heating applications
Rental Property
