Maximizing SCOP: How Synchronized Source-End Control Prevents Heat Pump Short Cycling

Mar 18,2026

As heat pumps become the standard for European heating, many HEMS integrators face a silent enemy: Short Cycling. This occurs when a heat pump starts and stops too frequently—often 3 to 5 times more than intended, leading to a drastic drop in the SCOP (Seasonal Coefficient of Performance) and premature wear on the compressor.

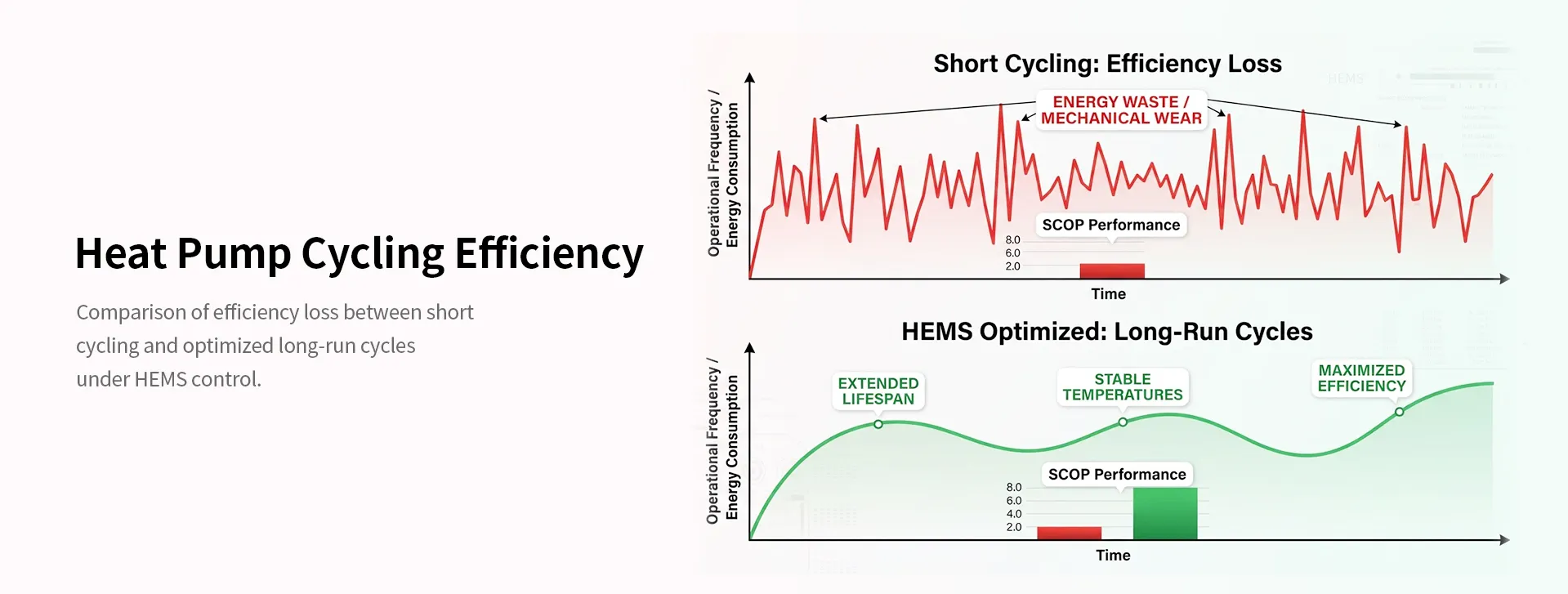

Chart comparing heat pump efficiency loss due to short cycling vs optimized long-run cycles in HEMS

The Root Cause: The Sync Gap

Why does this happen in "smart" homes? The problem lies in the Sync Gap between the "source" (the heat pump) and the "terminals" (TRVs and thermostats). In a traditional setup, smart TRVs might close as rooms reach temperature.

If the heat pump isn't aware that the flow is restricted, it continues to pump heat into a dead-end hydronic circuit. Pressure builds, the heat exchanger overheats, and the heat pump’s internal safety logic triggers a shutdown. This "yo-yo" effect destroys efficiency.

The Solution: Synchronized Actuation

Our HEMS-ready solution eliminates the Sync Gap through a Unified Actuation Logic. Instead of the source and terminals operating as isolated silos, our Master Controller acts as the intelligent "Conductor."

Dynamic Flow Awareness: The system monitors the real-time position of every smart TRV. The heat pump is only commanded to run when there is sufficient terminal demand and open hydronic paths.

Intelligent Hydronic Balancing: By coordinating pump speed and valve lift, the system maintains optimal flow rates, ensuring the heat pump operates within its most efficient modulation range.

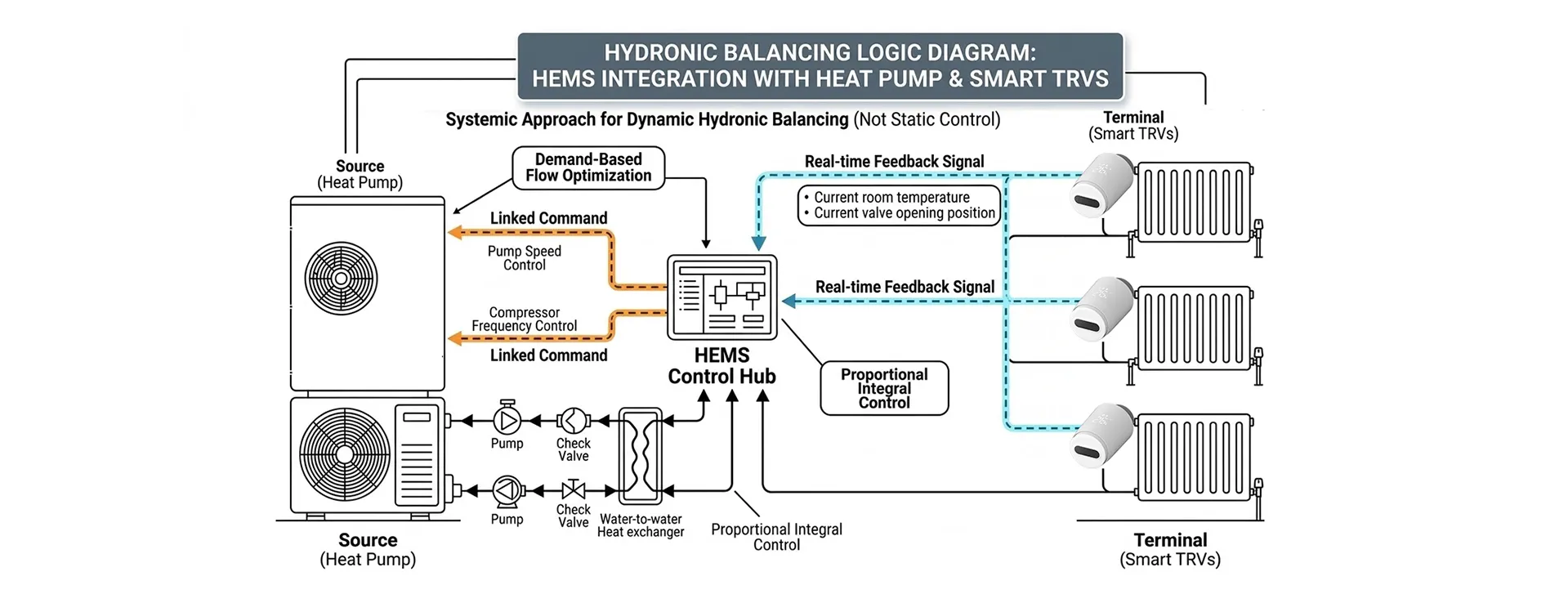

Hydronic balancing logic diagram for HEMS integration with heat pump and smart TRVs

Extending Compressor Lifespan

Every start-up cycle puts mechanical stress on the compressor. By reducing unnecessary cycles through source-end synchronization, our solution can extend the operational life of a heat pump by several years.

For VPP and HEMS providers, this means significantly lower maintenance costs and higher customer satisfaction.

Conclusion: Efficiency Through Synergy

Maximizing Heat Pump SCOP is not just about choosing the best hardware—it’s about how that hardware communicates. True Hydronic Balancing and Short Cycling Prevention require a system that sees the whole picture.
