SAS2024FHL Fil Pilote Electric Heating Thermostat

Get a Quote

Key Functions

Fil Pilote Compatibilit — Supports Centralized Mode Control

Energy Monitoring — Real-Time Power Consumption

Grid Response Read — Ecowatt Compatible

Heavy-Duty Performance — 16A Load Supports Systems up to 3500W

Enhanced Comfort — Dual Sensor Control for Room & Floor

On-Time Heating — Intelligent Recovery Technology

Front view of SAS2024FHL Fil Pilote electric heating thermostat

Left side view of SAS2024FHL Fil Pilote electric heating thermosta

Right side view of SAS2024FHL Fil Pilote electric heating thermostat

Home Electric Heater Thermostats SAS2024FHL Fil Pilote Electric Heating Thermostat

Product Overview

The SAS2024FHL Fil Pilote Thermostat delivers centralized FP wired mode control (Comfort/Eco/Anti‑frost/Off) and meets EN12098‑3:2022 standards. It integrates Ecowatt grid‑response for automatic peak‑time savings, real‑time energy monitoring for ESG reporting, and is eligible for French CEE subsidies—reducing retrofit costs for contractors and owners. As a Fil Pilote‑enabled member of the FHL Series, it supports up to 3500W loads with dual‑sensor precision for residential and commercial projects.

Recommended reading: View FHL Series Electric Heating Thermostats

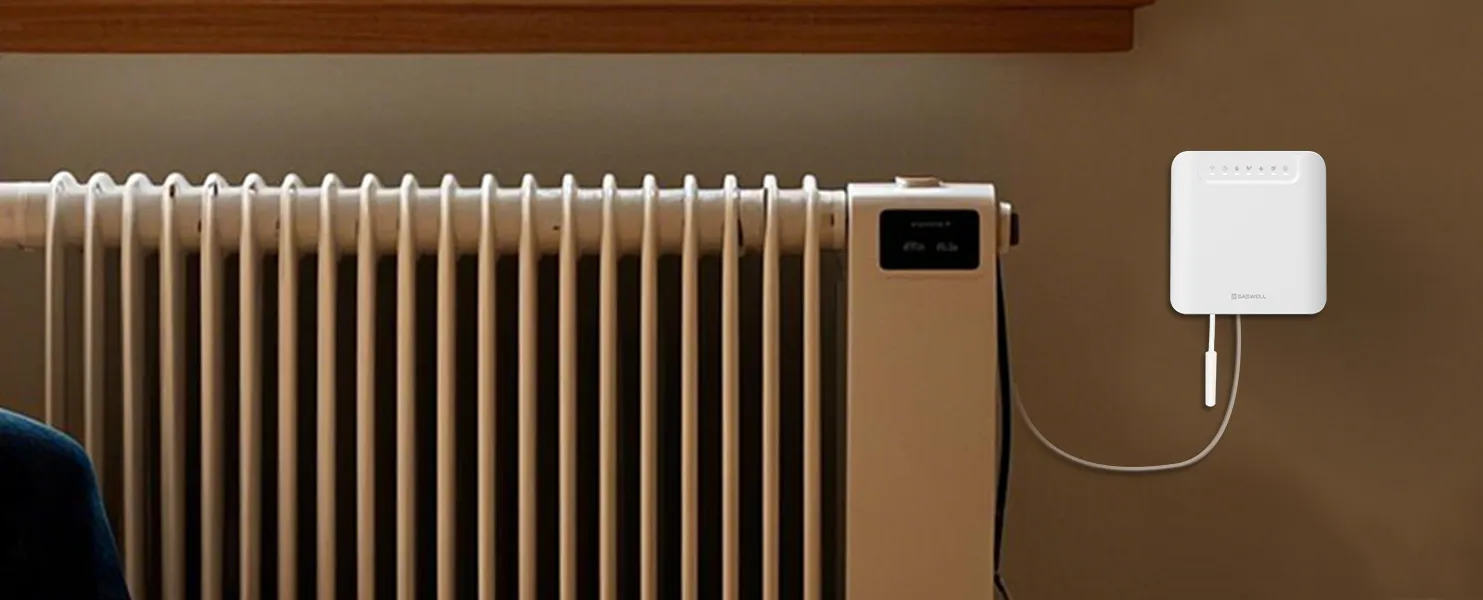

SAS2024FHL Fil Pilote electric heating thermostat for electric heating systems

Product Features

Supports Centralized Mode Control

FP wired protocol (Comfort/Eco/Anti‑frost/Off) receives remote mode commands from a central controller—eliminates manual adjustment across multiple zones. Fully compliant with EN12098‑3:2022.
Real-Time Power Consumption

Built‑in power meter tracks live usage and historical data—generates consumption reports that support ESG reporting, helping building owners demonstrate environmental compliance.
Ecowatt Compatible

Synchronizes with French Ecowatt grid signals—automatically switches to Eco mode during peak load alerts, reducing grid strain and lowering energy bills.

16A Load Supports Systems up to 3500W

16A relay powers systems up to 3500W—one SKU covers residential zones and commercial spaces, simplifying inventory and specification.
Dual Sensor Control for Room & Floor

Dual sensors monitor air and floor temperature simultaneously—prevents floor overheating while maintaining comfortable ambient warmth.
Intelligent Recovery Technology

Learns system response time and activates heating in advance—ensures set temperature is reached exactly when scheduled, avoiding cold‑start discomfort.

Product Selector

Model No.	Programmable	Ecowatt	ZIGBEE 2.0	APP	Power	Manual
SAS2024FHL-ZT5	√	√	√	√	220VAC	download

Product Parameters

SAS2024FHL Fil Pilote electric heating thermostat product front view

Power source: 100-240VAC 50/60Hz

Temperature display range(APP): 0°C-70°C

Temperature setting accuracy(App): ±0.5°C

Temperature setting range(APP): 5°C-40°C (In Switch Mode)

Temperature display accuracy(APP): 0.1°C

Wireless Protocol Communication : Zigbee(Tuya)

Radio Frequency Range: 2.4GHz

Protection Level: IP21

Compatibility: Compatible with all class Il electric radiators

Shipping & storage temperature: -10°C ~70°C

Working environment: -10°C~60°C, 10%~95% RH Non- condensation

Wireless transmit range: Open air in 30M

External sensor type: NTC 100K

Wiring diagram for SAS2024FHL Fil Pilote electric heating thermostat

Product Application Scenarios

The SAS2024FHL is purpose‑built for French and European markets where Fil Pilote and Ecowatt are standard requirements. Ideal for social housing retrofits, multi‑tenant residential buildings, hotels, and educational facilities. CEE subsidy eligibilit makes it a cost‑effective choice for large‑scale projects. Fully compatible with Class II electric radiators and underfloor heating systems. Delivers actionable energy data for ESG‑focused property portfolios.
