T38FHL Gang Frame Electric Heating Thermostat

Get a Quote

Key Functions

Gang Frame Compatibility — Fits Schneider, ABB & Legrand Systems

Flexible Heating Control — 7-Day Programmable Scheduling

Enhanced Electrical Safety — Double-Pole Relay Isolation

Heavy-Duty Performance — 16A Load Supports Systems up to 3500W

Enhanced Comfort — Dual Sensor Control for Room & Floor

On-Time Heating — Intelligent Recovery Technology

Front view of T38FHL programmable floor heating thermostat

Right side view of T38FHL programmable floor heating thermostat

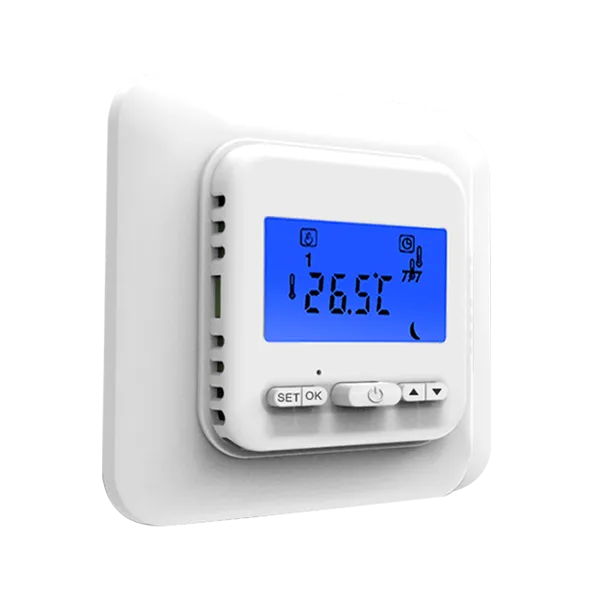

Left side view of T38FHL programmable floor heating thermostat

Home Electric Heater Thermostats T38FHL Gang Frame Electric Heating Thermostat

Product Overview

The T38FHL Gang Frame Thermostat brings automated temperature control to existing Schneider, ABB, and Legrand gang frames—with 7‑day scheduling that adjusts itself to daily routines, so users don't have to. As a programmable member of the FHL Series, it delivers double‑pole relay safety, 3500W capacity, and dual‑sensor accuracy for residential and commercial applications.

Recommended reading: View FHL Series Electric Heating Thermostats

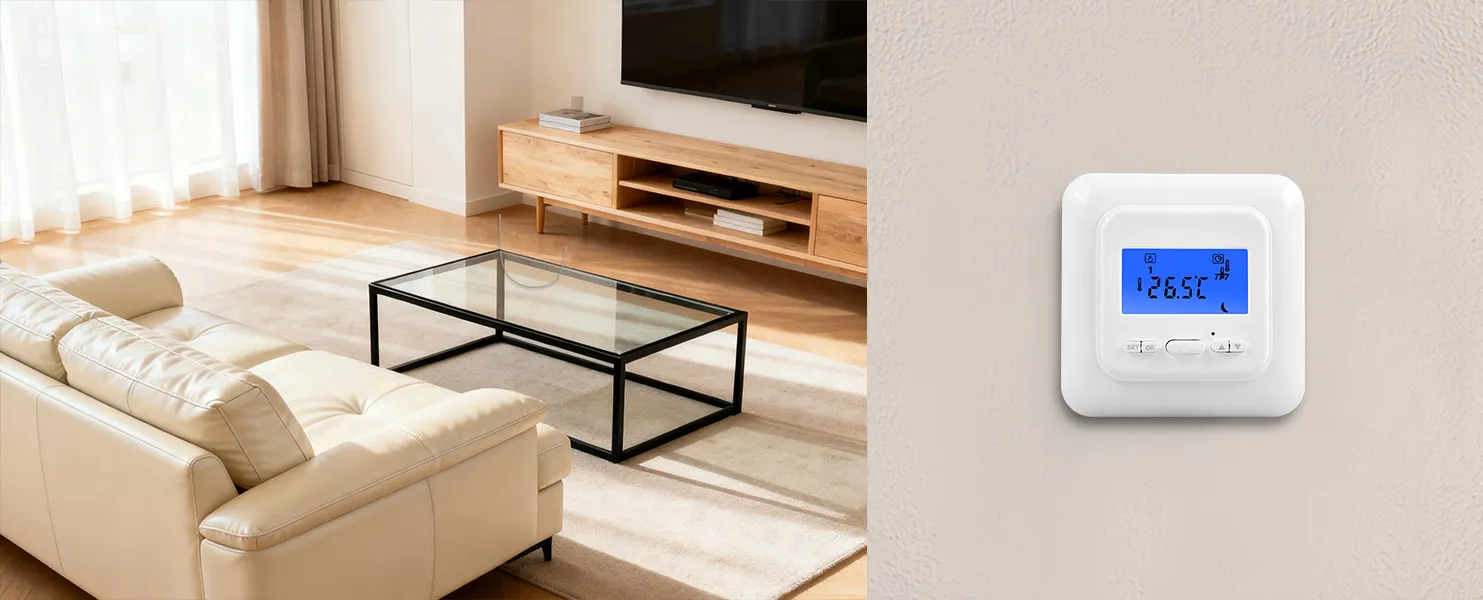

T38FHL programmable thermostat for electric floor heating systems

Product Features

Fits Schneider, ABB & Legrand Systems

Direct gang‑frame mounting onto Schneider, ABB, and Legrand systems—preserves existing wall finishes and avoids costly panel replacements in renovation projects.
7-Day Programmable Scheduling

Set up to 6 time segments per day with independent temperature setpoints—tailor heating to weekly routines for offices, hotels, and homes, reducing runtime without sacrificing comfort.
Double-Pole Relay Isolation

Double‑pole relay simultaneously disconnects live and neutral conductors—delivers complete electrical isolation for safe handling during installation and service.

16A Load Supports Systems up to 3500W

16A relay handles systems up to 3500W—reduces SKU complexity across residential and light‑commercial heating installations.
Dual Sensor Control for Room & Floor

Built‑in air sensor plus optional floor probe work in tandem—maintains room comfort while guarding against floor surface overheating.
Intelligent Recovery Technology

Continuously learns system warm‑up patterns and activates heating ahead of scheduled times—ensures comfort temperature is ready at the start of each programmed segment.

Product Selector

Model No.

Heating

Cooling

Wireless

Humidity

Programmable

Relay

Window detection

External Sensor

Modbus

WIFI

Power

Manual

T38FHL-7

√

220VAC

download

Product Parameters

T38FHL programmable floor heating thermostat product front view

Power source： 100～240VAC 50/60HZ

Relay contact： 250VAC 16A

Room temperature setting range： 5℃ (41℉)～35℃ (95℉)

Floor temperature setting range： 5℃ (41℉)～45℃ (113℉)

Ambient temperature-operation： 0℃ (32℉)～50℃ (122℉)

Ambient temperature-transport： -10℃ (14℉)～60℃ (140℉)

Accuracy：±1℉ or ±0.5℃

Dimensions： 86mm X 86mm X 16mm

Color： White

Wiring diagram for T38FHL gang frame programmable electric heating thermostat

Product Application Scenarios

The T38FHL is built for hotels, offices, rental apartments, and residential renovations where weekly routines are predictable and programmable automation delivers measurable energy savings. Its gang‑frame compatibility makes it a natural choice for projects that upgrade heating controls without disturbing interior design. Integrates with floor sensors and underfloor heating systems up to 3500W. A practical upgrade that combines schedule‑based efficiency with aesthetic continuity.
