SAS965FHL smart WiFi electric heating thermostat for villa residential scene

SAS965FHL 4-Inch Color Touchscreen Smart Electric Heating Thermostat

Get a Quote

Key Functions

Premium User Experience — 4-Inch Color Touchscreen

Energy Insights — Real-Time Dashboard & Consumption Reports

Faster Product Launch — UI Customization in as Little as 7 Days

Remote Maintenance Ready — OTA Firmware Updates

Lower Energy Costs — 7-Day Programmable Scheduling

Faster Installation — Tool-Free Snap-Fit Design

Front view of SAS965FHL 4inch smart WiFi electric heating thermostat

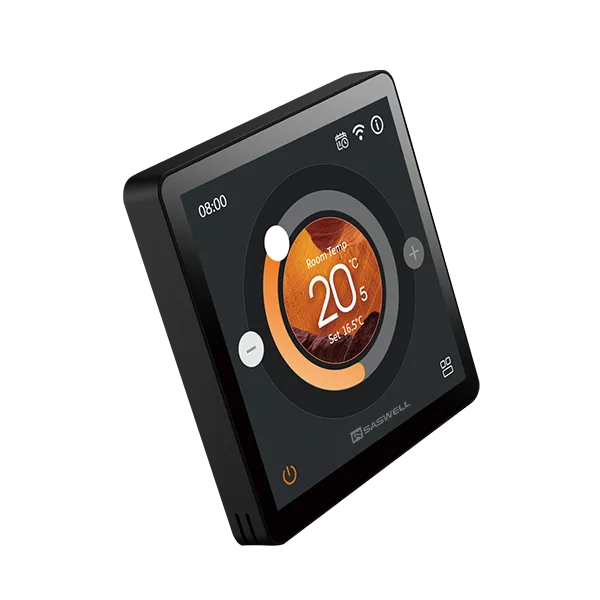

Left side view of SAS965FHL 4inch smart WiFi electric heating thermostat

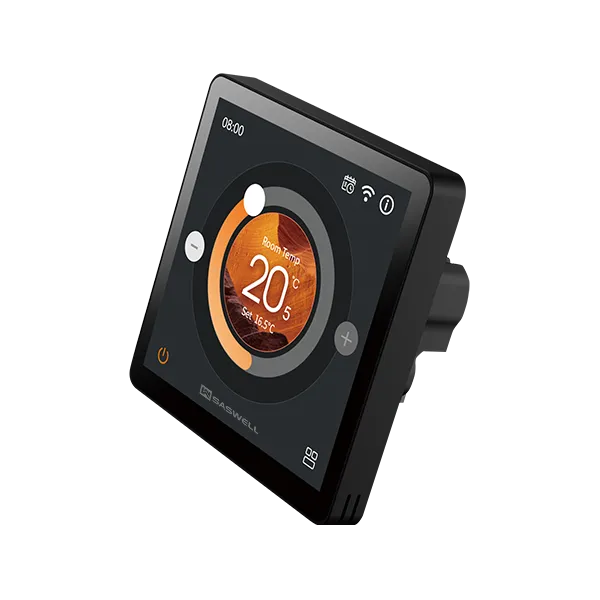

Right side view of SAS965FHL 4inch smart WiFi electric heating thermostat

Home Electric Heater Thermostats SAS965FHL 4-Inch Color Touchscreen Smart Electric Heating Thermostat

Product Overview

The SAS965FHL 4-Inch Color Touchscreen Smart Electric Heating Thermostat delivers premium UX, smart control & energy management. As a key member of the FHL Series Electric Heating Thermostats, it integrates with our ecosystem, providing unified temperature, monitoring & remote access for residential & light commercial use.

Recommended reading: View FHL Series Electric Heating Thermostats

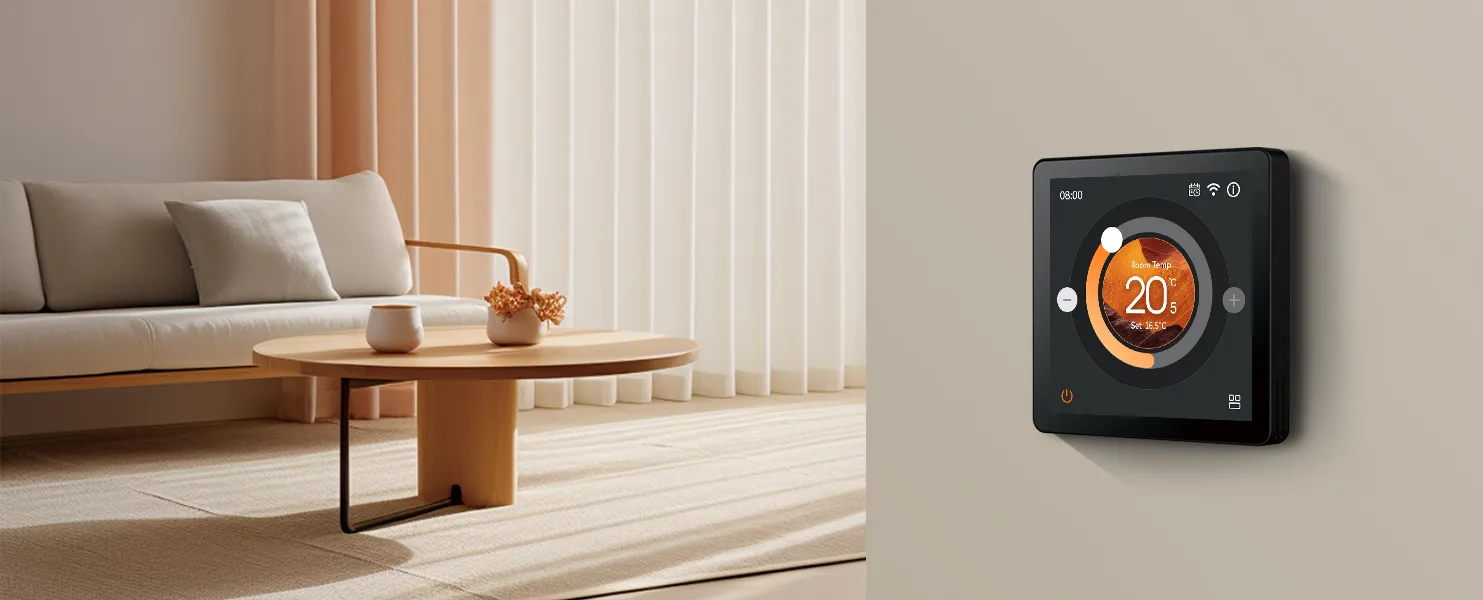

SAS965FHL smart WiFi thermostat for electric floor heating systems

Product Features

4-Inch Color Touchscreen

The 4‑inch high‑definition color touchscreen delivers a smooth, smartphone‑like user interface, helping your projects stand out in competitive bids.
Real-Time Dashboard & Consumption Reports

Real‑time energy monitoring with ±1% precision sensors and automated usage reports help end‑users identify savings opportunities, making your solution more attractive to eco‑conscious clients.
UI Customization in as Little as 7 Days

Replace the entire UI with your brand colors, logo, and button layout in 7 days – without hardware redesign. Respond quickly to project deadlines.

OTA Firmware Updates

Secure over‑the‑air updates enable feature enhancements and security patches without site visits, reducing your after‑sales service costs and keeping clients satisfied long‑term.
7-Day Programmable Scheduling

Flexible 7‑day scheduling with adaptive pre‑heating cuts unnecessary runtime, delivering measurable energy savings that translate into compelling ROI for your customers.
Tool-Free Snap-Fit Design

Tool‑free snap‑fit mounting and push‑in terminals enable rapid installation, lowering labor costs and reducing on‑site training requirements for your team.

Product Selector

Model No.

Heat/cool

Heat only

Pipe

Speed fan

Programmable

Window card

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS965WHL-7-WIFI(TY)

√

220VAC

download

Product Parameters

SAS965FHL 4u001einch smart WiFi electric heating thermostat product front view

Power source: AC100~240V，50/60Hz

Current temperature display range: 0℃~50℃

Floor temperature display range: 0℃~70℃ (NTC external sensor measuring range)

Current temperature setting range: 5℃~70℃

External sensor control range/Floor temperature protection range: 5℃~70℃

Accuracy: 0.1℃

External sensor: NTC 10K / NTC 100K

Storage temperature range: -20℃~70℃; 5~95% (no condensation)

Network frequency: 2.4GHz WIFI

Screen: 4-inch IPS screen, capacitive touch screen (71.86* 67.96mm, 480*480)

Dimensions: 86x86x12mm

IP Rating: IP21

Wiring diagram for SAS965FHL 4u001einch smart WiFi electric heating thermosta

Product Dimensions

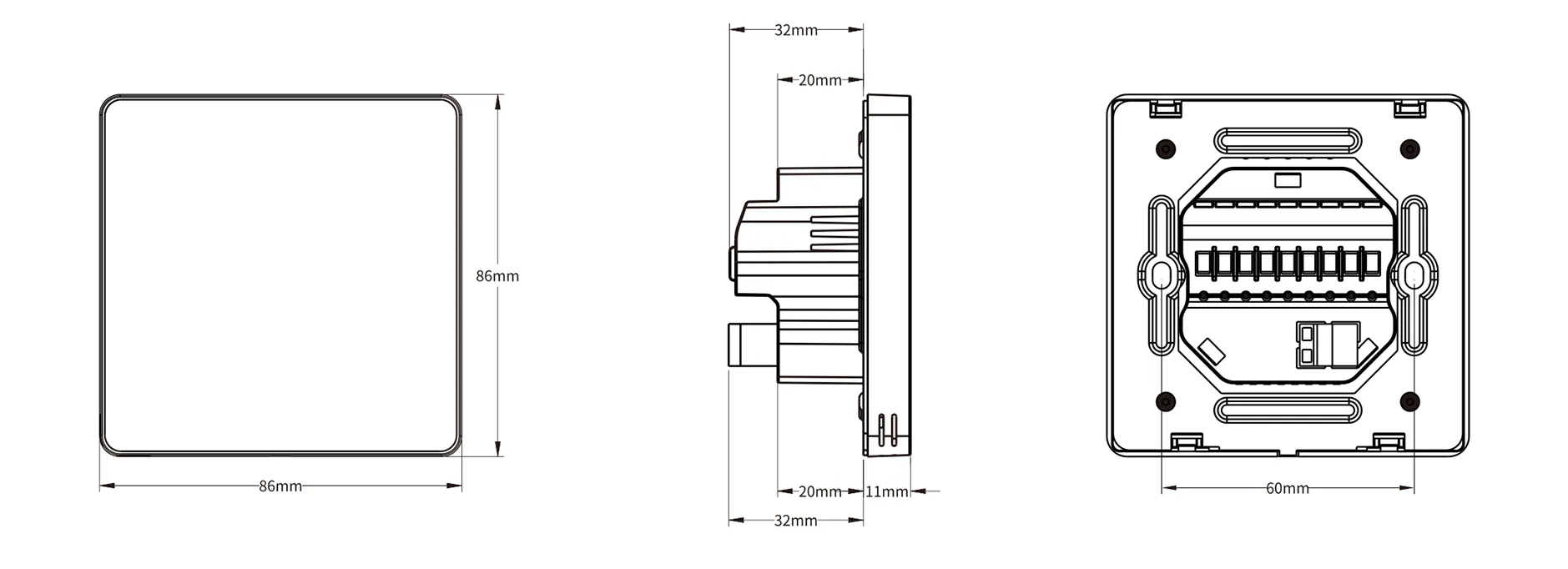

Product dimension drawing for SAS965FHL 4-inch color touchscreen smart electric heating thermostat

Product Installation

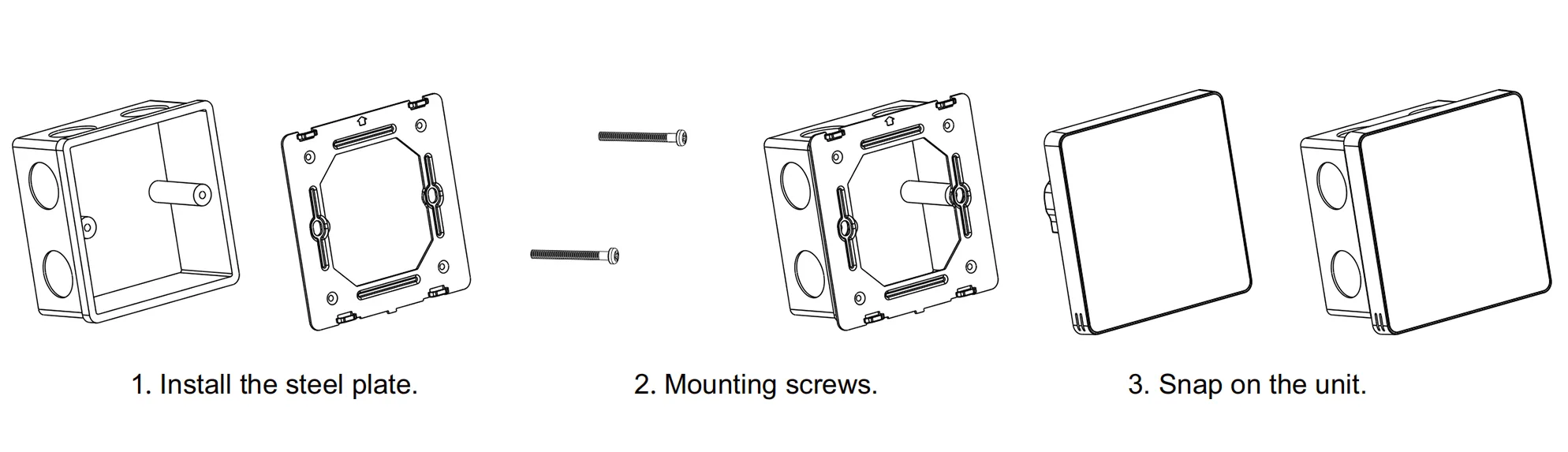

Installation guide for SAS965FHL 4-inch color touchscreen smart electric heating thermostat

Product Application Scenarios

The SAS965FHL is deployed in residential, commercial, educational, and hospitality settings, integrating with sensors and building management platforms for coordinated energy‑efficient control. Supports multi‑zone comfort, centralised monitoring with local autonomy, and OTA updates for distributed sites. Compatible with 2/3‑wire electric heating, underfloor, and radiator systems for retrofit or new builds.
