SAS968FHL GFCI Electric Heating Thermostat

Get a Quote

Key Functions

Built-In GFCI Protection — Class A 5mA Safety Protection

Enhanced Electrical Safety — Double-Pole Relay Isolation

Heavy-Duty Performance — 16A Load Supports Systems up to 3500W

Enhanced Comfort — Dual Sensor Control for Room & Floor

On-Time Heating — Intelligent Recovery Technology

Energy Saving — Open Window Detection

SAS968FHL GFCI electric heating thermostat product front view

Left side view of SAS968FHL GFCI electric heating thermostat

Right side view of SAS968FHL GFCI electric heating thermostat

Home Electric Heater Thermostats SAS968FHL GFCI Electric Heating Thermostat

Product Overview

The SAS968FHL GFCI Thermostat integrates Class A 5mA ground-fault protection directly into the heating control circuit—eliminating the need for external GFCI breakers and simplifying code‑compliant installations. As a safety‑first member of the FHL Series, it delivers double‑pole relay isolation, 3500W load capacity, dual‑sensor precision, and open‑window detection for residential and commercial projects.

Recommended reading: View FHL Series Electric Heating Thermostats

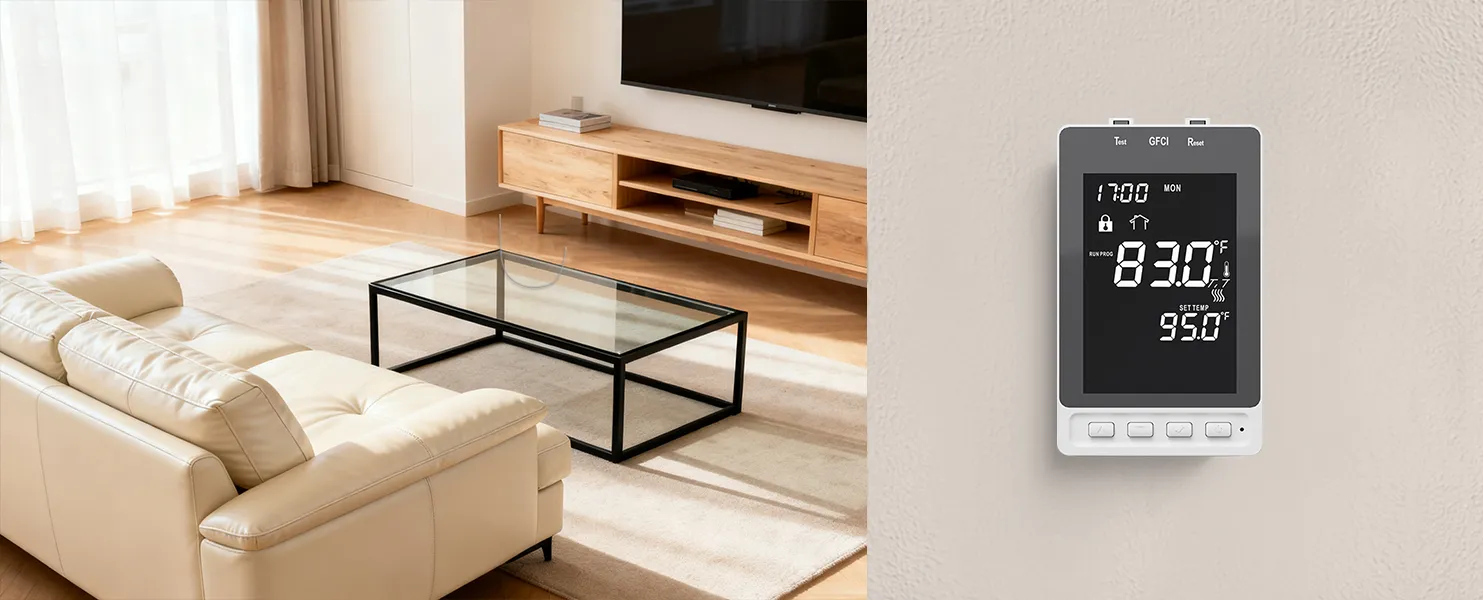

SAS968FHL GFCI electric heating thermostat for electric heating systems

Product Features

Class A 5mA Safety Protection

Built‑in Class A GFCI detects ground‑fault currents as low as 5mA and interrupts power within 25ms—protects users from electric shock and meets UL 943 requirements without external breakers.
Double-Pole Relay Isolation

Double‑pole relay disconnects both live and neutral conductors simultaneously—ensures complete circuit isolation for safe servicing and troubleshooting.
16A Load Supports Systems up to 3500W

16A relay drives systems up to 3500W—handles high‑power loads with a single SKU across residential and light‑commercial applications.

Dual Sensor Control for Room & Floor

Dual sensors monitor ambient air and floor surface simultaneously—maintains room comfort while preventing floor material stress from excessive heat.
Intelligent Recovery Technology

Learns system heating response and activates early—ensures programmed temperatures are reached precisely at scheduled times, eliminating cold starts.
Open Window Detection

Detects sudden temperature drops from open windows and automatically suspends heating—stops energy waste the moment it occurs.

Product Selector

Model No.

Heat

Cool only

GFCI

Child lock

Programmable

Anti-freezing

Room card

External Sensor

Modbus RTU

WIFI

Power

Manual

SAS968FHL-7

√

120/240VAC

download

Product Parameters

Operation voltage：120/240VAC 60HZ

Maximum Load：240VAC 16A

Room temperature limit：5°C (41°F) ~ 35°C (95°F)

Floor temperature limit：0°C (32°F) ~ 40°C (104°F)

Ambient temperature – operation：0°C (32°F) ~ 55°C (122°F)

Ambient temperature – storage：-10°C (14°F) ~ 60°C (140°F)

Accuracy：±1°F or ±0.5°C

Dimensions：120(L) x 75(W) x 54.2(H) (mm)

IP class：IP20

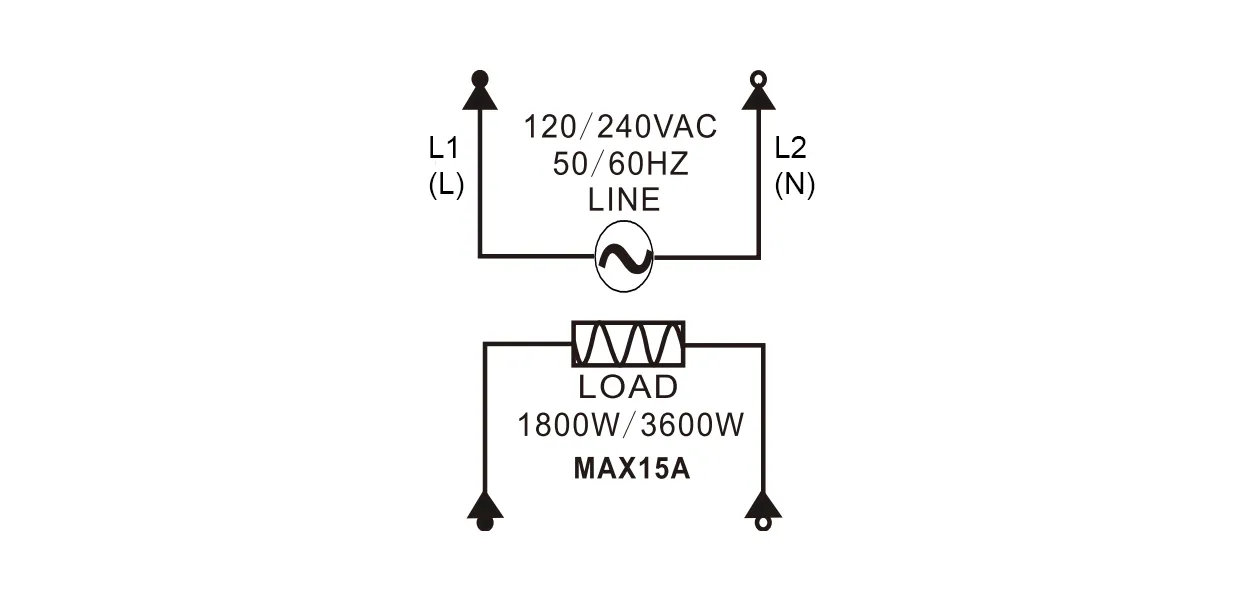

Wiring diagram for SAS968FHL GFCI electric heating thermostat

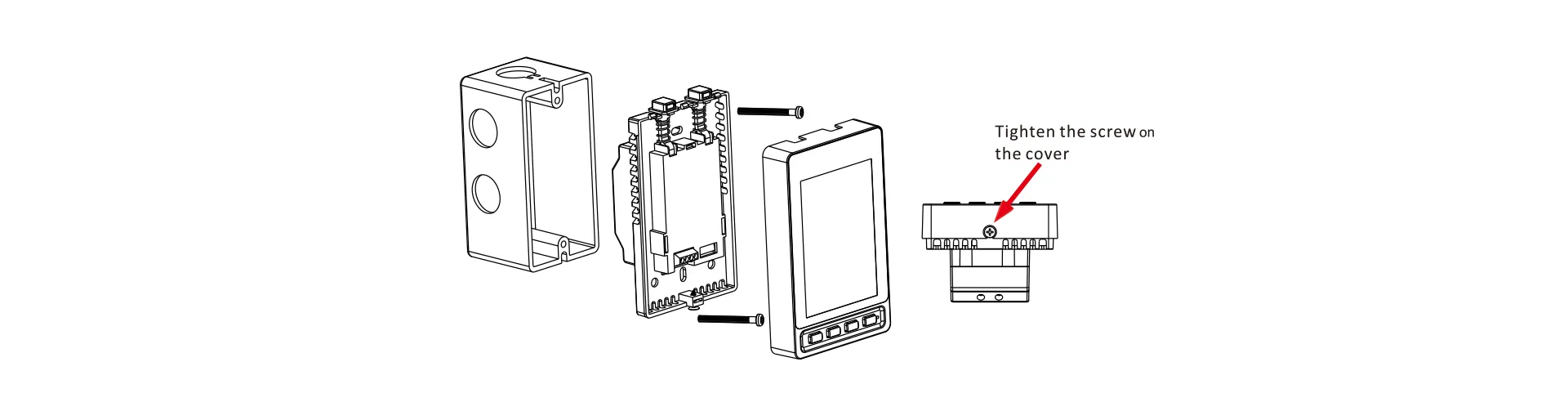

Installation

Product Application Scenarios

The SAS968FHL is purpose‑built for bathrooms, kitchens, basements, and other wet or high‑humidity spaces where GFCI protection is required by building codes. It also serves multi‑tenant residential buildings, hotels, and commercial restrooms where occupant safety is paramount. Integrates with floor sensors and underfloor heating systems up to 3500W. A code‑ready solution that combines safety with intelligent comfort control.
